8440-1706B 同步器模块 电压调节器模块

【产品详情】

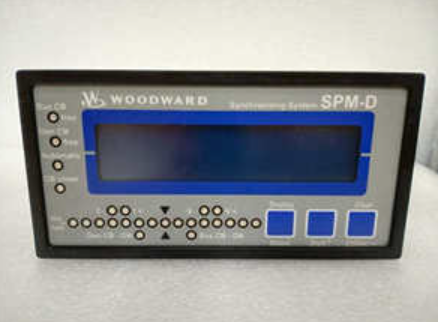

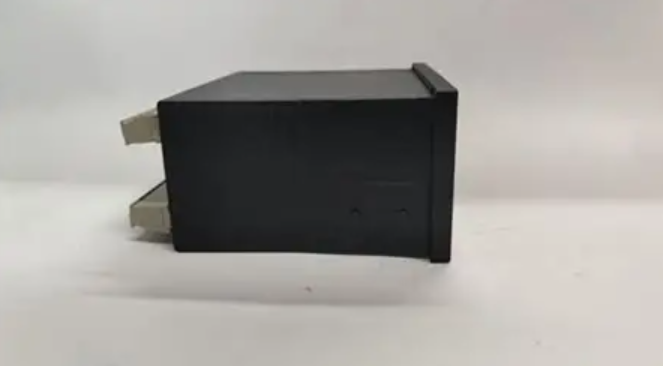

 8440-1706B该装置是伍德沃德公司的同步器模块之一;伍德沃德公司负责开发和生产从速度和负载控制到电压调节器模块的各种工业发电机模块。该装置是其 SPM-D11 同步器类别的一部分，编号为 8440-1706B。8440-1706B型号能够为机组提供断路器、功率因数和负载因数控制的组合同步能力，以及同步负载分配和发电机保护选项。8440-1706 装置还为操作员提供了在发生发电机电压匹配时实施的选择;也可以进行相位匹配，也可以启用滑移频率同步。 8440-1706B的电源并联操作功能包括多种功能。有实际功率控制，真RMS功率计算，以及软卸载功能，以及通过调整参数进行功率因数控制和设定值。该装置还配备了隔离操作控制功能和死总线操作功能。 8440-1706B 采用标准尺寸设计，尺寸为 144 毫米 x 72 毫米 x 122 毫米。它至少重 800 克，或 1.76 磅。集成的 LCD 显示屏具有两行显示屏，可为用户提供系统诊断和警报信息。

8440-1706B 同步器模块 电压调节器模块

【英文介绍】

 8440-1706B This device is one of Woodward's synchronizer modules; Woodward develops and manufactures industrial generator modules ranging from speed and load control to voltage regulator modules. The device is part of its SPM-D11 synchronizer class, numbered 8440-1706B. The model 8440-1706B provides units with combined synchronization capabilities for circuit breakers, power factor and load factor control, as well as synchronous load distribution and generator protection options. The 8440-1706 unit also provides the operator with options to implement in the event of generator voltage matching; Phase matching can also be performed, and slip frequency synchronization can also be enabled. The power parallel operation of the 8440-1706B includes a variety of functions. There are actual power control, true RMS power calculation, and soft unload functions, as well as power factor control and set values by adjusting parameters. The device is also equipped with isolated operation control function and dead bus operation function. The 8440-1706B has a standard size design of 144 mm x 72 mm x 122 mm. It weighs at least 800 grams, or 1.76 pounds. The integrated LCD display features a two-line display that provides the user with system diagnostics and alerts.

8440-1706B 同步器模块 电压调节器模块
