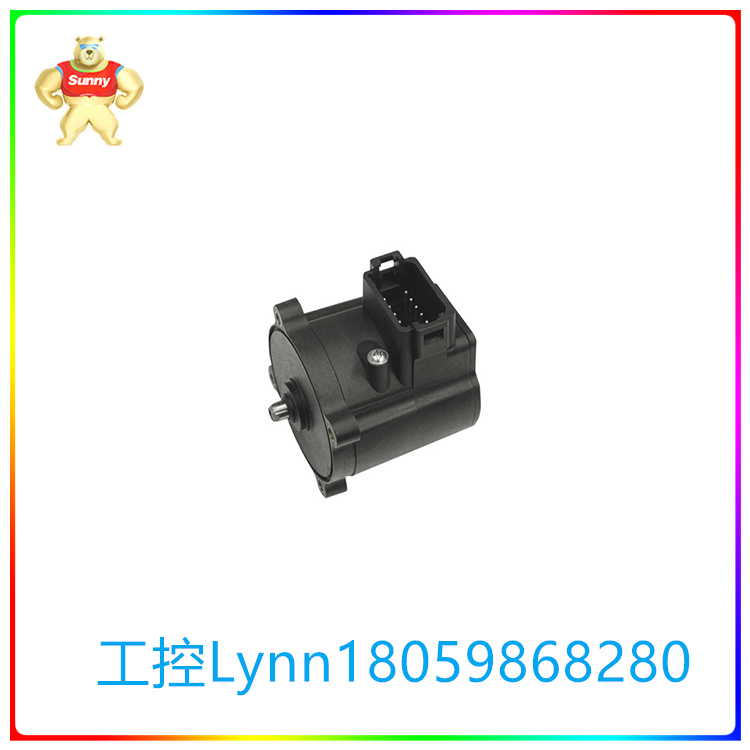

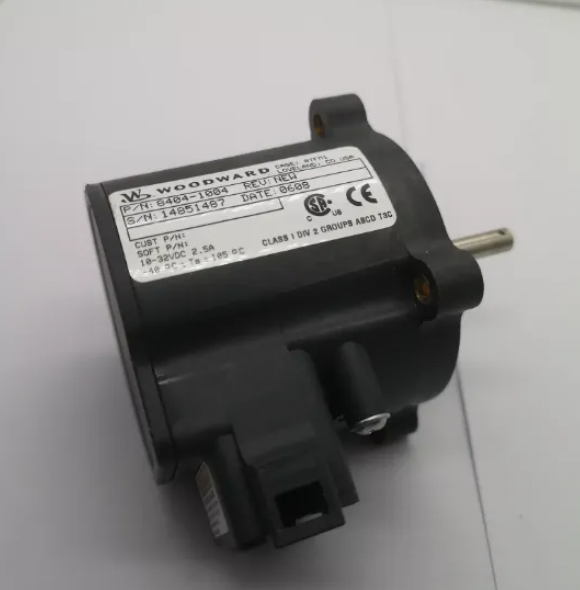

8404-1001 L系列执行器 标准CVR

【产品详情】

“伍德沃德 L 系列将 L 系列电动执行器与集成速度控制软件相结合，以控制柴油或燃气发动机的速度。L系列是一种基于微处理器的控制装置，集成在执行器中，形成一个单一的集成封装。

伍德沃德 L 系列集成式发动机控制系统是第一款在如此紧凑的套件中提供如此强大功能的发动机转速控制系统。L系列控制器

系统基于微处理器，可以很容易地进行编程，以匹配您生产的每台发动机的运行参数。L 系列通过软件可选的速度设定点、动态、燃油限制和启动/停止行为提供速度控制。

L系列控制系统采用传统的外部连杆支架安装，有多种机械配置可供选择，包括一种集成在旋转式柴油泵中，另一种与节气门体或节气门体和混合器集成（产品规格03222）。外部安装的系统可以配置为顺时针或逆时针（标准）轴旋转以增加燃油。

L 系列控制器的高效扭矩电机在 60° 的标称行程范围内提供 0.34 N·m （0.25 lb-ft） 的标称行程，以操作燃油或空气控制设备（请参阅

整个产品温度范围内的扭矩性能规格）。

L 系列控制器具有以下特点：

- 最先进的速度传感和控制算法

- 全面的诊断，便于故障排除

- 生产线末端可编程性简化了库存

- 涡轮增压柴油发动机的可选瞬态烟雾限制器

- 板载客户可配置的辅助输入，以匹配您的特定应用

- Stanadyne DB系列或Delphi DP200和DP210喷油泵的可选安装套件提供了集成的控制解决方案

- 使用空闲/额定 1/额定 2、升高/降低和外部模拟设置调整速度设定值

- 可通过发动机转速、离散输入甚至外部信号设置双组速度动态

8404-1001 L系列执行器 标准CVR

【英文介绍】

"The Woodward L Series combines an L Series electric actuator with integrated speed control software to control the speed of a diesel or gas engine. The L Series is a microprocessor-based control unit that is integrated into the actuator to form a single integrated package.

The Woodward L Series Integrated Engine Control System is the first engine speed control system to offer such power in such a compact package. L Series controller

The system is based on a microprocessor and can be easily programmed to match the operating parameters of each engine you produce. The L Series provides speed control through software-selectable speed set points, dynamics, fuel limits, and start/stop behavior.

The L Series control system is mounted with a traditional external link bracket and is available in a variety of mechanical configurations, including one integrated in the rotary diesel pump and another integrated with the throttle body or throttle body and mixer (product specification 03222). Externally mounted systems can be configured to rotate clockwise or counterclockwise (standard) axes to increase fuel.

The efficient torque motors of the L-Series controllers provide a nominal stroke of 0.34 N·m (0.25 lb-ft) over a nominal stroke range of 60° to operate fuel or air control equipment (see

Torque performance specifications across the entire product temperature range).

L-series controllers have the following characteristics:

- State-of-the-art speed sensing and control algorithms

- Comprehensive diagnostics for easy troubleshooting

- End-line programmability simplifies inventory

- Optional transient smoke limiter for turbocharged diesel engines

- On-board customer configurable auxiliary inputs to match your specific application

The Stanadyne DB Series or the optional installation kit for Delphi DP200 and DP210 fuel injection pumps provide an integrated control solution

- Adjust speed setpoints using idle/rated 1/ rated 2, raise/lower, and external analog Settings

- Two-set speed dynamics can be set through engine speed, discrete inputs, or even external signals

8404-1001 L系列执行器 标准CVR
