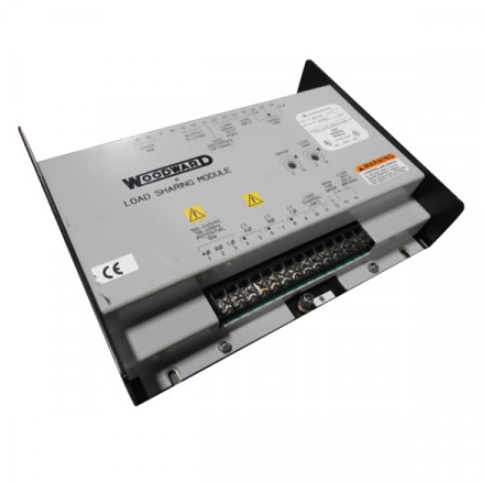

Woodward 9907-252 负载共享模块由电源进气口供电

【产品详情】

 9907-252 负载共享模块由电源进气口供电，该进气口标称为 24 伏直流电，但范围至少为 18 至 32 V/DC。本机的输入是三相 PT 和 CT 输入。PT 输入范围为 95 至 130 V/AC，线对线。CT 输入在满载时需要 3 到 7 A Rms 的电流。

该装置能够处理的调整包括压降和负载增益。Dropop 能够在空载和满载之间降低输出。当两个或多个发电机并联时，负载增益调整会改变单个发电机上的负载。9907-252 的环境规格使其最适合在 -40 至 70 摄氏度或 -40 至 158 华氏度之间的稳定环境中工作。

Woodward 9907-252 负载共享模块由电源进气口供电

【英文介绍】

The 9907-252 load sharing module is powered by a power intake that is nominal at 24 volts DC but ranges from at least 18 to 32 V/DC. The input of this machine is three-phase PT and CT input. PT input range is 95 to 130 V/AC, wire to wire. CT inputs require 3 to 7 A Rms of current at full load.

Adjustments that the device can handle include pressure drop and load gain. Dropop can reduce output between empty and full load. When two or more generators are connected in parallel, the load gain adjustment changes the load on a single generator. The 9907-252's environmental specifications make it best suited for operating in stable environments between -40 and 70 degrees Celsius or -40 and 158 degrees Fahrenheit.

Woodward 9907-252 负载共享模块由电源进气口供电
