Woodward 8272-169 负载控制模块 满额定负载

【产品详情】

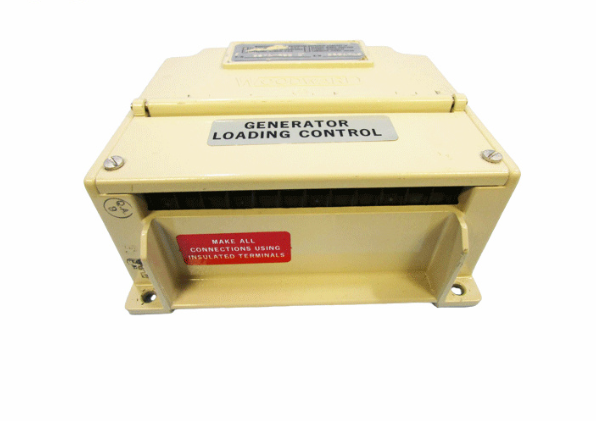

该装置 8272-169 是伍德沃德的发电机负载控制模块。该型号专为特殊应用而设计，由其涂漆的米色配色方案标识。本机的输入电源要求范围为 18 Vdc 至 32 Vdc。8272-169 GLC 装置能够在连接到两个不同选项的电源系统时运行;隔离电源系统选项和本地电源系统选项。

为了承载该发电机的满额定负载，应充分调整电位器。然后，使单元并联时间电压保持等于系统并联线的电压或无限母线调整设定的基准电压。

如果连接到隔离电源系统，则 8272-169 连接到并联线。然后是一组速度控制和负载分配，它能够准确测量发电机整体负载的电压。但是，如果连接到本地电源系统，该系统与无限总线并联，则 8272-169 最多可运行 15 个负载共享和速度控制。

Woodward 8272-169 负载控制模块 满额定负载

【英文介绍】

The unit 8272-169 is Woodward's generator load control module. Designed for special applications, this model is identified by its painted beige color scheme. The input power requirements range from 18 Vdc to 32 Vdc. The 8272-169 GLC unit is capable of operating when connected to two power systems with different options; Isolated power system options and local power system options.

In order to carry the full rated load of the generator, the potentiometer should be fully adjusted. Then, the parallel time voltage of the unit is kept equal to the voltage of the system parallel wire or the reference voltage set by the infinite bus adjustment.

If connected to an isolated power supply system, 8272-169 is connected to a parallel line. Then there is a set of speed controls and load distribution, which is able to accurately measure the voltage of the overall load of the generator. However, if connected to a local power system that is in parallel with an unlimited bus, the 8272-169 can run up to 15 load sharing and speed control.
