Woodward 5448-1019 基于微处理器的设计

【产品详情】

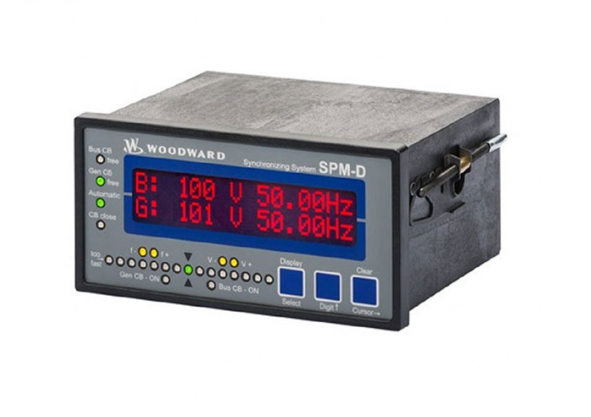

 伍德沃德公司是开发、生产和分销 8440-1019 以及 SPM-D10 同步器系列中其他装置的制造公司。这些装置配备了基于微处理器的设计，旨在用于三相交流发电机以及其他具有类似控制设置的发电机。 8440-1019 装置配备了标准规格和功能，例如相位匹配和与电压匹配的转差频率同步。这是通过 8440-1019 单元的离散输出端子实现的。 8440-1019 提供发电机和连接的公用总线的两相感应。它还能够实现同步检查作为诊断功能，并监控准确发生同步所需的时间。安装在 8440-1019 中的是该系列中的标准操作模式;“运行”、“检查”、“许可”和“关闭”。 8440-1019 型号框架上的集成硬件是一个两行 LCD 文本显示屏，供操作员访问信息和诊断信息，以及一个集成同步器。8440-1019 受多个密码保护，以保持发电机参数稳定。 工作电压摄入标称值为 24 V/DC，但至少需要 18 V/DC。8440-1019 可以承受的最大进气量为 32 V/DC。

Woodward 5448-1019 基于微处理器的设计

【英文介绍】

 Woodward is the company that develops, manufactures and distributes the 8440-1019 and other units in the SPM-D10 synchronizer family. These units are equipped with a microprocessor-based design and are intended for use in three-phase alternators as well as other generators with similar control Settings. The 8440-1019 unit comes with standard specifications and features such as phase matching and slip frequency synchronization with voltage matching. This is achieved through the discrete output terminals of unit 8440-1019. 8440-1019 provides two-phase induction of generator and connected public bus. It is also capable of implementing synchronization checks as a diagnostic function and monitoring the time it takes for accurate synchronization to occur. Installed in the 8440-1019 is the standard operating mode in the series; "Run", "Check", "Permit", and "Close". The integrated hardware on the frame of the model 8440-1019 is a two-line LCD text display for operator access to information and diagnostic information, and an integrated synchronizer. The 8440-1019 is protected by multiple passwords to keep the generator parameters stable. The nominal value of the operating voltage intake is 24 V/DC, but at least 18 V/DC is required. The 8440-1019 can withstand a maximum intake of 32 V/DC.
