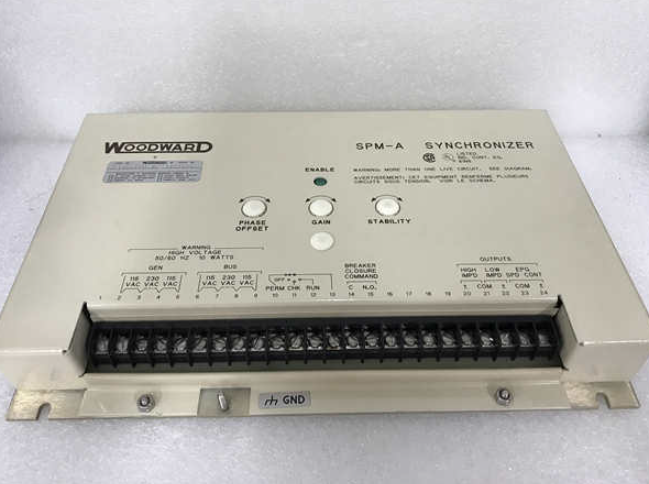

9905-003  Woodward SPM-A 同步器

【产品详情】

9905-003 是伍德沃德 SPM-A 同步器系列的一部分。这些同步器模块设计有一系列用户可调节的动态特性，以匹配发动机的动态特性。中小型柴油发动机需要快速动态单元，而大型设备（大型柴油/燃气/汽油发动机和涡轮机械）需要慢速动态单元。

9905-003 通过偏置其所连接的离线发生器的速度来运行，以使频率和相位与系统中另一台发生发生器的速度相匹配。之后，当断路器在指定的匹配时间之前在限制范围内匹配时，它会发出触点闭合信号以关闭断路器。该装置的频率范围为 50 至 60 赫兹，相位角为 +/- 10 度，电压匹配能力在 5% 以内。本机安装的标准操作模式包括 RUN、CHECK、PERMISSIVE 和 OFF。

9905-003  Woodward SPM-A 同步器

【英文介绍】

The 9905-003 is part of the Woodward SPM-A synchronizer series. These synchronizer modules are designed with a range of user-adjustable dynamic characteristics to match the dynamic characteristics of the engine. Small and medium-sized diesel engines require fast dynamic units, while large equipment (large diesel/gas/gasoline engines and turbomachinery) require slow dynamic units.

The 9905-003 operates by biasing the speed of the off-line generator to which it is attached so that the frequency and phase match the speed of the other generator in the system. Later, when the circuit breaker is matched within the limit before the specified matching time, it sends a contact closure signal to close the circuit breaker. The device has a frequency range of 50 to 60 Hz, a phase Angle of +/- 10 degrees, and a voltage matching capability of less than 5%. Standard operating modes for native installations include RUN, CHECK, PERMISSIVE, and OFF.

9905-003  Woodward SPM-A 同步器
