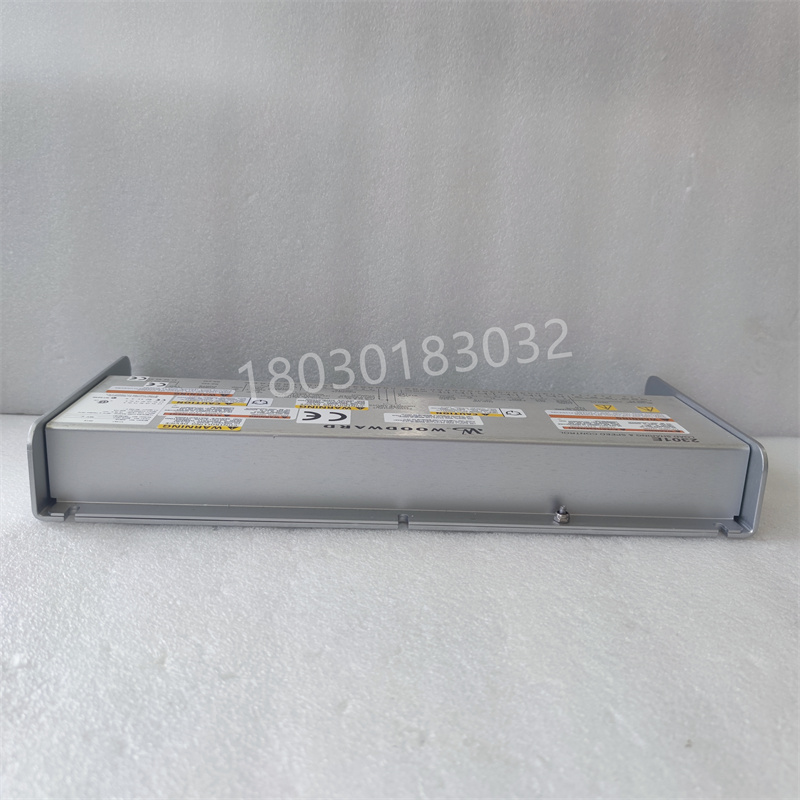

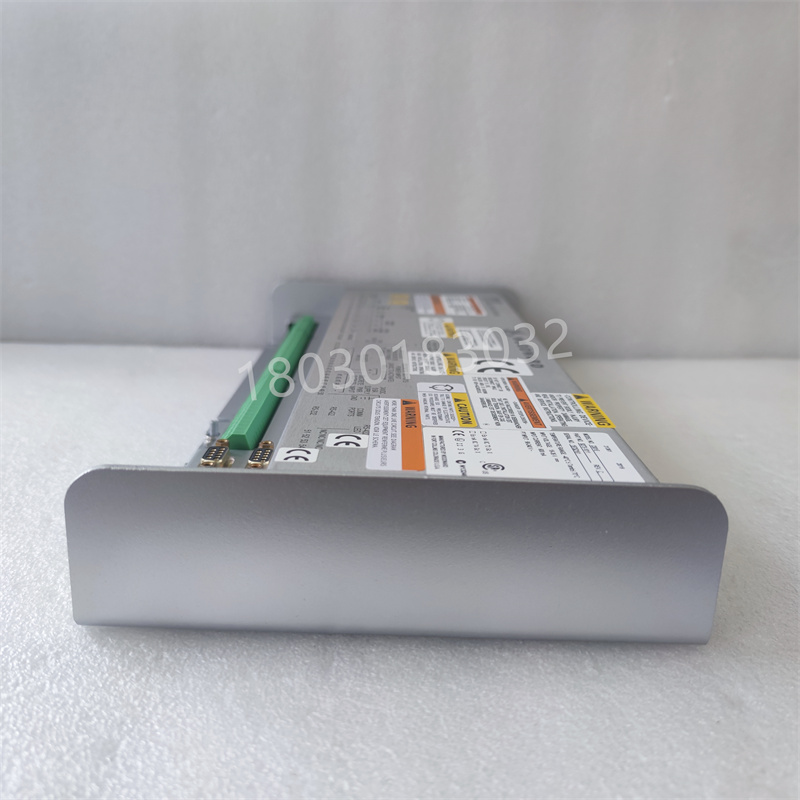

Woodward  8273-507 负载分配和速度控制模块

【产品详情】

该设备是伍德沃德公司开发的系列产品的一部分。它被列为 2301D-EC 负载分配和速度控制模块，该模块专为由柴油或燃气发动机供电的发电机而设计。2301D-EC 型号采用基于微处理器的设计，运行速度控制和负载共享等基本功能。

8273-507 采用集成式 Modbus 模块设计，额定可在普通的温带地区运行。该装置在保持运行时可以承受的极端温度范围在 -40 至 70 摄氏度或 -40 至 158 华氏度之间。在储存过程中，范围扩展到 -40 至 105 C，或 -40 至 221 F。

8273-507 设计用于在 24 伏直流电的标称进气下运行，但工作范围为 18 至 32 V/DC。输入电源电流的标称值为431 mA，而总范围为589 mA至319.6 mA。该装置的最大功耗为 20 瓦，同时处于最佳运行容量。8273-507 型号的磁性拾音额定值在 100 至 25000 赫兹之间，每分钟 300 至 3600 转。电流互感器每相负载小于 0.1 VA。

Woodward  8273-507 负载分配和速度控制模块

【英文介绍】

The device is part of a family of products developed by Woodward. It is listed as the 2301D-EC load distribution and Speed control module, which is designed for generators powered by diesel or gas engines. The 2301D-EC model features a microprocessor-based design with basic features such as operating speed control and load sharing.

The 8273-507 features an integrated Modbus module design and is rated for normal temperate zone operation. The extreme temperatures the device can withstand while remaining operational range from -40 to 70 degrees Celsius or -40 to 158 degrees Fahrenheit. During storage, the range extends to -40 to 105 C, or -40 to 221 F.

The 8273-507 is designed to operate at a nominal intake of 24 volts DC, but with an operating range of 18 to 32 V/DC. The nominal value of the input supply current is 431 mA, while the total range is 589 mA to 319.6 mA. The device has a maximum power consumption of 20 watts while operating at optimum capacity. Models 8273-507 have magnetic pickup ratings between 100 and 25,000 Hz at 300 to 3,600 RPM. The current transformer has a load of less than 0.1VA per phase.
