Woodward 9907-034 数字速度控制单元 发电机组服务

【产品详情】

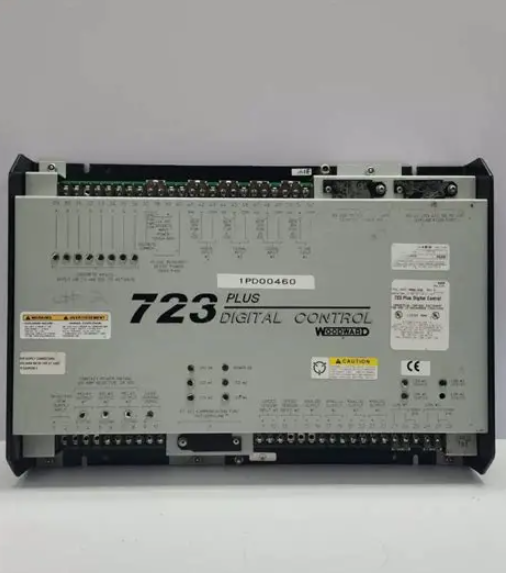

723 系列型号 9907-034 是兼容 DSLC 数字同步器和负载控制的伍德沃德数字速度控制单元。该控制器设计用于使用往复式发动机的发电机组服务。它是一种高压型号（90 至 150 Vdc（标称值为 125 Vdc），带有扭转滤波器，可用于带弹性联轴器的应用。

两个 LON 通道和两个串行端口为编程、调整和监控功能和参数提供了多种选项。DSLC 可以通过其中一个 LON 通道接入，而另一个通道可用于伍德沃德 LinkNet 输入/输出节点。串行通道可以连接到 HMI（或其他 Modbus 主设备）、伍德沃德手持式编程器或其他 ASCII 字符计算机终端，前提是该终端具有 RS-422 串行端口。

有关与伍德沃德 723 控制器兼容的附件的更多信息，请参阅 723 数字速度控制产品手册 02784。本手册还详细介绍了 9907-034 型和设备 I/O 的可配置参数，其中一些是可配置的。9907-034 具有光隔离分立输入和差分模拟输入。

这款带扭转滤波器的 DSLC 兼容 723 控制器还提供低压型号 （9907-033），以及不带扭转滤波器的低压和高压版本（9907-031、9907-032）。除了电压差和扭转滤波器外，这四种型号是相同的。

 Woodward 9907-034 数字速度控制单元 发电机组服务

【英文介绍】

The 723 Series model 9907-034 is a Woodward digital speed control unit compatible with DSLC digital synchronizers and load control. The controller is designed for generator set service using reciprocating engines. It is a high voltage model (90 to 150 Vdc (nominal value 125 Vdc) with a torsion filter for applications with elastic couplings.

Two LON channels and two serial ports provide multiple options for programming, tuning, and monitoring functions and parameters. DSLC can be accessed through one of the LON channels, while the other channel can be used for Woodward LinkNet input/output nodes. A serial channel can be connected to an HMI (or other Modbus master), a Woodward handheld programmer, or other ASCII character computer terminal, provided that the terminal has an RS-422 serial port.

For more information on accessories compatible with Woodward 723 controllers, see the 723 Digital Speed Control Product Manual 02784. This manual also details the configurable parameters of Model 9907-034 and device I/O, some of which are configurable. The 9907-034 has optical isolated discrete input and differential analog input.

The DSLC-compatible 723 controller with a torsional filter is also available in low voltage models (9907-033), as well as low and high voltage versions without a torsional filter (9907-031, 9907-032). All four models are identical except for the voltage difference and the twist filter.
