Woodward 9906-131 外部手持式编程

【产品详情】

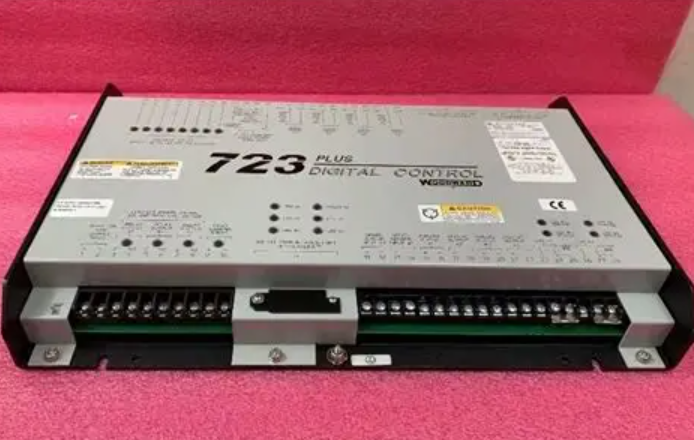

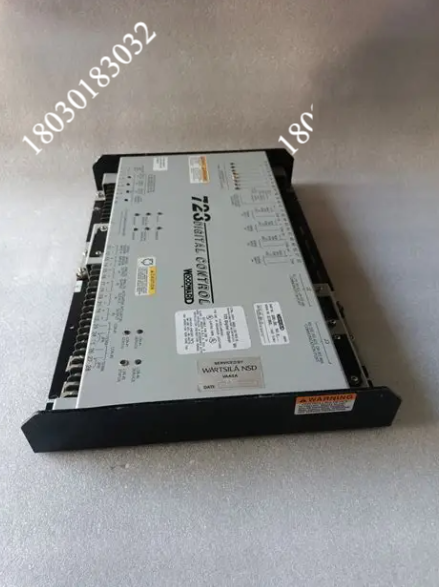

伍德沃德 723 数字控制 9906-131 型使用基于菜单的外部手持式编程器（或其他带有 RS-422 串行端口的 ASCII 字符计算机终端）进行编程和调整，该编程器连接到设备的串行端口之一。LONTalk 协议是另一种数字通信选项，通常与 RTD、热电偶、模拟和分立 I/O 等模块一起使用。

配置的设定点保存在控制器的永久存储器中，避免依赖外部电源来保留数据。这款伍德沃德 723 控制器还通过集成的自诊断功能监控处理器、内存和基准电源。

可配置的功能和 723 附件为扩展 9906-131 的监控和控制功能（包括发动机监控）提供了选项。除了可选的 LONTalk 兼容伍德沃德产品外，该 723 控制器还可以与 Modbus 主设备（如人机界面 （HMI））连接，支持使用 LinkNet 节点，并可连接到数字同步器和负载控制 （DSLC）。

伍德沃德 9906-131 数字控制器的一些附加功能包括：

软装/软卸

燃油限制器（启动、最大、涡轮增压）

断路器自动开启

远程负载和速度设置

该 723 控制器在运行期间可承受 –40 至 +70 °C 的温度范围，在 +20 至 +55 °C 时湿度高达 95%。 部件 9906-131 已通过 UL 和 cUL 认证。它还符合劳氏船级社的船级社规范 EN 50081-2 和 EN 50082-2。产品规格 02759 包含有关环境因素的更多信息，包括振动和冲击耐受性。

  Woodward 9906-131 外部手持式编程

【英文介绍】

The Woodward 723 Digital Control Model 9906-131 is programmed and adjusted using an external menu-based handheld programmer (or other ASCII character computer terminal with an RS-422 serial port) that is connected to one of the device's serial ports. The LONTalk protocol is another digital communication option that is commonly used with modules such as RTD, thermocouple, analog, and discrete I/O.

The configured set points are saved in the controller's permanent memory, avoiding reliance on an external power source to retain data. The Woodward 723 controller also monitors the processor, memory and reference power supply through integrated self-diagnostics.

Configurable features and 723 accessories provide options to extend the 9906-131's monitoring and control capabilities, including engine monitoring. In addition to the optional LonTalk-compatible Woodward products, the 723 controller can be connected to Modbus master devices such as Human machine interface (HMI), supports the use of LinkNet nodes, and can be connected to digital synchronizers and Load control (DSLC).

Some of the additional features of the Woodward 9906-131 digital controller include:

Soft loading/unloading

Fuel limiter (starting, Max, turbocharged)

Automatic circuit breaker opening

Remote load and speed Settings

The 723 controller withstands a temperature range of -40 to +70 °C during operation, with humidity up to 95% at +20 to +55 °C. Part 9906-131 is UL and cUL certified. It also complies with Lloyd's Register's classification society specifications EN 50081-2 and EN 50082-2. Product specification 02759 contains more information about environmental factors, including vibration and shock resistance.
