8301-1146 数字控制器 可用于控制船舶发电机
【产品详情】

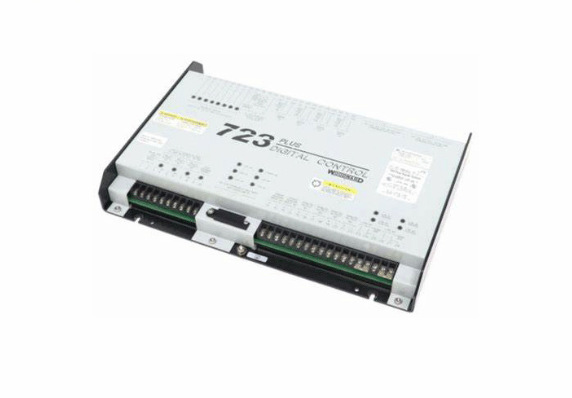

第 8301-1146 部分是伍德沃德尼罗河船舶发电机控制。伍德沃德调速器在其 723PLUS 数字控制系列中发布了此控制装置。8301-1146 控制系统符合国际疏浚规范。伍德沃德 8301-1146 控制系统的控制功能包括速度感应、速度控制、速度参考、警报、燃油限制器和下垂/KW 控制。速度感应由最多两个 MPU 或接近探头完成。
当速度信号检测到转速低于 10 或高于 2000 时，速度传感器故障被锁定。在关断和启动期间，故障检测将被覆盖，以防止错误故障。每个 8301-1146 速度传感器都可以单独设置为次要或主要警报，以防发生故障。
超速故障总是会发出重大警报，但其他主要和次要警报可根据应用的需要进行配置。可以设置为无报警、次要报警或主要报警的 I/O 信号是速度传感器 #1、速度传感器 #2、负载传感器输入、远程速度参考输入和远程负载参考输入。
723PLUS 8301-1146 控制系统具有许多可配置参数，可通过将伍德沃德手持式编程器连接到控制器的 RS-422 通信串行端口来编程。 723PLUS 数字控制应用手册 26425 是 8301-1146 尼罗河船舶发电机控制系统的产品手册，详细介绍了此伍德沃德控制器的可用功能。
8301-1146 数字控制器 可用于控制船舶发电机
【英文介绍】
Section 8301-1146 is Woodward Nile Marine generator control. Woodward Governor has released this control in its 723PLUS series of digital controls. The 8301-1146 control system complies with international dredging specifications. Control functions of the Woodward 8301-1146 control system include speed sensing, speed control, speed reference, alarm, fuel limiter, and sag /KW control. Speed sensing is accomplished by up to two MPUs or proximity probes.
When the speed signal detects a speed lower than 10 or higher than 2000, the speed sensor fault is locked. Fault detection is overridden during shutdown and startup to prevent false failures. Each 8301-1146 speed sensor can be individually set to a secondary or primary alarm in case of failure.
Overspeed failures always emit a major alarm, but other primary and secondary alarms can be configured according to the needs of the application. The I/O signals that can be set to no alarm, secondary alarm, or primary alarm are speed sensor #1, speed sensor #2, load sensor input, remote speed reference input, and remote load reference input.
The 723PLUS 8301-1146 control system has many configurable parameters and can be programmed by connecting a Woodward handheld programmer to the controller's RS-422 communication serial port. The 723PLUS Digital Control Application Manual 26425 is the product manual for the 8301-1146 Nile Marine Generator control system and details the functions available for this Woodward controller.
