Woodward 8280-1042 单引擎数字速度控制器

【产品详情】

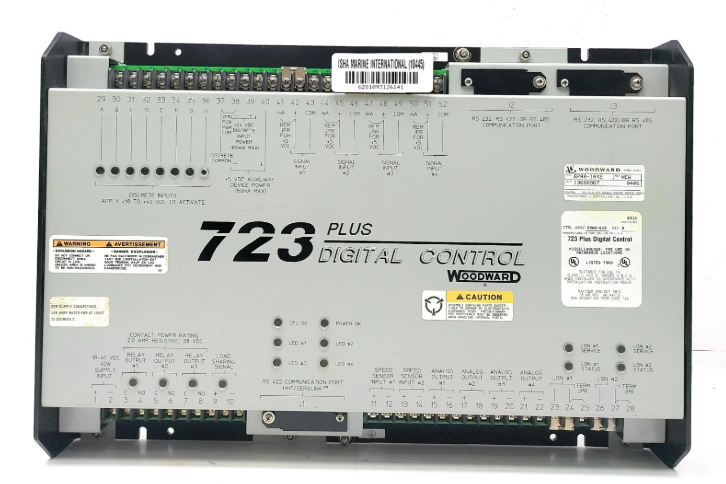

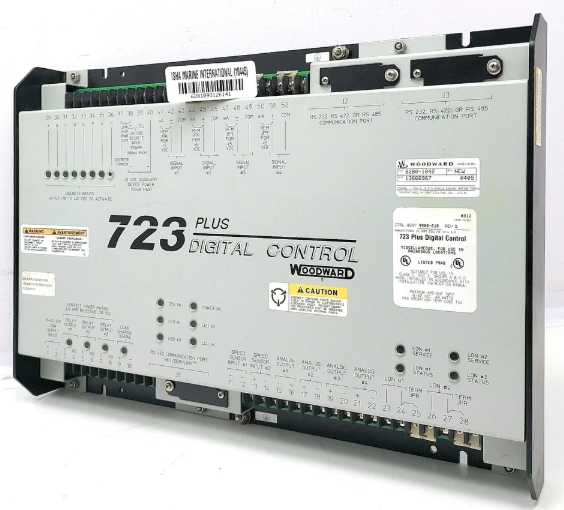

这款伍德沃德 723PLUS 单引擎数字速度控制器专为使用柴油往复式发动机的船舶推进应用而设计。8280-1042 型具有 DSLC（数字同步器和负载控制）速度偏置输入和双速感应输入，支持磁性拾取器 （MPU） 或接近开关。

8280-1042 控制器上有几个可配置的 I/O，包括三个通信端口：J1、J2 和 J3。J1 端口专用于手持式编程器（伍德沃德部件 9907-205）或监视窗口（基于 PC 的软件）。端口 J1 和 J2 可配置为 RS-232、RS-422 或 RS-485 通信。也可以通过端口 J2 配置 ServLink。伍德沃德 723PLUS/单引擎船用推进器/DSLC 输入手册 26264 提供了有关 723PLUS 型号 8280-1042 的 I/O 的更多信息，以及有关相关硬件（如手持式编程器）的信息。

723PLUS 型号 8280-1042 是低电压型号，需要 18–40 Vdc（标称值为 24 或 32 Vdc）的电压源。像这样的低压型号符合高压型号不符合的合规标准，其详细信息可在伍德沃德手册 02876 中找到。所有 723PLUS 型号均通过 I 类 2 区 A、B、C 和 D 组的 CSA 认证。

Woodward 8280-1042 单引擎数字速度控制器

【英文介绍】

This Woodward 723PLUS single-engine digital speed controller is designed for Marine propulsion applications using diesel reciprocating engines. The Model 8280-1042 has a DSLC (Digital Synchronizer and Load Control) speed bias input and a two-speed induction input, supporting a magnetic pickup (MPU) or proximity switch.

There are several configurable I/ OS on the 8280-1042 controller, including three communication ports: J1, J2 and J3. The J1 port is dedicated to handheld programmers (Woodward part 9907-205) or monitoring Windows (PC-based software). Ports J1 and J2 can be configured for RS-232, RS-422, or RS-485 communication. ServLink can also be configured through port J2. The Woodward 723PLUS/ Single-engine Marine Thruster /DSLC Input Manual 26264 provides more information about the I/O of the 723PLUS model 8280-1042, as well as information about related hardware such as handheld programmers.

The 723PLUS model 8280-1042 is a low voltage model that requires a voltage source of 18-40 Vdc (nominal 24 or 32 Vdc). Low-voltage models like this meet compliance standards that high-voltage models do not, details of which can be found in the Woodward Manual 02876. All 723PLUS models are CSA certified for Class I Region 2 Groups A, B, C and D.
