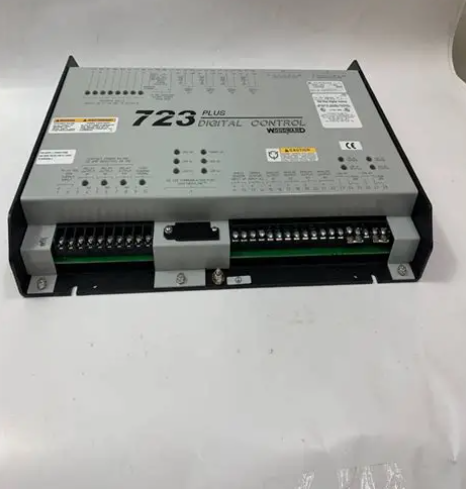

Woodward 8280-1001 具有双速输入的 723PLUS 数字控制器
【产品详情】
伍德沃德部件号 8280-1001 是具有双速输入的 723PLUS 数字控制器。这些输入可用于磁性拾取器 （MPU） 或接近开关，使该控制适用于各种应用，包括负载共享系统和具有扭转滤波的应用。伍德沃德 723PLUS 控制器（例如此类控制器）由安装在钣金机箱中的单个印刷电路板组成。
第 8280-1001 部分具有模拟和离散输入和输出。这些 I/O 是双速输入的补充，包括：
三个模拟输出
4 个模拟输入
三个离散输出
8 个离散输入
模拟和离散 I/O 都是可配置的，使 8280-1001 成为可定制的控制器。
723PLUS 数字控制器有多个附件。部件 9907-205，伍德沃德的手持式编程器，插入本机上的一个串行端口，用于调整 8280-1001 控制器。Watch Window Software（部件号 8923-932）也可以通过 PC 进行调整。723PLUS 手册 02877 提供了与部件 8280-1001 兼容的附件的更多详细信息。
该数字控制器已通过 CSA 认证，适用于 I 类 2 区 A、B、C 和 D 组，并符合 EMC 指令 2004/108/EC 和低电压指令 2006/95/EC。 723PLUS 数字控制产品规范 02876 包含有关伍德沃德部件 8280-1001 合规性和列表的完整详细信息。
Woodward 8280-1001 具有双速输入的 723PLUS 数字控制器
【英文介绍】
Woodward part number 8280-1001 is a 723PLUS digital controller with two-speed inputs. These inputs can be used with magnetic pickers (MPUs) or proximity switches, making this control suitable for a variety of applications, including load sharing systems and applications with torsional filtering. Woodward 723PLUS controllers, such as these, consist of a single printed circuit board mounted in a sheet metal case.
Part 8280-1001 has analog and discrete inputs and outputs. These I/ OS are in addition to two-speed inputs and include:
Three analog outputs
4 analog inputs
Three discrete outputs
8 discrete inputs
Both analog and discrete I/O are configurable, making the 8280-1001 a customizable controller.
The 723PLUS digital controller has multiple accessories. Part 9907-205, Woodward's handheld programmer, plugs into a serial port on this machine to adjust the 8280-1001 controller. Watch Window Software (part number 8923-932) can also be adjusted from a PC. 723PLUS Manual 02877 provides more details on accessories compatible with part 8280-1001.
The digital controller is CSA certified for use in Class I 2 Area Groups A, B, C and D and complies with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. 723PLUS Digital Control Product Specification 02876 contains full details on Woodward Part 8280-1001 compliance and listing.
