WOODWARD 8290-184 速度控制装置 特定执行器兼容

【产品详情】

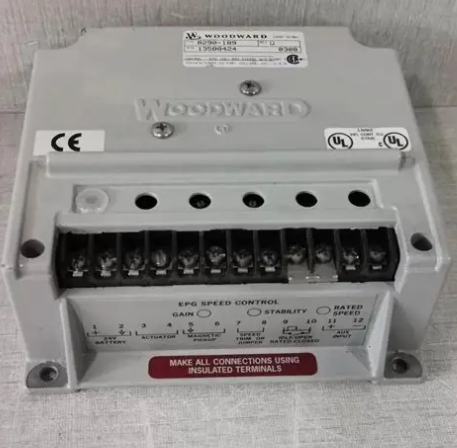

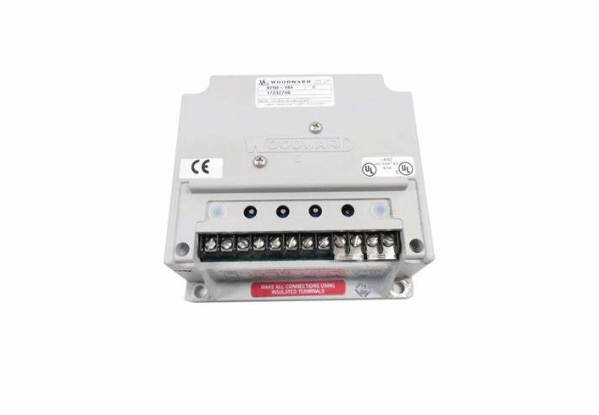

8290-184 型是伍德沃德的速度控制装置。本产品属于电动调速器系列，与同一制造商的特定执行器兼容。型号 8290-184 可与执行器 1712、1724、512 和 524 一起使用。它设计用于与由汽油或天然气驱动的原动机配合使用。该模型可作为完整 EPG 系统的一部分使用。这些系统包括速度控制装置、执行器和磁性拾音器。

该速度控制设备具有 24 伏电池电压，VDC 范围为 20 VDC 至 32 VDC。它使用 5A 电池充电器。设备应安装 12 AWG 和 14 AWG 接线（取决于长度）。产品 8290-184 的环境温度范围为 -40 至 167 华氏度。它使用 10 A 慢熔断保险丝运行，并符合欧盟指令。它消耗高达 95 瓦的功率，并且可以安装在它将使用的发动机上。

该速度控制装置使用启动燃油限制，也可以与可选的斜坡发电机一起使用。型号 8290-184 已由伍德沃德停产，但可在 AX Control Inc. 找到。通过我们购买的所有产品均标配三年保修。有关本机的更多信息，请参阅上面“手册”选项卡中的多个手册、数据表和图纸。

WOODWARD 8290-184 速度控制装置 特定执行器兼容

【英文介绍】

Model 8290-184 is Woodward's speed control unit. This product belongs to the electric governor family and is compatible with specific actuators from the same manufacturer. Models 8290-184 can be used with actuators 1712, 1724, 512 and 524. It is designed for use with prime movers powered by gasoline or natural gas. This model can be used as part of a complete EPG system. These systems include speed controls, actuators and magnetic pickups.

The speed control device has a 24 volt battery voltage with a VDC range of 20 VDC to 32 VDC. It uses 5A battery charger. Equipment should be equipped with 12 AWG and 14 AWG wiring (depending on length). Product 8290-184 has an ambient temperature range of -40 to 167 degrees Fahrenheit. It operates with A 10 A slow fuse and complies with EU directives. It consumes up to 95 watts of power and can be installed on the engine it will use.

The speed control uses starting fuel limits and can also be used with an optional ramp generator. Models 8290-184 have been discontinued by Woodward, but are available in AX Control Inc. Found. All products purchased through us come with a three-year warranty as standard. For more information about this unit, see the multiple manuals, data sheets, and drawings in the Manuals TAB above.

WOODWARD 8290-184 速度控制装置 特定执行器兼容
