8406-113 发动机发电机控制套件负载分配
【产品详情】
尺寸 | 282 x 359 x 135 毫米 |
特征 | 速度偏置 4–20 mA、0–5 V、PWM 或 ±3 V 输出 |
输入电压 | 18-32 V 直流 |
制造者 | 伍德 沃德 |
工作温度 | –20 至 +70 °C |
插槽类型 | 3 个串口 |

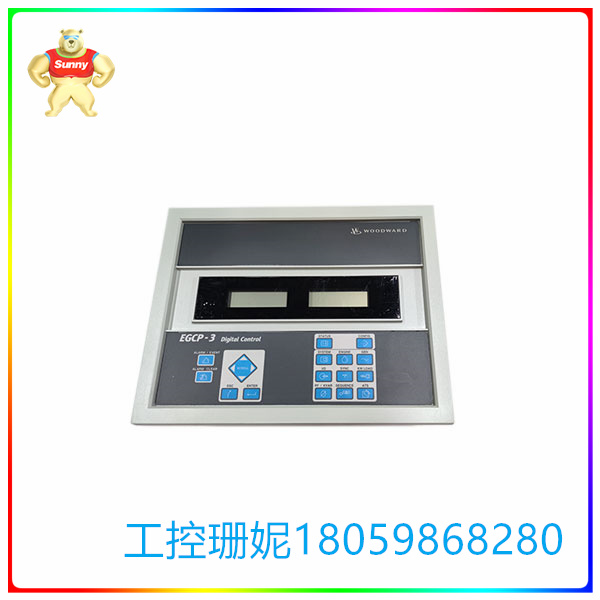

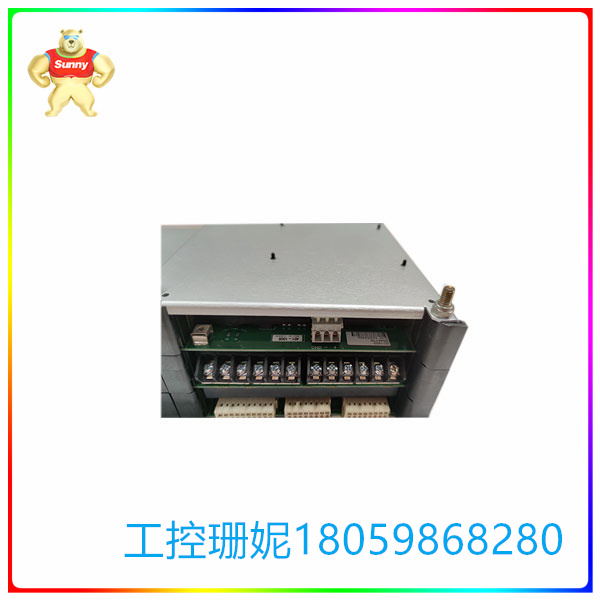

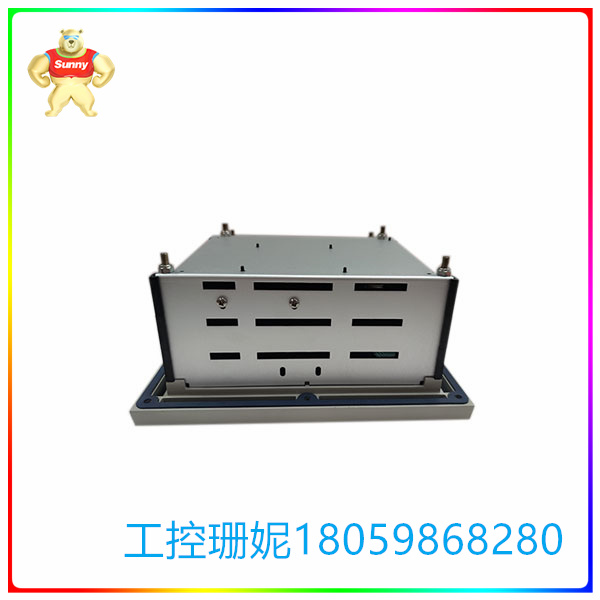

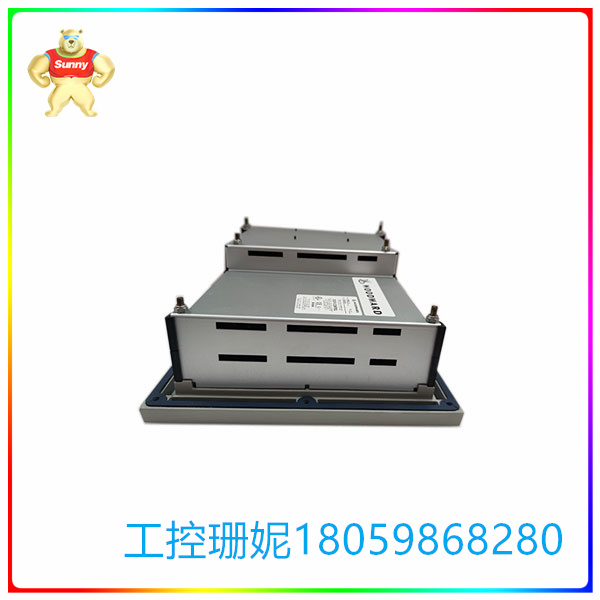

8406-113 型属于伍德沃德 EGCP-3 发动机发电机控制套件负载分配 (LS) 型号系列。该基于微处理器的单元设计用于与其他 LS 单元一起使用或与其他 LS 单元一起使用。8406-113 的额定输入电压为 18-32 V dc,额定工作温度范围为 –20 至 +70 °C。
该LS型号具有键盘和显示屏界面,其中包括两个背光LCD屏幕,使用户能够同时监控和调整相关参数。这些屏幕显示八行状态信息,可选择四行配置或报警日志信息。
使用前,必须通过首次启动菜单配置 8406-113;在引擎运行时,无法编辑这些项目。对于标准操作,8406-113 配置点可从前面板显示屏获得。其他配置点(以及标准配置点)可通过 ServLink 通信串行链路从 Watch Window 软件访问。
该控制单元有 9 个状态菜单,便于监控和故障排除。这些菜单是系统状态、发动机状态、发电机状态、同步器状态、KW 负载状态、PF/KVAR 状态、I/O 状态、序列状态和 ATS 状态(请注意:LS 型号没有任何转换开关功能。如果设备设置了连接到电源的本地系统总线,并且需要 MC 设备来执行 ATS 功能)。
其他规格和说明可在 EGCP-3 发动机发电机控制套件 LS(负载共享)型号 8406-113 手册 26194 中找到。
8406-113 发动机发电机控制套件负载分配
【英文介绍】
The Type 8406-113 belongs to the Woodward EGCP-3 Engine Generator Control Suite Load Distribution (LS) model family. The microprocessor-based unit is designed to be used with or in conjunction with other LS units. The 8406-113 has a rated input voltage of 18-32 V dc and a rated operating temperature range of -20 to +70 °C.
The LS model features a keyboard and display interface, including two backlit LCD screens that enable users to monitor and adjust relevant parameters simultaneously. These screens display eight lines of status information, with a choice of four lines of configuration or alarm log information.
Before use, you must configure 8406-113 through the first startup menu; These items cannot be edited while the engine is running. For standard operation, the 8406-113 configuration points are available from the front panel display. Other configuration points (as well as standard configuration points) are accessible from the Watch Window software via the ServLink communication serial link.
The control unit has 9 status menus for easy monitoring and troubleshooting. These menus are System status, engine status, generator status, synchronizer status, KW load status, PF/KVAR status, I/O status, sequence status, and ATS status (Please note: LS models do not have any transfer switch function. If the device is configured with a local system bus connected to the power supply and an MC device is required to perform the ATS function).
Additional specifications and instructions can be found in the EGCP-3 Engine Generator Control Kit LS (Load Sharing) Model 8406-113 Manual 26194.
