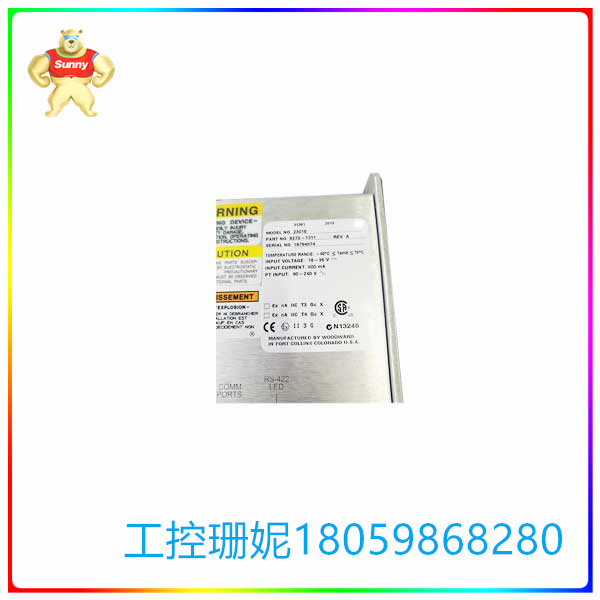

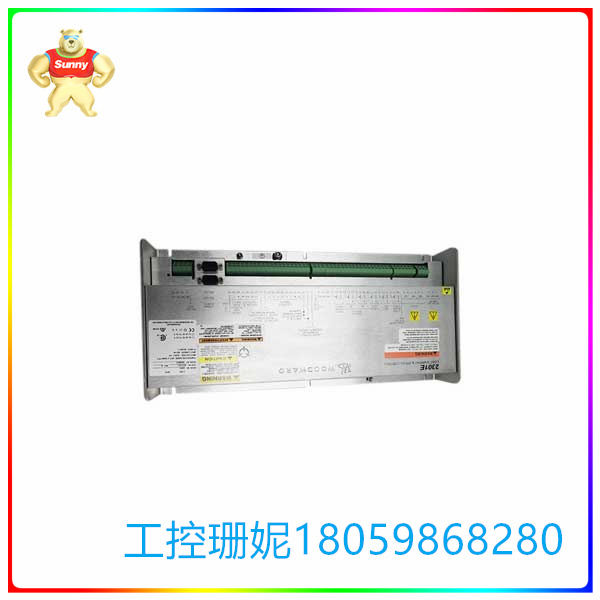

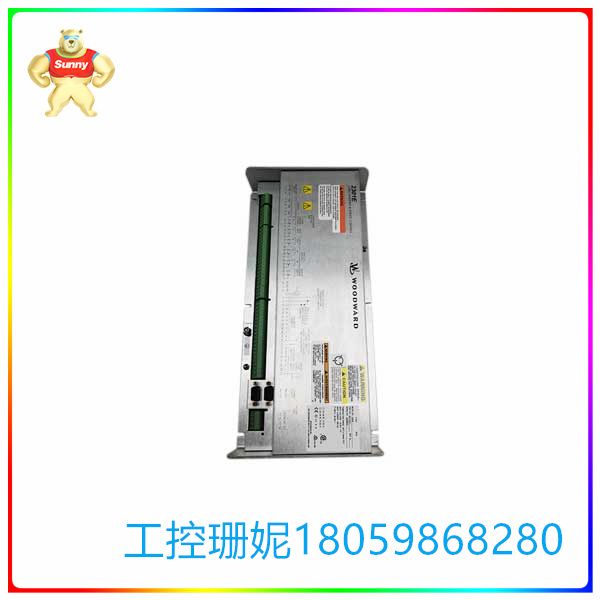

8273-1011 速度控制装置 低速感应功能
【产品详情】
2301E 为柴油或燃气发动机驱动的发电机提供负载分配和速度控制。借助内置的灵活配置软件,现在可以使用外部计算机 (PC) 选择应用变体。更改应用以适应发动机转速范围、齿轮齿数以及正向或反向作用的选择只需软件设置即可。
2301E 控制器与现有的 2301D 产品向后兼容,因为它具有相同的尺寸和安装配置。新控制器确保了久经考验的多功能产品的持续可用性,并具有增强功能:

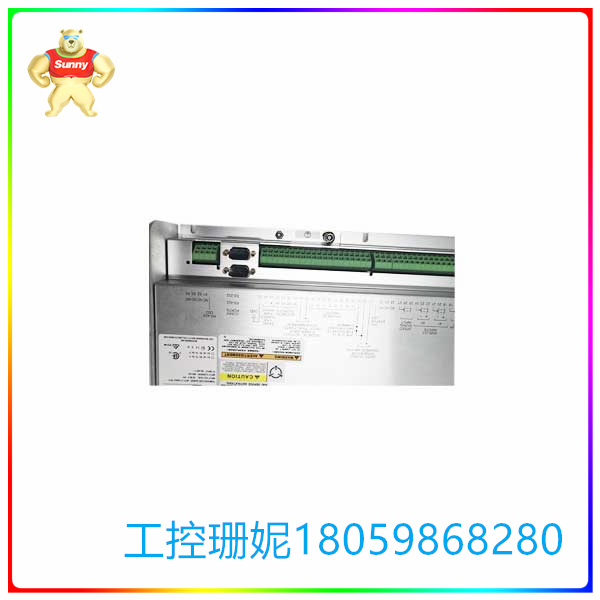

- 独立的 RS-232 和 RS-422 串行端口,均带有 9 针连接器
- 用于电源和 RS-422 通信的附加状态 LED
- 故障数据记录功能,每 10 毫秒收集 16 秒的关机数据、峰值速度和负载检测
- 低电流 PWM 输出,用于驱动伍德沃德的 L 系列、F 系列、P 系列和 PISC 执行器
- 新的接线端子可容纳额外的 I/O,大多数端子位于与 2301D 型号相同的位置。
- 主要合规认证
- 发动机/发电机或泵应用
- 多种动态
- 歧管气压 (MAP) 限制器
- 扭矩限制器
- 低速感应功能
- 远程速度和负载参考
- 软负载传递
- 自动空闲至额定值切换
- 负载抑制/负载脉冲选项
- 怠速压降功能
- 可选的 Modbus® 串行通信
- 自适应速度感应算法
- 两个串行端口
- 数据记录能力
- 2301E ToolKit 维修工具或 Control Assistant 可编程
- 普通或危险场所机箱
更换:
8273-1011 是 8273-138 和 8273-140 的直接替代品
8273-1011 速度控制装置 低速感应功能
【英文介绍】
The 2301E provides load distribution and speed control for generators powered by diesel or gas engines. With the built-in flexible configuration software, application variants can now be selected using an external computer (PC). The choice to change the application to fit the engine speed range, the number of gears, and the forward or reverse action is simply a software setup.
The 2301E controller is backward compatible with the existing 2301D product as it has the same size and mounting configuration. The new controller ensures the continuous availability of a proven and versatile product with enhanced features:
- Separate RS-232 and RS-422 serial ports, both with 9-pin connectors
- Additional status LED for power and RS-422 communication
- Fault data logging feature collects 16 seconds of shutdown data, peak speed and load detection every 10 milliseconds
Low current PWM output to drive Woodward's L Series, F Series, P Series and PISC actuators
- New terminals can accommodate additional I/O, and most terminals are located in the same location as the 2301D model.
- Major compliance certification
- Engine/generator or pump applications
- Multiple dynamics
- Manifold Pressure (MAP) limiter
- Torque limiter
- Low speed sensing function
- Remote speed and load reference
- Soft load transfer
- Automatic idle to rating switch
- Load suppress/load pulse option
- Idle voltage drop function
- Optional Modbus® serial communication
- Adaptive speed sensing algorithm
- Two serial ports
- Data recording ability
- 2301E ToolKit maintenance tool or Control Assistant can be programmed
- Common or dangerous place chassis
Replace:
The 8273-1011 is a direct replacement for the 8273-138 and 8273-140
