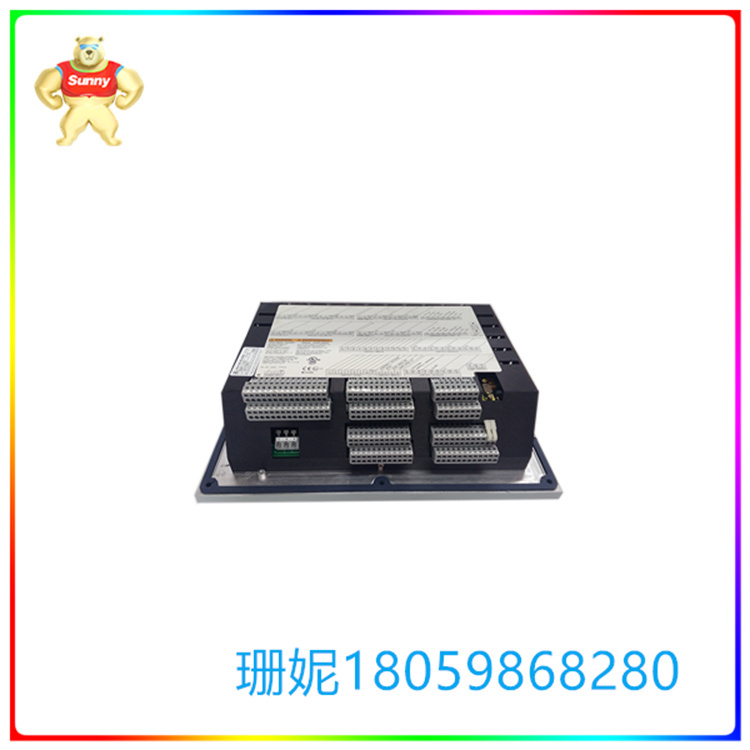

9907-1183  505E 涡轮控制器

【产品详情】

505E 控制器设计用于操作单抽气和/或进气蒸汽轮机、透平膨胀机、驱动发电机、压缩机、泵或工业风机。

伍德沃德的 9907-1183 人机界面可以配备 NEMA 4X 级保护外壳。虽然外壳是可选的，但建议使用它，因为它能够有效地保护机电组件免受任何永久性损坏。外壳防水、防尘，适用于恶劣的户外条件。

9907-1183 型号配备 32 位微控制器，可控制各种涡轮机，例如工业尺寸的标准蒸汽轮机、多功能涡轮发电机和透平膨胀机型号。 它能够配置为独立设备，也可以与工业工厂的DCS（分布式控制系统）协同运行。505E 控制器设计用于操作大多数蒸汽轮机系统的抽气和/或进气。

该伍德沃德 HMI 具有 PID 结构，非常适合需要监测和控制涡轮机速度、负载、入口压力、排气集管压力或提取/入场集管压力等参数的应用。通过 4–20 mA 传感器和 PID 以及比率/限幅器功能，9907-1183 可精确控制抽出/进料，同时防止涡轮机超出其参数运行。

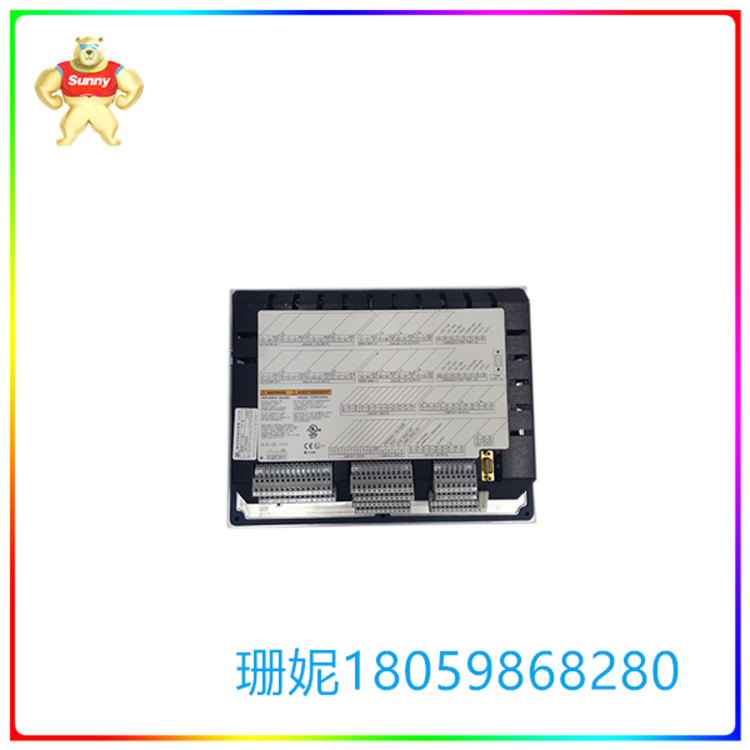

9907-1183  505E 涡轮控制器

【英文介绍】

The 505E controller is designed to operate a single extraction and/or intake steam turbine, turbine expander, drive generator, compressor, pump or industrial fan.

Woodward's 907-1183 HMI can be equipped with a NEMA 4X-rated protective housing. Although the housing is optional, it is recommended to use it because it effectively protects the electromechanical components from any permanent damage. The housing is waterproof and dust-proof, suitable for harsh outdoor conditions.

Models 9907-1183 are equipped with 32-bit microcontrollers to control a wide range of turbines, such as industrial-size standard steam turbines, multi-function turbine-generators and turbine-expansion models. It can be configured as a standalone device or run in conjunction with a DCS (distributed control system) in an industrial plant. The 505E controller is designed to operate the extraction and/or intake of most steam turbine systems.

The Woodward HMI has a PID construction that makes it ideal for applications where parameters such as turbine speed, load, inlet pressure, exhaust header pressure or extraction/entry header pressure need to be monitored and controlled. With a 4-20 mA sensor and PID and ratio/limiter function, the 9907-1183 provides precise extraction/feed control while preventing the turbine from operating beyond its parameters.

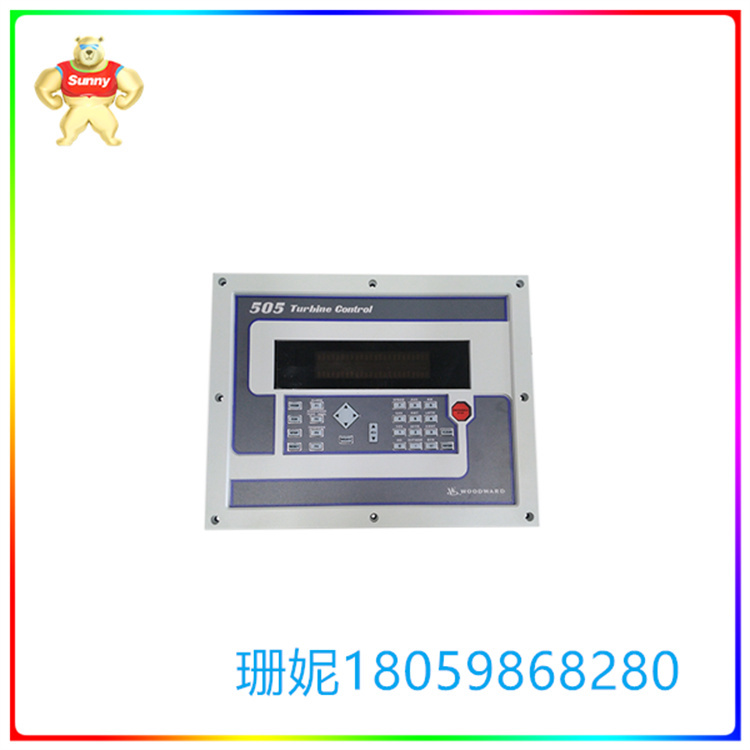

9907-1183  505E 涡轮控制器
