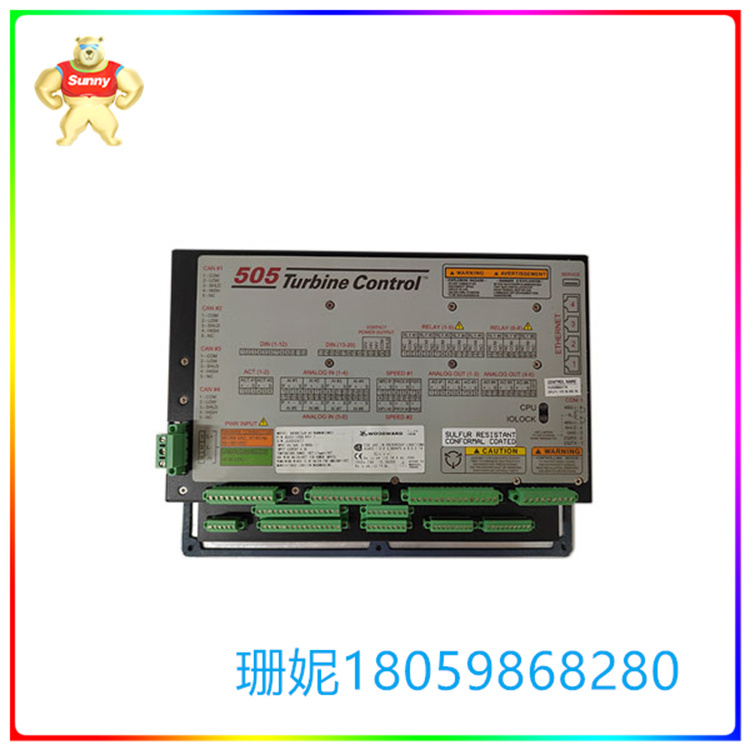

8200-1300 数字调速器 蒸汽轮机提供数字控制
【产品详情】
伍德沃德的 8200-1300 为蒸汽轮机提供数字控制。它是 505 涡轮机控制系列中可用的几种数字调速器之一。本机使用符合标准的 LVDC(18-32 VDC)电源。
该装置可用于非危险场所。它也适用于 I 类 2 区 A/B/C/D 组位置。该装置通常安装有额定温度至少为 75 摄氏度的绞合铜现场布线。

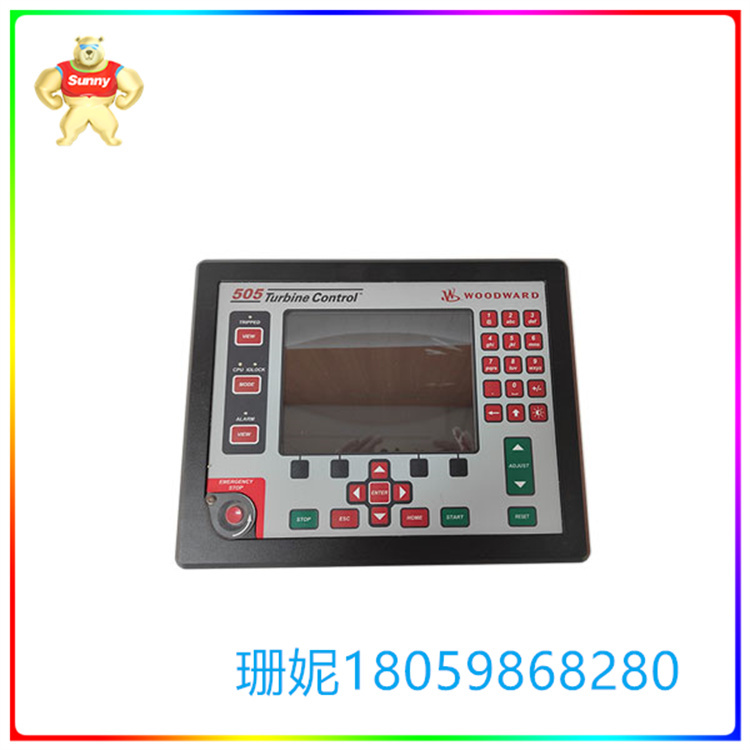

8200-1300 可以控制单或双分式执行器蒸汽轮机。它可以配置为工厂DCS(分布式控制系统)的一部分,也可以用作独立单元。它设计有五个 PID 控制器,包括一个速度/负载 PID 控制器、一个级联 PID 控制器以及 AUX1 和 AUX2 PID 控制器。该装置提供带图形控制面板显示屏和键盘的操作员控制面板。该面板包括一个紧急停止按钮、开始、停止、ESC 和主页按钮、一个数字键盘、向上/向下切换按钮以及带有上/下和左/右按钮的回车键。该面板左侧还有四个 LED,包括 CPU 运行状况、IO 锁定、摘要警报和摘要跳闸。
在内部,8200-1300包括一个看门狗定时器和一个CPU故障电路,用于监控微处理器及其存储器的运行。
有关 8200-1300 的更多信息,请参阅 Woodward 的文档。
8200-1300 数字调速器 蒸汽轮机提供数字控制
【英文介绍】
Woodward's 8200-1300 provides digital control for steam turbines. It is one of several digital governors available in the 505 turbine control series. The unit uses a standard LVDC (18-32 VDC) power supply.
The device can be used in non-hazardous places. It is also available for Class I Zone 2 A/B/C/D group locations. The unit is usually fitted with stranded copper field wiring with a temperature rating of at least 75 degrees Celsius.
The 8200-1300 can control steam turbines with single or double split actuators. It can be configured as part of a factory DCS (Distributed control System) or used as a stand-alone unit. It is designed with five PID controllers, including a speed/load PID controller, a cascade PID controller, and AUX1 and AUX2 PID controllers. The unit provides an operator control panel with graphical control panel display and keyboard. The panel includes an emergency stop button, start, stop, ESC, and home buttons, a numeric keypad, up/down toggle buttons, and a return key with up/down and left/right buttons. There are also four leds on the left side of the panel, including CPU health, IO lock, summary alert, and summary trip.
Internally, the 8200-1300 includes a watchdog timer and a CPU fault circuit to monitor the operation of the microprocessor and its memory.
For more information on the 8200-1300, see Woodward's documentation.
