WOODWARD 5501-410 微网电源单元 冗余或单工电源

【产品详情】

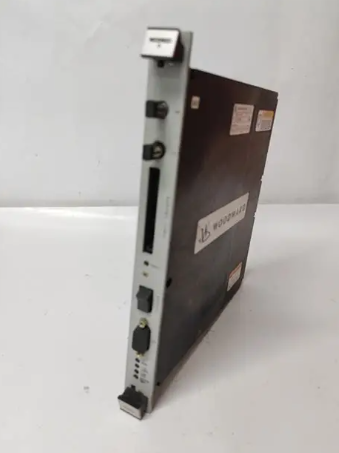

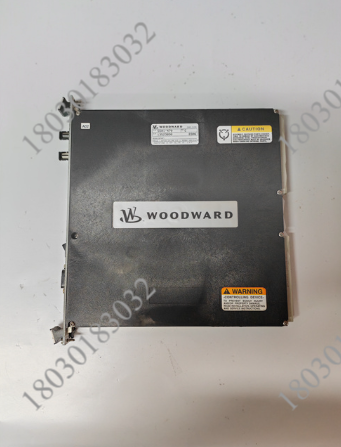

伍德沃德板 5501-410 是一种微网电源单元，工作在 24 VDC。切勿在电路中安装或拆卸该板。5501-410 板可与冗余或单工电源一起使用。

电源板 5501-410 是 MicroNet 数字控制系列的一部分，该板由伍德沃德公司制造，可在 24 VDC 的输入电压下工作。该板可用于MicroNet Plus或MicroNet Simplex机箱以及冗余或单工系统。该模块具有操作此板时所需的规格，其中一些如下：

最大输入电流：33 A

最大输出电流 （5 VDC）：32 A @ 55 °C、28 A @ 60 °C 和 22.0 A @ 65 °C

工作范围：18-36 VDC

最大输入功率：600 W

所有这些规格对于确保电路板无故障运行至关重要.如果确实发生故障，请确保未超过所有这些规格。

将 5501-410 板插入所选机箱后，它只会占用机箱的三个插槽。作为主电源板之一，前面板上有四个LED，用于指示电源的健康状况。指示灯为正常指示灯、电源故障指示灯、过热指示灯和输入故障指示灯。OK LED 是面板上唯一的绿色 LED，表示没有故障且设备运行状况正常。

26166 手册有两个版本，可与 5501-410 板一起使用。26166V1手册详细介绍了电源板及其规格，而26166V2手册则对电源板进行了基本的扩展描述。

WOODWARD 5501-410 微网电源单元 冗余或单工电源

【英文介绍】

The Woodward Board 5501-410 is a microgrid power supply unit that operates at 24 VDC. Do not install or remove the board in the circuit. The 5501-410 board can be used with redundant or simplex power supplies.

The power board 5501-410, part of the MicroNet digital control family, is manufactured by Woodward and operates at an input voltage of 24 VDC. The board can be used in MicroNet Plus or MicroNet Simplex cases as well as redundant or simplex systems. The module has the specifications required when operating this board, some of which are as follows:

Maximum input current: 33 A

Maximum output current (5 VDC) : 32 A@ 55 °C, 28 A@ 60 °C and 22.0 A@ 65 °C

Operating range: 18-36 VDC

Maximum input power: 600 W

All of these specifications are essential to ensure trouble-free operation of the board. If a failure does occur, make sure that all of these specifications are not exceeded.

After inserting the 5501-410 board into the selected case, it will only take up three slots in the case. As one of the main power boards, there are four leds on the front panel to indicate the health of the power supply. Indicators are normal indicator, power fault indicator, overheat indicator, and input fault indicator. The OK LED is the only green LED on the panel, indicating that there is no fault and the device is operating normally.

The 26166 manual is available in two versions and can be used with the 5501-410 board. The 26166V1 manual provides a detailed description of the power board and its specifications, while the 26166V2 manual provides a basic expanded description of the power board.
