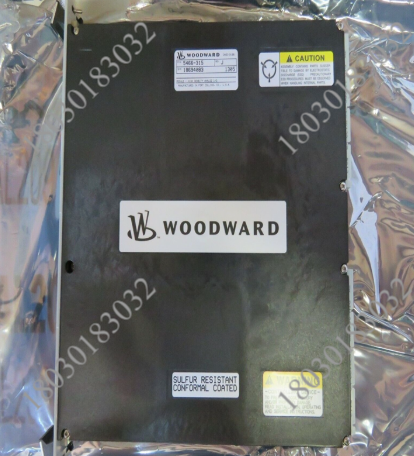

WOODWARD5466-416 带双以太网选件模块 单工系统配置
【产品详情】
带双以太网选件模块 5466-416 的 MicroNet 奔腾仅可在单工系统配置中与主机架和扩展机架配置一起使用。该装置的操作极限高达 <> 华氏度。
微网数字控制器模块 5466-416 是奔腾 CPU。此特定奔腾 CPU 配有双以太网选项，可在所选的 MicroNet 机箱内运行图形应用程序编程 （GAP）。请注意，安装模块后，它将安装在单工系统的扩展机架中。该模块还具有位于该模块上的固态硬盘驱动器，该硬盘驱动器使用标准Windows文件系统。具有Windows NT操作系统的硬盘驱动器还具有应用程序和实时扩展。
安装 5466-416 模块时需要注意的重要一点是，在任何情况下，在执行应用程序时，都不应将任何非隔离设备直接拔下或插入 CPU。 此 CPU 确实具有实时插入的功能，但在 GAP 应用程序运行时，不应拔下显示器、鼠标或键盘或插入 CPU。
必须配置 5466-416 模块，以便可以提供第二个自动切换 10-100 Base-TX RJ45 连接器。有时，当与微网系统内的某些CPU一起使用时，需要RS-232 Db9mf滤波器，奔腾处理器不需要此滤波器。
使用此模块查找奔腾 CPU 信息的最佳手册是 26166 手册，26166 手册有三个版本。手册 26166V3 提供了有关奔腾 CPU 的最多信息。
WOODWARD5466-416 带双以太网选件模块 单工系统配置
【英文介绍】
The MicroNet Pentium with dual Ethernet option module 5466-416 can only be used in simplex system configurations with host rack and extension rack configurations. The operating limit of the unit is up to <> degrees Fahrenheit.
Microgrid digital controller module 5466-416 is a Pentium CPU. This particular Pentium CPU comes with a dual Ethernet option to run Graphics application programming (GAP) within the selected MicroNet chassis. Note that once the module is installed, it will be installed in the expansion rack of the simplex system. The module also has an SSD drive located on the module, which uses the standard Windows file system. Hard drives with the Windows NT operating system also have applications and real-time extensions.
An important point to note when installing the 5466-416 module is that under no circumstances should any non-isolated device be unplugged or inserted directly into the CPU while executing the application. This CPU does have the ability to plug in in real time, but the monitor, mouse, or keyboard should not be unplugged or the CPU inserted while the GAP application is running.
The 5466-416 module must be configured so that a second automatic switching 10-100 Base-TX RJ45 connector can be provided. Sometimes, when used with certain cpus within a microgrid system, an RS-232 Db9mf filter is required, and Pentium processors do not require this filter.
The best manual for using this module to find information about Pentium cpus is the 26166 manual, which comes in three versions. Manual 26166V3 provides the most information about the Pentium CPU.
