WOODWARD 5466-1510 微网数字控制器 双处理器上运行

【产品详情】

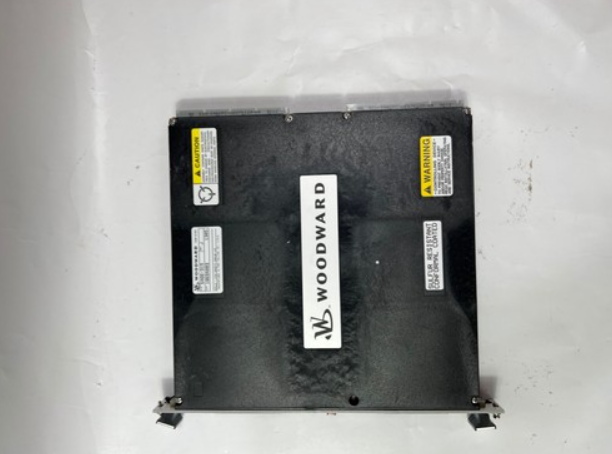

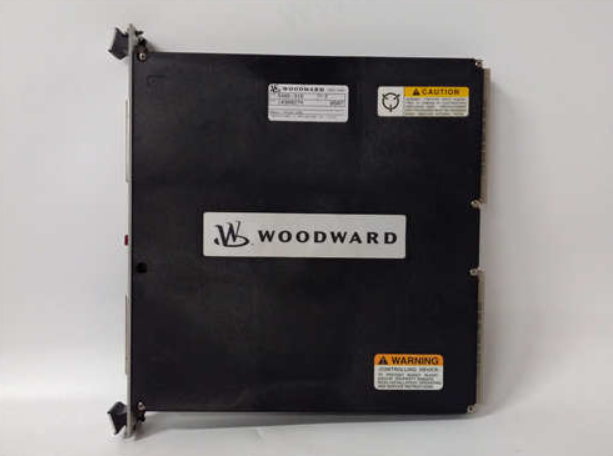

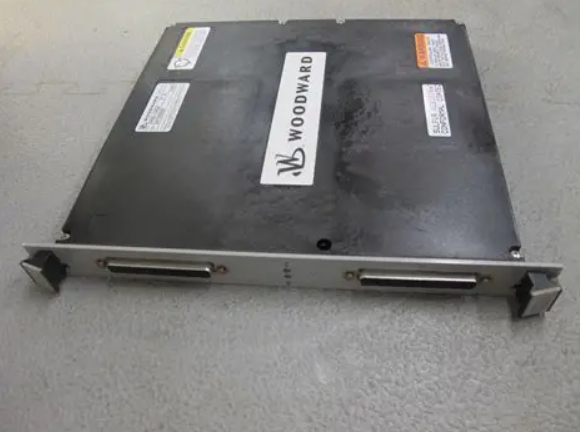

伍德沃德微网数字控制器和CPU P1020模块5466-1510具有带电插入和带电移除的能力。该模型没有任何标准。单元 5466-1510 在 800 MHz 双处理器上运行，并具有 512 MB RAM。

MicroNet Digital Controller 5466-1510由Woodward Inc设计为CPU P1020。CPU P1020 可用于两种系统类型：冗余或单工。如果在单工系统中使用，它通常是可以使用的三个标准 CPU 之一。该装置的一个独特功能是可以在它带电时从机箱中插入或移除。在单工系统和冗余系统中使用该模块的主要区别在于，只有在冗余系统中才会有两个CPU，一个在插槽A1中，第二个在插槽A8或A14中，具体取决于所选的机箱。

P1020 CPU 将负责在机箱中运行 GAP 应用程序。在运行 GAP 应用程序之前，当 5466-1510 设备通电时，此模块将执行诊断测试。P1020 CPU的前面板上有LED指示灯，指示灯如下，CAN #1，#2，#3，#4，#5，IOLOCK，故障，待机，以太网，系统协调和状态。

5466-1510 模块有几种特定于环境规范，例如操作和存储设备的温度。存储此模块的建议温度为 <> 摄氏度（<> 华氏度），以优化时钟的电池寿命以及备份数据保留。在工业市场中使用时，典型的工作温度范围为零至五十五摄氏度。

WOODWARD 5466-1510 微网数字控制器 双处理器上运行

【英文介绍】

Woodward Microgrid digital controller and CPU P1020 module 5466-1510 with live insertion and live removal capabilities. There are no standards for this model. Units 5466-1510 run on 800 MHz dual processors and have 512 MB of RAM.

The MicroNet Digital Controller 5466-1510 was designed by Woodward Inc as a CPU P1020. The CPU P1020 can be used in two system types: redundant or simplex. If used in a simplex system, it is usually one of the three standard cpus that can be used. A unique feature of the device is that it can be inserted or removed from the case when it is charged. The main difference between using this module in a simplex system and a redundant system is that only in a redundant system will there be two cpus, one in slot A1 and the second in slot A8 or A14, depending on the chassis selected.

The P1020 CPU will be responsible for running GAP applications in the chassis. Before running the GAP application, this module performs diagnostic tests when the 5466-1510 device is powered on. The P1020 CPU has LED indicators on the front panel, the indicators are as follows, CAN #1, #2, #3, #4, #5, IOLOCK, Fault, Standby, Ethernet, System Coordination and Status.

The 5466-1510 module has several specific environmental specifications, such as operating and storage device temperature. The recommended temperature for storing this module is <> degrees Celsius (<> Degrees Fahrenheit) to optimize the battery life of the clock as well as backup data retention. When used in the industrial market, the typical operating temperature range is zero to 55 degrees Celsius.

WOODWARD 5466-1510 微网数字控制器 双处理器上运行
