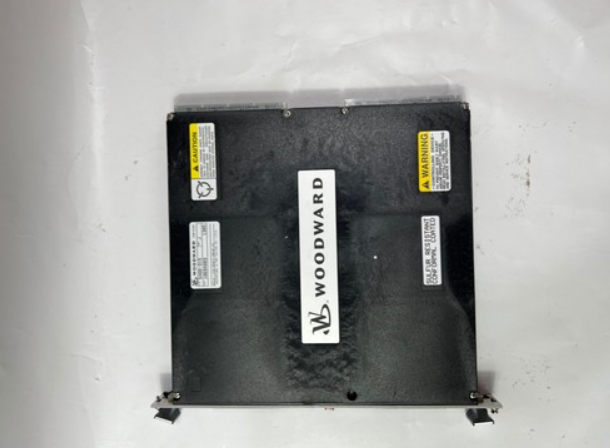

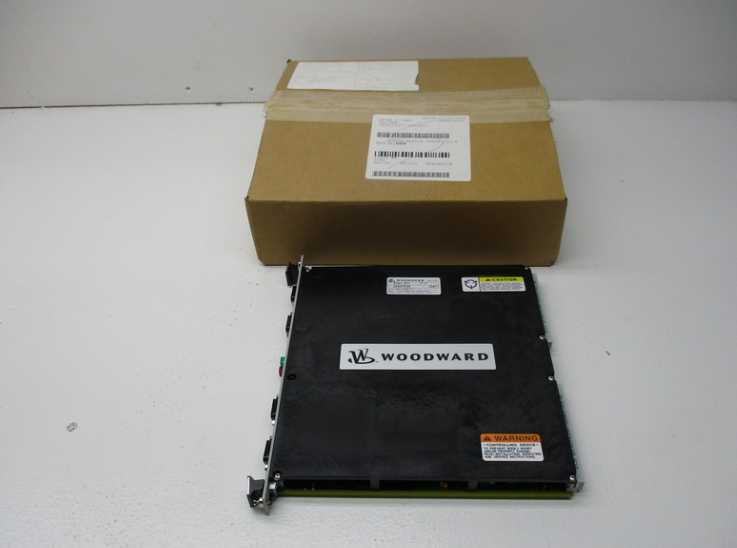

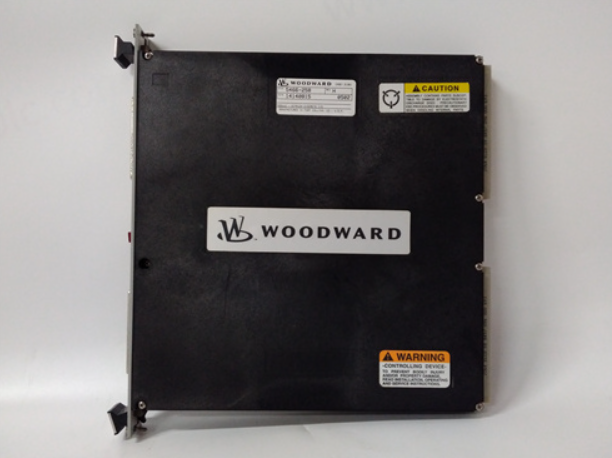

WOODWARD 5466-1246 增强性能模块 可选的扩展一机架配置

【产品详情】

Woodward Inc 的 MicroNet-Plus RTN Cyber Ready 增强性能模块 5466-1246 通常用于可选的扩展一机架配置。将模块安装在机箱中后，5466-1246 单元将位于 CPU1 插槽中。

5466-1246模块是MicroNet Plus实时网络网络就绪增强性能单元。此特定模块不会位于所选机箱的主机架中，而是位于扩展机架中。该模块的主要操作功能是编译来自本地 I/O 模块的数据，并将数据中继到主机架中的 CPU，同时确保机架的故障转移控制接收冗余信号。

5466-1246 模块的一些功能包括服务端口、两个实时网络端口、64 MB 闪存、128 MB DDR RAM 和一个摩托罗拉 MPC5200 处理器。该模块还能够在冗余和单工系统中运行。请注意，当此模块在冗余系统中运行时，每个选定的扩展机箱中最多可以安装两个远程 RTN 模块。RTN 可以初始化为备用或 SYSCON 状态，标记为 SYSCON 的 RTN 模块将控制已安装的扩展机箱。

5466-1246 模块的另一个特点是，通过使用铜缆/光纤以太网交换机和远程 RTN 模块，它可以扩展到最多 <> 个机架系统。该模块有几个它满足的标准，这些标准如下，CSA，ATEX，DNV，LRS，ABS和CE（EMC）。如果您决定重置此模块，需要考虑的一个重要因素是，在重置 RTN 时，它可能会产生健康故障，并立即将看门狗 LED 变为红色。

WOODWARD 5466-1246 增强性能模块 可选的扩展一机架配置

【英文介绍】

Woodward Inc's MicroNet-Plus RTN Cyber Ready Enhanced performance module 5466-1246 is typically used in optional extended-one-rack configurations. After the module is installed in the case, units 5466-1246 will be located in slot CPU1.

Module 5466-1246 is the MicroNet Plus Real-time Networking Network-ready Enhanced performance unit. This particular module is not located in the host rack of the selected chassis, but in the extension rack. The main operational function of this module is to compile the data from the local I/O module and relay the data to the CPU in the host rack, while ensuring that the rack's failover control receives redundant signals.

Some of the features of the 5466-1246 module include service ports, two live network ports, 64 MB flash memory, 128 MB DDR RAM, and a MOTOROLA MPC5200 processor. The module is also capable of operating in redundant and simplex systems. Note that when this module is running in a redundant system, a maximum of two remote RTN modules can be installed in each selected extension chassis. RTN can be initialized to standby or SYSCON state, and the RTN module labeled SYSCON controls the installed expansion chassis.

Another feature of the 5466-1246 module is that it can be scaled up to <> rack systems through the use of copper/Fibre Ethernet switches and remote RTN modules. The module has several standards that it meets, these are as follows, CSA, ATEX, DNV, LRS, ABS and CE (EMC). If you decide to reset this module, an important factor to consider is that when resetting the RTN, it may produce a health failure and immediately turn the watchdog LED red.
