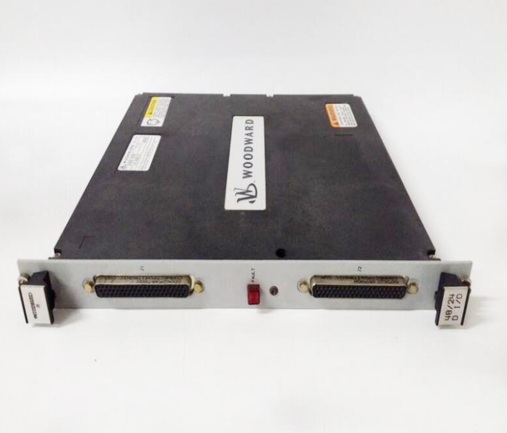

WOODWARD 5466-1115 高密度 I/O 组合模块

【产品详情】

5466-1115 单元设计为高密度 I/O 组合模块，作为 MicroNet 数字控制器系列的一部分。该装置以标准精度运行。模块 5466-1115 主要用于汽轮机市场，可用于替代 5466-253 和 -316 模块。

模块 5466-1115 是 MicroNet 数字控制器系列的一部分。作为该系列的一部分，该模块被设计为高密度速度/模拟 I/O 组合模块。速度/模拟量 I/O 组合模块有两种不同的精度版本，该装置将作为主要用于汽轮机市场的标准精度装置运行。该装置可替代 5466-253 和 -316 型号，用于可单独控制致动的系统中。该单元可以有四个 4-20 mA 输出和 <> 个基于控制器内电路的模拟输入。

虽然 5466-1115 模块没有任何电位计，因此不需要任何校准，但这些功能允许轻松更换模块。而不必调整更换单元，因为由于缺少电位计，这不需要调整。该模块可用于GAP编程。使用 GAP 编程和 GAP 可选输入时，必须保存应用程序，并且应用程序必须重新启动以允许软件和硬件初始化新的输入设置。

5466-1115 模块的另一个主要功能是其板载处理器。该板载处理器用于输入和输出通道的自动校准。该器件的模拟输入将用于整合时间戳功能，该功能对两个高设置测试点和两个低设置点具有五毫秒的分辨率。

当在此模块上使用 4-20 mA 输入信号时，它将使用位于模块板载输入对面的 200 欧姆。 5466-1115 装置的输入通道可能会为其自身的 4-20 mA 传感器供电。

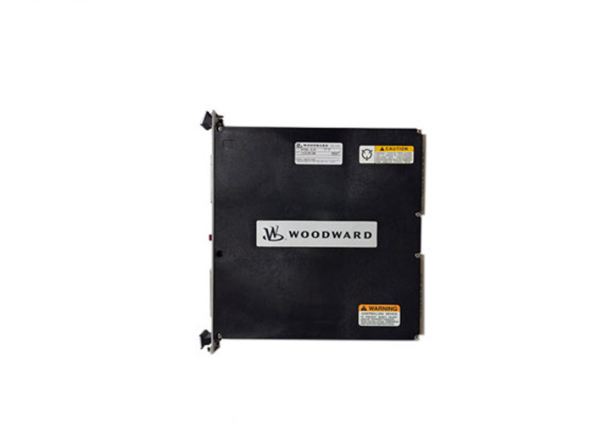

WOODWARD 5466-1115 高密度 I/O 组合模块

【英文介绍】

The 5466-1115 unit is designed as a high-density I/O combination module as part of the MicroNet family of digital controllers. The device operates with standard accuracy. Modules 5466-1115 are primarily intended for the steam turbine market and can be used to replace modules 5466-253 and -316.

Modules 5466-1115 are part of the MicroNet family of digital controllers. As part of this series, the module is designed as a high-density speed/analog I/O combination module. The speed/analog I/O combination module is available in two different precision versions, and the unit will operate as a standard precision unit primarily for the steam turbine market. The unit can replace models 5466-253 and -316 for use in systems where the actuation can be controlled separately. The unit can have four 4-20 mA outputs and <> analog inputs based on circuits within the controller.

Although the 5466-1115 module does not have any potentiometers and therefore does not require any calibration, these features allow for easy module replacement. There is no need to adjust the replacement unit, as this does not need to be adjusted due to the lack of a potentiometer. This module can be used for GAP programming. When using GAP programming and GAP optional inputs, the application must be saved, and the application must be restarted to allow the software and hardware to initialize the new input Settings.

Another major feature of the 5466-1115 module is its onboard processor. The onboard processor is used for automatic calibration of input and output channels. The analog input from the device will be used to integrate the timestamp feature, which has a five-millisecond resolution for two high-setting test points and two low-setting test points.

When a 4-20 mA input signal is used on this module, it will use 200 ohms located opposite the module's onboard input. The input channel of the 5466-1115 device may power its own 4-20 mA sensor.
