WOODWARD 5466-1105 速度/模拟 I/O 组合 具有控制器满足的多个标准

【产品详情】

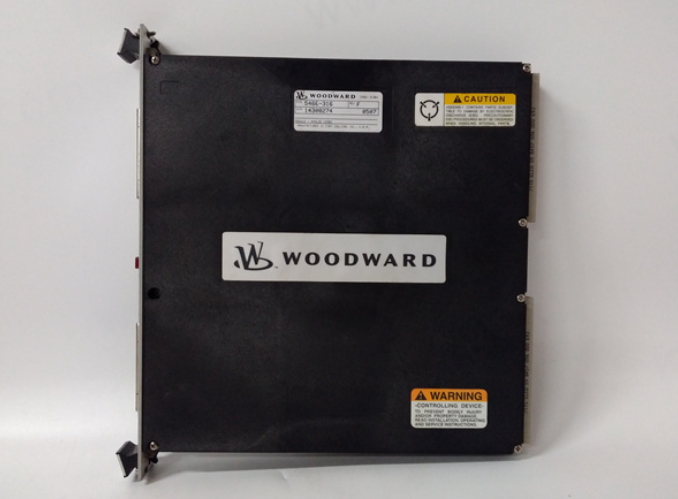

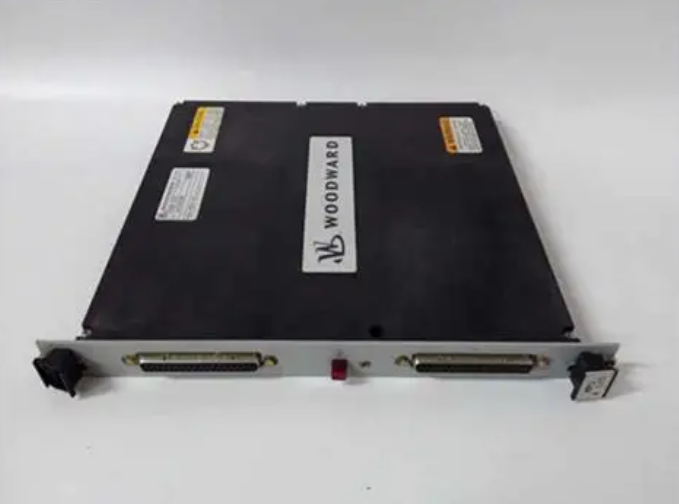

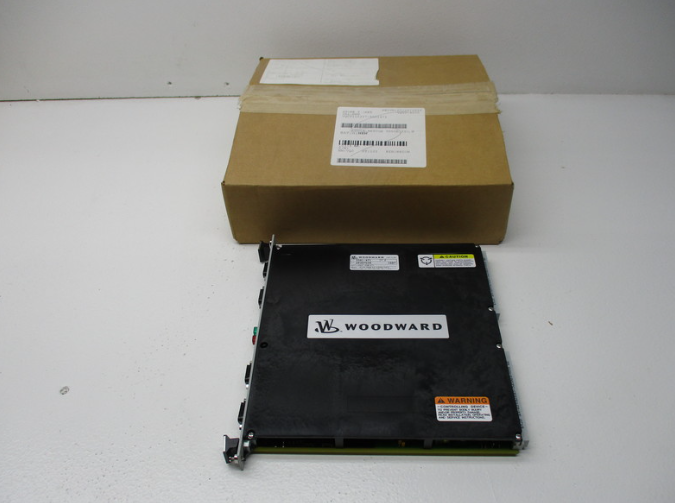

MicroNet 数字控制器 5466-1105 是一款速度/模拟 I/O 组合，具有 4 个 4-20 mA 输出和 4X 速度 12X I/V 可选输入。该单元具有控制器满足的多个标准，即 ATEX、CE （EMC） 和 CSA 标准。

MicroNet 数字控制器 5466-1105 由科罗拉多州柯林斯堡的伍德沃德公司生产，用作速度/模拟 I/O 组合。该特定单元配备 4X 4-20 mA 输出和 4X 速度 12X I/V 可选输入。作为组合模块，该单元可用于MicroNet Plus和MicroNet Simplex配置，包括主配置和扩展配置。5466-1105单元的主要特点之一是配备了板载处理器，该板载处理器主要用于所有输入/输出通道的自动校准。

该型号的模拟输入为4-20 mA，可与两种不同类型的传感器一起使用，这些传感器是自供电（隔离）传感器或回路供电（两线地下）传感器。 如果 5466-1105 型号与非隔离设备一起使用，建议使用隔离环路来断开任何可能达到 <> 伏以上直流电的返回电流路径。

根据伍德沃德为MicroNet Simplex和MicroNet Plus控制器制作的26166V1手册，5466-1105装置被认为是高精度控制器，主要用于燃气轮机标记。该装置还将使用新的GAP模块，当与燃气轮机一起使用时，需要编码器MicroNet 1.00或更高版本，或者与蒸汽轮机一起使用时需要编码器5.08或更高版本。

如果您在单工系统中使用 5466-1105 单元，则每个速度/模拟 I/O 组合模块将通过一个模拟输入 FTM 连接到一个低密度模拟到电缆，将一个高密度模拟电缆连接到一个 26166/26166 模拟 FTM。如果您对本型号有任何疑问，请参考 1 手册的三个版本，<>V<> 手册最适合与本机一起使用。

WOODWARD 5466-1105 速度/模拟 I/O 组合 具有控制器满足的多个标准

【英文介绍】

The MicroNet Digital controller 5466-1105 is a speed/analog I/O combination with four 4-20 mA outputs and 4X speed 12X I/V optional inputs. The unit has several standards that the controller meets, namely ATEX, CE (EMC) and CSA standards.

The MicroNet digital controller 5466-1105 is manufactured by Woodward of Fort Collins, Colorado and is used as a speed/analog I/O combination. This particular unit comes with a 4X 4-20 mA output and a 4X speed 12X I/V optional input. As a combination module, the unit is available for both MicroNet Plus and MicroNet Simplex configurations, including master and extended configurations. One of the main features of the 5466-1105 unit is the onboard processor, which is mainly used for automatic calibration of all input/output channels.

This model has an analog input of 4-20 mA and can be used with two different types of sensors, which are self-powered (isolated) sensors or loop-powered (two-wire underground) sensors. If the 5466-1105 model is used with a non-isolated device, it is recommended to use an isolated loop to disconnect any return current path that may reach DC above <> volts.

According to Woodward's 26166V1 manual for MicroNet Simplex and MicroNet Plus controllers, the 5466-1105 device is considered a high precision controller, primarily for gas turbine marking. The unit will also use the new GAP module, which requires encoder MicroNet version 1.00 or higher when used with a gas turbine, or encoder version 5.08 or higher when used with a steam turbine.

If you are using a 5466-1105 unit in a simplex system, each speed/analog I/O combination module will be connected to a low density analog to cable via an analog input FTM and a high density analog cable to a 26166/26166 analog FTM. If you have any questions about this model, please refer to the three versions of the 1 manual, the <>V<> manual is best for use with the unit.
