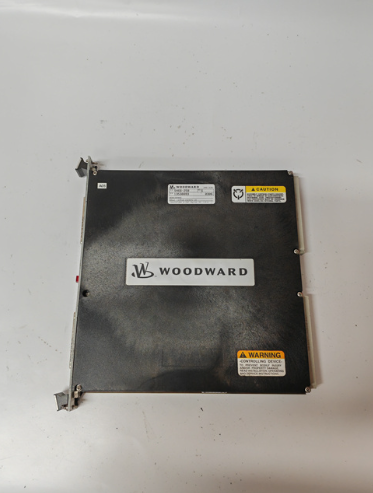

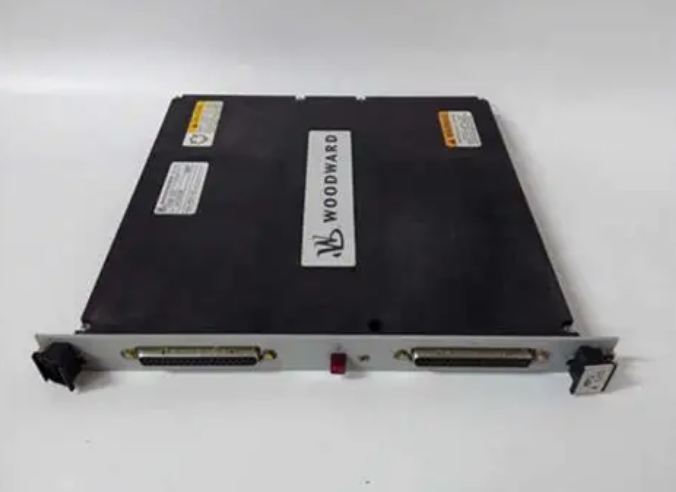

WOODWARD 5466-1046 用于网络安全措施 数字控制器

【产品详情】

伍德沃德微网加RTN单元5466-1046用于网络安全措施，由于缺少扩展机箱，不能与CPU5200L设备一起使用。5466-1046装置可以重置，这样做会立即将WDOG设置为红色亮起。

5466-1046模块由伍德沃德公司生产，作为其MicroNet数字控制器系列的一部分，该系列设计为MicroNet Plus Cyber CPU5200单元。作为MicroNet Plus Cyber CPU5200型号，该板可用于加载控制软件，也称为GAP软件。该模块还在前面板上配备了许多不同的 LED，其中一些 LED 如下：待机、看门狗、链路、运行和系统。 看门狗 LED 的目的是指示运行状况监视器故障何时跳闸，如果跳闸，LED 将为红色。

根据 5466-1046 模块使用的冗余模式，将有一个或两个 CPU 单元，通常冗余模式将指示需要两个 CPU 单元。无论是否安装了两个CPU单元中的一个，如果接收到+24 V远程复位信号，它们都会复位。信号将被路由到需要复位的相应CPU的光隔离输入。请注意，如果要重置 CPU，它将在创建运行状况故障时触发看门狗 LED。

型号 5466-1046 不能与 RTN 模块一起使用，因为没有可用的 RTN 端口。RTN 模块需要一个扩展机箱，如果没有端口允许扩展，RTN 模块如果连接到CPU5200设备，可能会出现故障。

WOODWARD 5466-1046 用于网络安全措施 数字控制器

【英文介绍】

Woodward Microgrid plus RTN unit 5466-1046 is used for network security measures and cannot be used with CPU5200L devices due to the lack of expansion chassis. The 5466-1046 device can be reset, and doing so will immediately set the WDOG to light up red.

The 5466-1046 modules are manufactured by Woodward as part of their MicroNet family of digital controllers, which are designed as MicroNet Plus Cyber CPU5200 units. As a MicroNet Plus Cyber CPU5200 model, the board can be used to load control software, also known as GAP software. The module is also equipped with a number of different leds on the front panel, some of which are as follows: Standby, Watchdog, Link, Run and System. The purpose of the watchdog LED is to indicate when the health monitor failure has tripped, and if it has tripped, the LED will be red.

Depending on the redundancy mode used by the 5466-1046 module, there will be one or two CPU units, and usually the redundancy mode will indicate that two CPU units are required. Whether or not one of the two CPU units is installed, they reset if a +24 V remote reset signal is received. The signal will be routed to the optical isolated input of the corresponding CPU that needs to be reset. Note that if you want to reset the CPU, it will trigger the watchdog LED when a health failure is created.

Models 5466-1046 cannot be used with RTN modules because there is no RTN port available. The RTN module requires an expansion chassis. If there is no port to allow expansion, the RTN module may fail if connected to the CPU5200 device.

WOODWARD 5466-1046 用于网络安全措施 数字控制器
