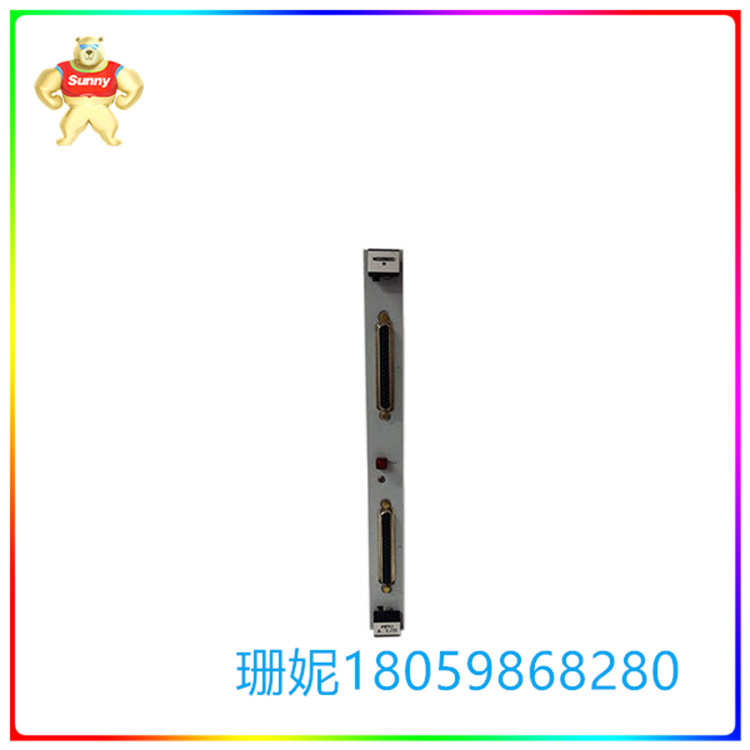

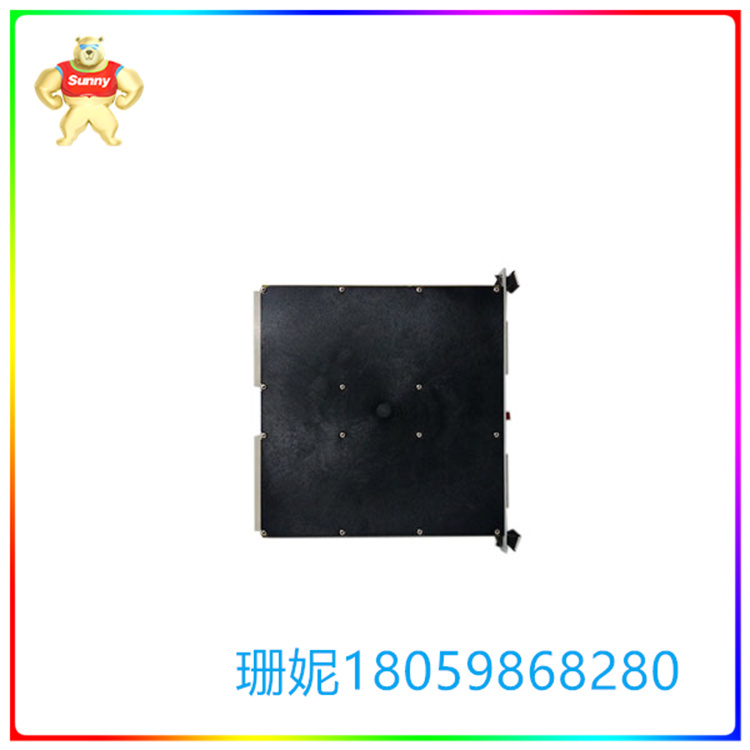

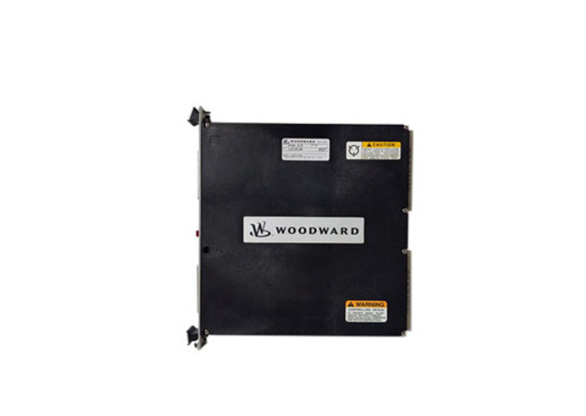

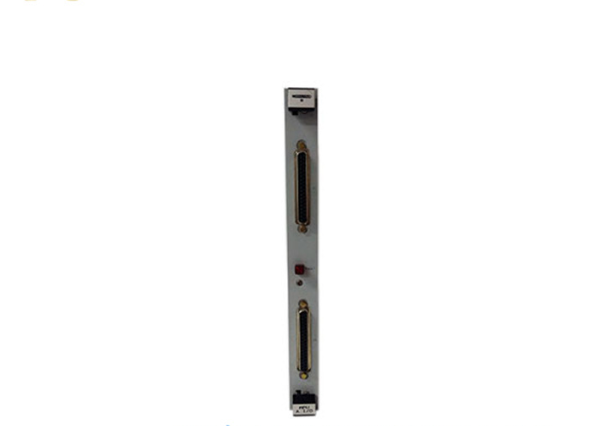

5466-1001 微网数字控制器电源模块 WOODWARD

【产品详情】

伍德沃德微网数字控制器电源模块5466-1001的电源输入为110 VAC/125 VDC，也是一个MicroNet-Plus单元。该装置已通过 LVD、EMC 和 ATEX 认证。有关 5466-1001 的信息，请参见 26166V2 手册。

伍德沃德型号 5466-1001 是 MicroNet 数字控制器系列的电源模块。有两种类型的控制器，MicroNet Simplex和MicroNet-Plus，这个特定的单元是MicroNet-Plus控制器。当控制器连接到机箱时，它将在两插槽电源上以一百一十伏的驱动电流或一百二十五伏的直流电运行。该装置也是安全完整性等级（SIL）批准的MicroNet Plus装置。

作为电源模块，5466-1001 在安装时必须断开电源。当安装新的电源单元时，电路板边缘必须在卡导轨中对齐，当主板和插槽单元接触时，这意味着电路板已正确连接。本机前面板上有四个 LED、一个过热 LED、一个输入和一个电源故障，以及一个正常 LED。检测到故障时，LED 将常亮或闪烁。

5466-1001 微网数字控制器电源模块 WOODWARD

【英文介绍】

The Woodward Microgrid Digital Controller Power module 5466-1001 has a power input of 110 VAC/125 VDC and is also a MicroNet-Plus unit. The unit is LVD, EMC and ATEX certified. For information on 5466-1001, see the 26166V2 manual.

The Woodward Model 5466-1001 is a power module for the MicroNet family of digital controllers. There are two types of controllers, MicroNet Simplex and Micronet-Plus, and this particular unit is the MicronET-Plus controller. When the controller is connected to the case, it will operate at either 110 volts of drive current or 125 volts of direct current on a two-slot power supply. The device is also a Safety Integrity Level (SIL) approved MicroNet Plus device.

As a power module, 5466-1001 must be disconnected from the power supply during installation. When installing a new power supply unit, the board edges must be aligned in the card rail, which means that the board is properly connected when the motherboard and slot unit touch. On the front panel of the unit are four leds, one overheating LED, one input and one power failure, and one normal LED. When a fault is detected, the LED will be steady on or blink.

5466-1001 微网数字控制器电源模块 WOODWARD
