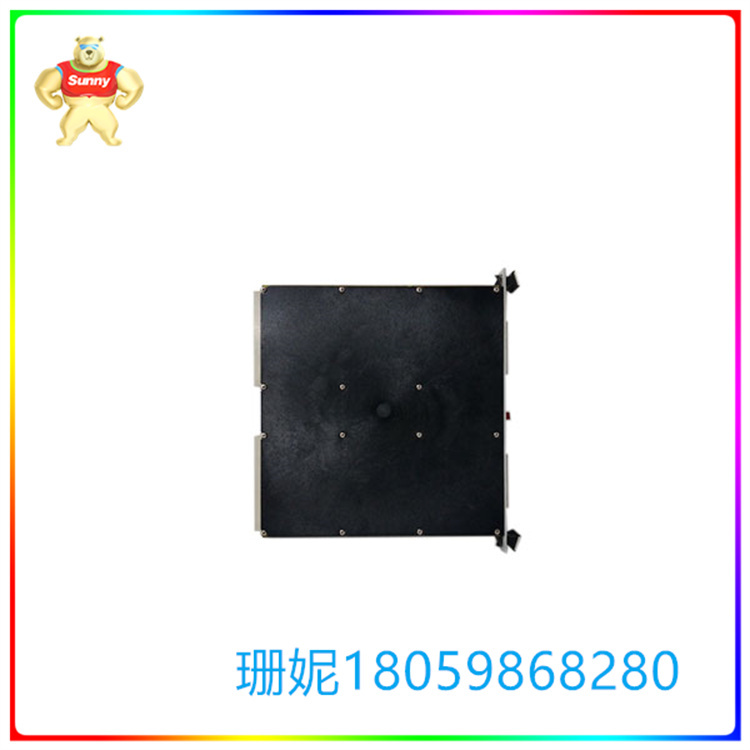

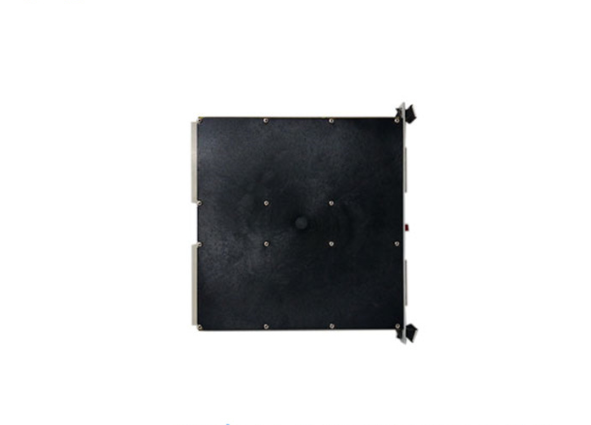

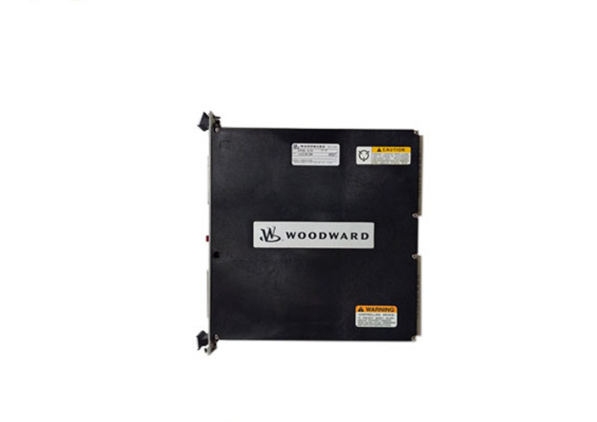

WOODWARD 5466-1000 电源单元 微网数字控制模块

【产品详情】

伍德沃德微网数字控制模块 5466-1000 是一个电源单元，最多占用两个插槽，使用 24 伏直流输入运行。此特定型号是MicroNet-Plus控制器，并具有CSA认证。

MicroNet 数字控制器模块 5466-1000 是一个电源单元，连接时最多可以占用两个插槽。控制器可以编程到许多不同的应用中，以控制水轮机/燃气轮机和燃气/柴油发动机。该单元将与具有单工或冗余CPU的MicroNet-Plus型号一起使用。5466-1000模块是SIL认证的MicroNet-Plus单元之一，可与“配套”安全系统一起使用。

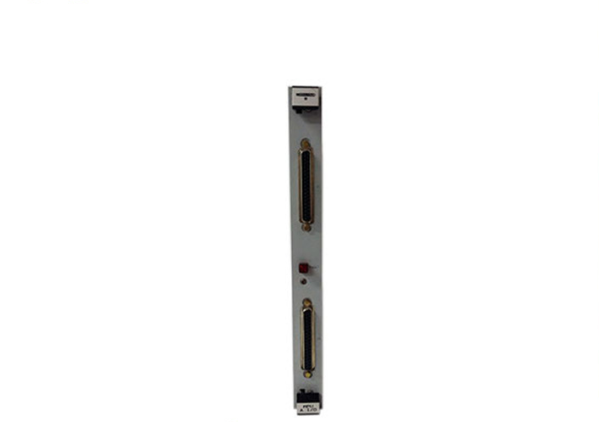

5466-1000 设备的前面板最多有三个 RS-485 端口和一个故障指示灯，如果有 I/O 锁定，该指示灯将呈红色亮起。LED亮起有两种方式，闪烁或稳定，当LED常亮时，表示CPU和执行器之间有错误，它们没有正常通信;当LED闪烁时，表示正在发生内部问题，建议更换5466-1000型号。

由于 5466-1000 模块是电源模块，因此在安装新单元时，请确保电路板的所有边缘完全对齐，并缓慢地将设备推入插槽中，直到主板和模块上的连接器相互接触。另一个重要注意事项是，在安装模块之前，必须断开电源。

WOODWARD 5466-1000 电源单元 微网数字控制模块

【英文介绍】

The Woodward Microgrid Digital Control module 5466-1000 is a power supply unit that occupies up to two slots and operates using a 24 volt DC input. This particular model is a MicroNet-Plus controller and has CSA certification.

The MicroNet digital controller module 5466-1000 is a power supply unit that can occupy up to two slots when connected. Controllers can be programmed into many different applications to control water/gas turbines and gas/diesel engines. The unit will be used with MicroNet-Plus models with simplex or redundant cpus. The 5466-1000 module is one of the SIL certified MicroNet-Plus units that can be used with "companion" security systems.

The front panel of the 5466-1000 device has up to three RS-485 ports and a fault indicator that lights up red if there is an I/O lock. There are two ways for the LED to light up, flashing or stable, when the LED is steady on, it means that there is an error between the CPU and the actuator, they do not communicate normally; When the LED blinks, it indicates that an internal problem is occurring, and it is recommended to replace the 5466-1000 model.

Since the 5466-1000 module is a power module, when installing the new unit, make sure all edges of the board are perfectly aligned and slowly push the device into the slot until the connectors on the motherboard and module touch each other. Another important note is that the power supply must be disconnected before installing the module.

WOODWARD 5466-1000 电源单元 微网数字控制模块
