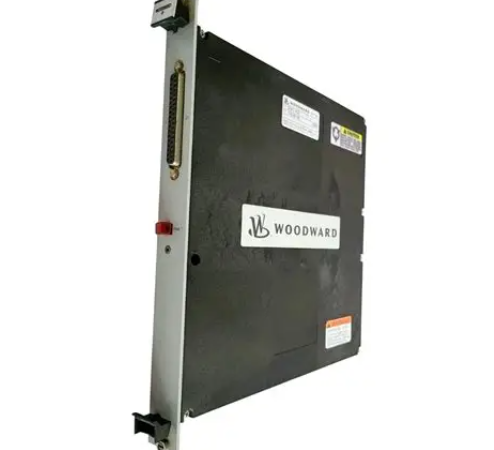

WOODWARD 5501-432 监控逻辑电源和微控制器活动

【产品详情】

200 mA 伍德沃德 2 通道执行器控制器 5501-432 型，带看门狗硬件监控逻辑电源和微控制器活动。

作为NetCon控制器系列的一部分，5501-432是由伍德沃德制造的2通道执行器控制模块（200mA版本）。该系列有多个版本，型号部件号表示模块的最大输出电流能力。

10-25 的尺寸为 9.75 x 1.5501 x 432（英寸），功率要求额定值为满量程 @ 0 °C 的 25.25% 的位置精度额定值。 此位置精度等级不包括传感器误差。它的输出电流容差为满量程的 ±1%，电流回读容差为满量程的 ±5%。

5501-432 的每个执行器通道上最多可以使用两个位置反馈设备（LVDT、RVDT）。该模块具有多种故障检测功能，包括与激励、反馈和驱动器相关的错误报警。位置误差、逻辑电源、微控制器活动和CPU模块也受到监控。

如果控制器未与CPU模块通信，则可以看到稳定的红色故障指示灯。如果与 CPU 的通信丢失，输出将关闭。如果 LED 闪烁，则表示存在内部问题。如果出现内部问题，建议更换模块。

WOODWARD 5501-432 监控逻辑电源和微控制器活动

【英文介绍】

200 mA Woodward 2-channel actuator Controller Model 501-432 with watchdog hardware to monitor logic power and microcontroller activity.

Part of the NetCon controller family, the 551-432 is a 2-channel actuator control module (200mA version) manufactured by Woodward. The series is available in several versions, with the model part number indicating the maximum output current capability of the module.

The size of the 10-25 is 9.75 x 1.5501 x 432 (in) and the power requirement rating is 25.25% position accuracy rating of full scale @ 0 °C. This position accuracy class does not include sensor errors. It has an output current tolerance of ±1% of full scale and a current readback tolerance of ±5% of full scale.

Up to two position feedback devices (LVDT, RVDT) can be used on each actuator channel of the 5501-432. The module has a variety of fault detection functions, including excitation, feedback, and driver related error alarms. Position errors, logic power, microcontroller activity, and CPU modules are also monitored.

If the controller is not communicating with the CPU module, a steady red fault indicator is displayed. If communication with the CPU is lost, the output is turned off. If the LED blinks, it indicates an internal problem. If an internal problem occurs, replace the module.

WOODWARD 5501-432 监控逻辑电源和微控制器活动
