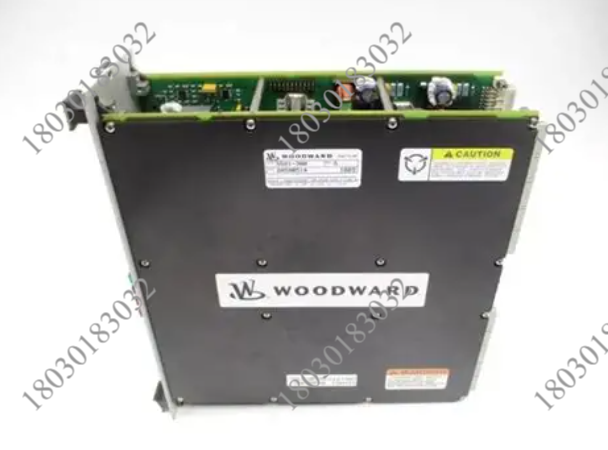

WOODWARD 5501-431  2通道执行器控制器

【产品详情】

伍德沃德NetCon的单元5501-431 100 mA 2通道执行器控制器，反馈电路输入阻抗为200 kΩ

5501-431 由 Woodward 制造并作为其 NetCon 控制器系列的一部分发布，是一款 2 通道执行器控制模块（100mA 版本）。该系列有多个版本，型号部件号表示模块的最大输出电流能力。这种双通道型号的每个通道都控制一个比例或集成、气动或液压机械执行器。

5501-431 尺寸为 261 x 248 x 26 mm，输出电流容差为满量程的 1%。其额定功率要求为 +5 V @ 0.5 A、+24 V @ 1 A，位置精度额定值为满量程 @ 0 °C 的 25.25%。 此位置精度等级不包括传感器误差。

5501-431 的每个执行器通道上最多可以使用两个位置反馈设备（LVDT、RVDT）。该模块具有多种故障检测功能，包括与激励、反馈和驱动器相关的错误报警。位置误差、逻辑电源、微控制器活动和CPU模块也受到监控。

5501-431 有一个红色故障 LED，用于指示设备状态中的故障。如果控制器不与CPU模块通信，则可以看到常亮的LED。如果 LED 闪烁，则表示存在内部问题，应更换模块。

有关5501-431执行器控制模块（100mA版本）的信息，包括规格和安装说明（包括完整的现场接线信息），可在MicroNet Simplex & MicroNet Plus手册26166V2中在线找到。

WOODWARD 5501-431  2通道执行器控制器

【英文介绍】

Woodward NetCon Unit 5501-431 100 mA 2-channel actuator controller with feedback circuit input impedance of 200 kΩ

Manufactured by Woodward and released as part of their NetCon controller family, the 5501-431 is a 2-channel actuator control module (100mA version). The series is available in several versions, with the model part number indicating the maximum output current capability of the module. Each channel of this two-channel model controls a proportional or integrated, pneumatic or hydraulic mechanical actuator.

The 5501-431 measures 261 x 248 x 26 mm and has an output current tolerance of 1% of full scale. The rated power requirements are +5 V @ 0.5 A, +24 V @ 1 A, and the position accuracy rating is 25.25% of full scale @ 0 °C. This position accuracy class does not include sensor errors.

Up to two position feedback devices (LVDT, RVDT) can be used on each actuator channel of the 5501-431. The module has a variety of fault detection functions, including excitation, feedback, and driver related error alarms. Position errors, logic power, microcontroller activity, and CPU modules are also monitored.

The 5501-431 has a red fault LED to indicate a fault in the device status. If the controller is not communicating with the CPU module, you can see a steady LED. If the LED blinks, there is an internal problem and the module should be replaced.

Information about the 5501-431 Actuator control module (100mA version), including specifications and installation instructions, including complete field wiring information, is available online in the MicroNet Simplex & MicroNet Plus manual 26166V2.

WOODWARD 5501-431  2通道执行器控制器
