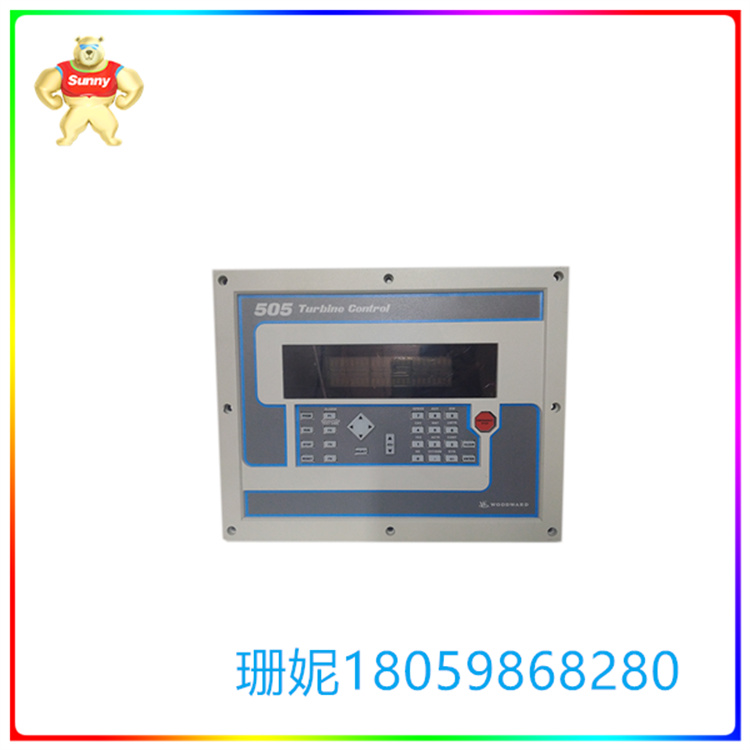

9907-163 数字调速器 带单量程或分量程执行器

【产品详情】

Woodward 505 数字调速器，用于带单量程或分量程执行器的蒸汽轮机。部件 9907-163 具有 18-32 VDC 电源，是基于微处理器的控制器。

该设备属于美国历史最悠久，领先的制造公司伍德沃德公司开发的系列。这些单元被指定为 505/505E 系列数字控制单元，用于操作蒸汽轮机中的一个或两个分体式执行器，以驱动入口蒸汽阀。

这是传统的 AC 505、DC 505 组件。它被评为 1 类 2 区位置。

9907-163 型号是一个调速器单元，能够处理所有涡轮机运行参数。这些型号配备了内部微处理器模块，使他们能够控制涡轮机以及其他类似设备，例如涡轮发电机或膨胀器模块。

9907-163 配备了一系列印刷电路板，允许设备运行和处理命令。 这些板由设备框架保护，但是，可以选择为该单元提供额外的保护层。这包括NEMA 4X分级保护框架。连接后，它仍然能够安全可靠地安装在控制面板系统中。但是，可接受的环境温度范围略有下降，从65°C的高强度降至55°C。

为了正确配置机组和涡轮机的规格，操作员必须通过集成控制面板输入这些更改。此面板显示两行文本，每行 24 个字符。

9907-163 数字调速器 带单量程或分量程执行器

【英文介绍】

Woodward 505 digital governor for steam turbines with single or split range actuators. Part 9907-163 has an 18-32 VDC power supply and is a microprocessor-based controller.

The device belongs to a family developed by the Woodward Company, America's oldest and leading manufacturing company. These units are designated as Series 505/505E digital control units and are used to operate one or both split actuators in the steam turbine to drive the inlet steam valve.

This is the traditional AC 505, DC 505 components. It is rated as a Class 1 Area 2 location.

The model 9907-163 is a governor unit capable of handling all turbine operating parameters. These models are equipped with internal microprocessor modules that allow them to control turbines as well as other similar devices, such as turbine generators or expander modules.

The 9907-163 is equipped with a range of printed circuit boards that allow the device to run and process commands. These boards are protected by the device frame, however, there is an option to provide an additional layer of protection for the unit. This includes the NEMA 4X tiered protection framework. Once connected, it can still be safely and reliably installed in the control panel system. However, the acceptable ambient temperature range dropped slightly, from a high intensity of 65°C to 55°C.

In order to properly configure the specifications of the units and turbines, the operator must enter these changes through the integrated control panel. This panel displays two lines of text, each of 24 characters.

9907-163 数字调速器 带单量程或分量程执行器
