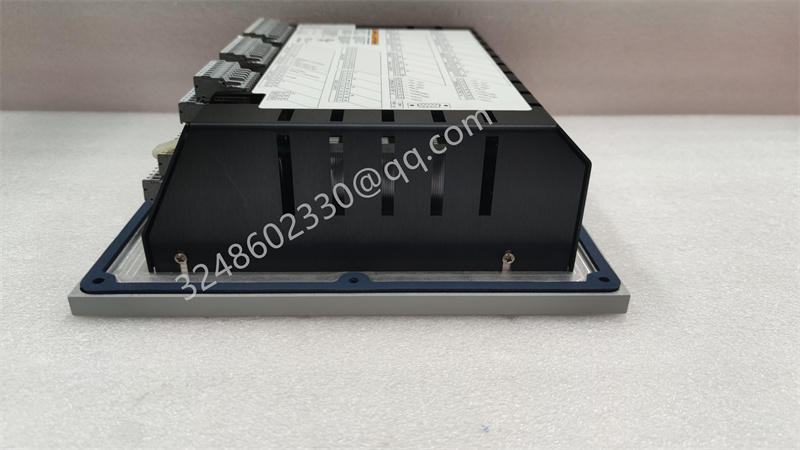

9907-162 基于微处理器的控制器 WOODWARD

【产品详情】

Part 9907-162 具有 18-32 VDC 电源，是基于微处理器的控制器，来自 Woodward 505 系列数字调速器，适用于带单量程或分量程执行器的蒸汽轮机。伍德沃德是历史最悠久、领先的数字控制设备制造商之一，设计了 505 和 505E 型号的控制单元。这些设备采用基于微处理器的设置构建，以正确操作和简化各种规模的蒸汽轮机操作。

该单位以数字 ID 9907-162 指定。 该设备能够通过使用一到两个分式执行器来运行涡轮机，以驱动入口蒸汽阀。9907-162 是伍德沃德 505 模块之一，设计用于操作蒸汽轮机的单提取和/或准入应用。

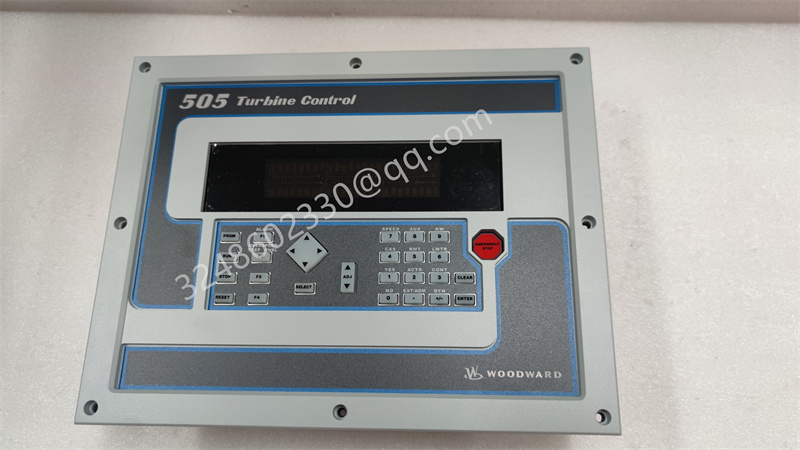

9907-162 型号以及这些系列的其他型号设计为可由现场操作员现场编程。这可以通过设备正面的完全集成的操作员控制面板来实现。它是一个信息文本显示，有两行可用，每行有 24 个字符。

9907-162 型号还包括可选的 NEMA 4X 保护外壳。虽然它确实可以保护内部印刷电路免受侵入性材料的影响，但附加保护框架限制了模型可以安全运行的热量。该装置还设计为系统关闭的第一个警报指示器，从而减少故障排除所花费的时间。

9907-162 基于微处理器的控制器 WOODWARD

【英文介绍】

Part 9907-162, with 18-32 VDC power supply, is a microprocessor-based controller from the Woodward 505 series digital governor for steam turbines with single or split range actuators. Woodward is one of the oldest and leading manufacturers of digital control equipment, designing control units for the 505 and 505E models. These devices are built with a microprocessor-based setup to properly operate and simplify steam turbine operations of all sizes.

The unit is specified with the number ID 9907-162. The device is capable of running the turbine by using one or two split actuators to drive the inlet steam valve. The 9907-162 is one of the Woodward 505 modules designed for single extraction and/or access applications operating steam turbines.

Models 9907-162, as well as other models in these families, are designed to be field-programmed by field operators. This can be achieved through a fully integrated operator control panel on the front of the device. It is an informational text display with two lines available, each with 24 characters.

Models 9907-162 also include an optional NEMA 4X protective housing. While it does protect the internal printed circuit from invasive materials, the additional protective frame limits the amount of heat the model can safely operate. The device is also designed to be the first warning indicator of system shutdown, thus reducing the time spent on troubleshooting.

9907-162 基于微处理器的控制器 WOODWARD
