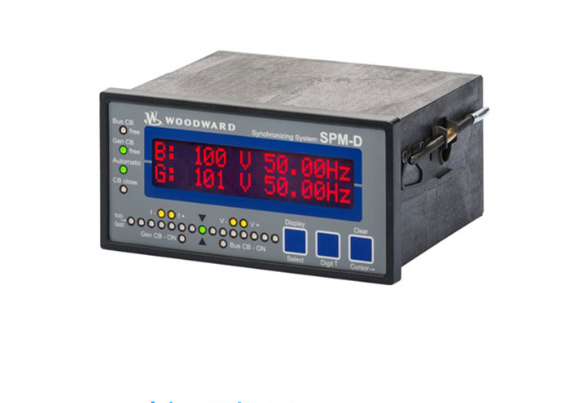

8440-1027 SPM-D21/PSVX同步器模块

【产品详情】

型号8440-1027是SPM-D21/PSVX同步器模块的一部分。SPM-D21/PSVX型号具有多种特性和功能，包括发电机和电源断路器同步，以及负载控制和功率因数控制同步，以及发电机和电源保护。这些单元都设计了一个微处理器作为这些单元的操作基础。

8440-1027配备了自动频率匹配，以及电压和相位匹配能力。该装置还安装了几种参数调整模式，标记为检查，运行，关闭和允许。

8440-1027型号能够进行不同的操作，例如主并行操作，隔离操作和死总线操作。主要的并行功能包括一个真正的均方根功率计算，一个真正的功率控制，然后是软关机和功率因数控制。隔离的功能是电压和频率控制。死总线功能处理发电机断路器和主断路器的合闸。

8440-1027型号的众多操作功能之一是多级密码保护，该型号还允许您调整语言，控制模型上的可调节语言是德语或英语。重要的是要注意，您的控制器可以通过PC连接，如果通过PC连接，您可以通过PC连接或直接通过控制器操作和配置控制器。正常运行控制器所需的电源是24伏直流电(正负25%)。

8440-1027 SPM-D21/PSVX同步器模块

【英文介绍】

Model 8440-1027 is part of the SPM-D21/PSVX synchronizer module. The SPM-D21/PSVX model has a variety of features and functions, including generator and power breaker synchronization, as well as load control and power factor control synchronization, and generator and power supply protection. Each of these units is designed with a microprocessor as the basis for the operation of these units.

The 8440-1027 is equipped with automatic frequency matching, as well as voltage and phase matching capabilities. The device is also equipped with several parameter adjustment modes, labeled Check, Run, Off, and Allow.

The 8440-1027 model is capable of different operations, such as master parallel operation, isolated operation, and dead bus operation. The main parallel features include a true RMS power calculation, a true power control, followed by soft shutdown and power factor control. The isolation function is voltage and frequency control. The dead bus function handles the closing of the generator circuit breaker and the main circuit breaker.

One of the many operational features of the model 8440-1027 is multi-level password protection, the model also allows you to adjust the language, the adjustable language on the control model is German or English. It is important to note that your controller can be connected via a PC, and if connected via a PC, you can operate and configure the controller via a PC or directly through the controller. The power required for proper operation of the controller is 24 volts direct current (plus or minus 25%).
