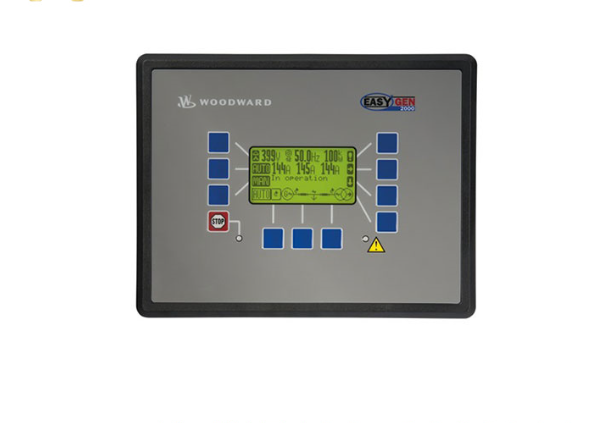

EasyGen-2300-5 紧凑型发电机组控制器

【产品详情】

EasyGen-2300-5是由伍德沃德制造的组件，作为EasyGen-2000系列的一部分。该系列紧凑型发电机组控制器与人机界面设计为紧凑，负担得起的控制/保护选项，同步和负载共享多达16个发电机组隔离(孤岛运行)或在一个单位与公用事业并联运行。

为了在保持燃油效率的同时保持适当的旋转储备，EasyGen-2300-5可以使用多种发动机尺寸。它集成了负载相关的启动/停止编程，允许最终用户根据负载需求的变化灵活地启动或离线发电机组。

EasyGen-2300-5可与工业环境中使用的多个接口一起工作。这包括但当然不限于;Modbus RTU (PLC/HMI/SCADA.)和Profibus及以太网通信采用专用网关

EasyGen-2300-5提供异步和同步发电机支持，发电机保护和电源监控，进程相关的启动/停止逻辑，以及通过LogicsManager进行复杂系统控制的布尔可编程性等功能，并支持11种独立的语言和标准。

EasyGen-2300-5重约800克。该控件的尺寸为219 x 171 x 61毫米。该装置具有CE标志和UL认证，具有1级精度。在95%的环境湿度下，它的工作温度为-20至+70摄氏度，不凝结。

EasyGen-2300-5 紧凑型发电机组控制器

【英文介绍】

The EasyGen-2300-5 is a component manufactured by Woodward as part of the EasyGen-2000 series. The series of compact generator set controllers with HMI are designed with compact, affordable control/protection options, synchronization and load sharing for up to 16 generator sets isolated (operating in islands) or operating in parallel with utilities in one unit.

In order to maintain proper rotation reserve while maintaining fuel efficiency, the EasyGen-2300-5 can be used in a variety of engine sizes. It integrates load dependent start/stop programming, allowing the end user the flexibility to start or offline the generator set as the load demands change.

The EasyGen-2300-5 works with multiple interfaces used in industrial environments. This includes but is certainly not limited to; Modbus RTU (PLC/HMI/SCADA.) and Profibus and Ethernet communication using a dedicated gateway

The EasyGen-2300-5 offers features such as asynchronous and synchronous generator support, generator protection and power monitoring, process-related start/stop logic, and Boolean programmability for complex system control via LogicsManager, and supports 11 independent languages and standards.

The EasyGen-2300-5 weighs about 800 grams. The control measures 219 x 171 x 61 mm. The device is CE marked and UL certified with Class 1 accuracy. At 95% ambient humidity, it operates at -20 to +70 degrees Celsius without condensation.

EasyGen-2300-5 紧凑型发电机组控制器
