EasyGen-2200-5 设计用于多单元操作的发电机组

【产品详情】

EasyGen-2200-5是Woodward easYgen-2000系列的一部分。EasyGen-2200-5设计用于多单元操作的发电机组(Genset)控制。它为隔离运行(岛)或单个机组与公用事业并联运行的多达16台发电机组提供负载共享保护/控制。该产品的FlexApp(™)功能允许配置操作断路器的数量:无，GCB(发电机断路器)，和双GCB和MCB(微型断路器)。该单位还提供布尔运算符和可编程定时器，以允许修改控制和继电器功能。

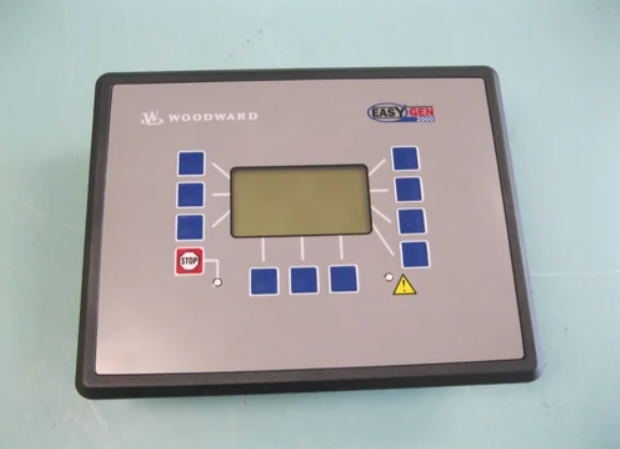

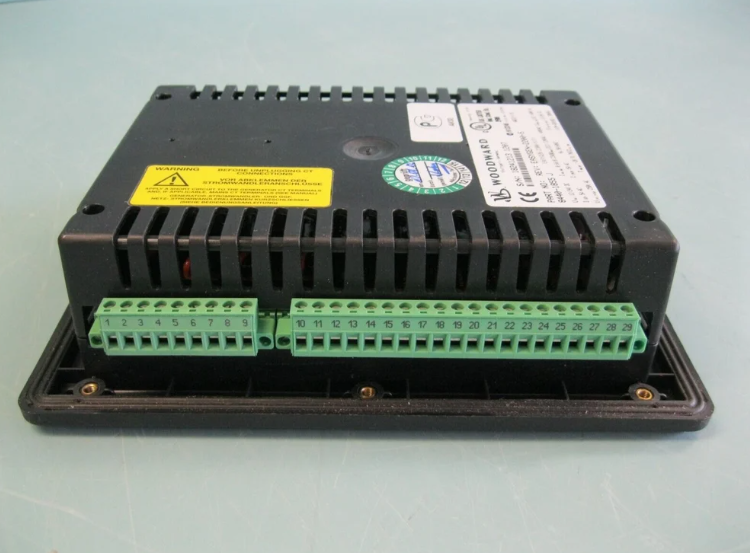

EasyGen-2200-5由塑料外壳组成，带有HMI显示器(带软键的LC显示器)，模拟输出和发电机CT端子，电源/发电机/母线PT端子，USB/RS-232服务端口连接器，继电器输出端子，8个离散输入端子，CAN总线接口端子和MPU输入。

EasyGen-2200-5具有多种操作模式，包括自动，停止，手动和负载/空载测试模式。断路器控制包括开闭控制、断路器监控、相位匹配和滑移频率。该装置通过接口和系统的模拟/离散输入提供速度、电压、频率、功率、功率因数设定点和无功功率的远程控制调节。该设备支持11种语言，可通过其前面板或PC连接进行配置。它有多级密码保护位于前面板的控制。

EasyGen-2200-5 设计用于多单元操作的发电机组

【英文介绍】

The EasyGen-2200-5 is part of Woodward's easYgen-2000 series. The EasyGen-2200-5 is designed for multi-unit operation of generator set (Genset) control. It provides load sharing protection/control for up to 16 generator sets operating in isolation (island) or with a single unit operating in parallel with a utility. The FlexApp(™) feature of this product allows configuration of the number of operating circuit breakers: none, GCB(generator circuit breaker), and dual GCB and MCB(micro circuit breaker). The unit also offers Boolean operators and programmable timers to allow modification of control and relay functions.

The EasyGEN-220-5 consists of a plastic housing with HMI display (LC display with soft keys), analog output and generator CT terminals, power/generator/bus PT terminals, USB/RS-232 service port connectors, relay output terminals, 8 discrete input terminals, CAN bus interface terminals, and MPU inputs.

The EasyGen-2200-5 has a variety of operating modes including automatic, stop, manual and load/no-load test modes. Circuit breaker control includes on-off control, circuit breaker monitoring, phase matching and slip frequency. The unit provides remote control regulation of speed, voltage, frequency, power, power factor setpoints and reactive power through interfaces and analog/discrete inputs to the system. The device supports 11 languages and can be configured via its front panel or PC connection. It has multi-level password protection located on the front panel control.
