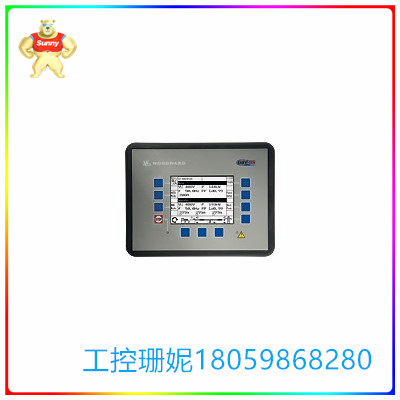

8440-2230 并联发电机组控制器 实现标准化

☆型号： 8440-2230 并联发电机组控制器 实现标准化

【产品详情】

特性和功能

伍德沃德的 easYgen-3500XT 系列并联发电机组控制器为 OEM 开关设备制造商、发电机成套商和系统集成商提供了卓越的多功能性和价值。easYgen-3500XT 将完整的发动机-发电机控制和保护与先进的点对点并联功能和创新功能结合在一个坚固、有吸引力和用户友好的封装中。其集成的 LogicsManager™ 可编程逻辑功能提供了出色的应用灵活性，通常无需额外的 PLC 控制，但可以根据需要轻松与 SCADA 或基于 PLC 的控制系统集成。

easYgen-3500XT 的优势在于，您可以在单个经济实惠的发电机组控制器上实现标准化，适用于许多不同的分布式发电应用——从独立的应急备用电源到具有多个公用设施馈电和联闸的复杂分段配电系统中多达 32 台发电机组的并联负载共享。

伍德沃德的 easYgen-3400XT/3500XT K51 是一款用途广泛的发电机组控制装置，具有完整的发动机-发电机控制和保护、发电机组断路器同步、死母线仲裁和同步/压降负载分配功能。easYgen-3500XT 提供 P1 和 P2 两种封装，均兼容 GC-3400XT。两种封装均采用坚固的金属外壳，不带显示屏，适合后面板安装。精密的触摸屏远程面板 （RP-3000XT） 作为操作器控制面板与它们相辅相成。

easYgen-3500XT的常见应用：

紧急备用：数据中心、医院、商业和工业设施

分布式发电 （DG）：用于峰值需求响应的公用事业可调度电力

岛屿主用电力：石油和天然气勘探、海洋、偏远村庄、租赁/移动

微电网：军事、政府、净零社区、大学

公用事业并联：调峰、需求削减

热电联产 （CHP）：废水处理、沼气生产/密封

开关设备升级：发电机控制改造以增加负载共享/并联能力

easYgen-3500XT 特点与优势

所有 easYgen-3500XT 系列型号都包括以下标准功能：

真有效值电压和电流检测（发电机、总线和市电），可降低对谐波的敏感性

与发动机ECU的CAN网络通信/控制（支持标准SAE-J1939协议和多种专有发动机OEM协议）

串行Modbus RTU（从站）通信，用于SCADA报警和外部控制

使用伍德沃德 ToolKit 服务工具通过 PC/笔记本电脑进行配置

与RP-3500XT远程面板连接，通过CANopen协议在最远250米的距离内对easYgen-3500XT控制器进行完整的通知、控制和配置

合规机构/船舶*认证：CE、UL/cUL、CSA、BDEW、ABS、劳氏船级社（*有关进一步认证，请参阅船舶包装）

☆型号： 8440-2230 并联发电机组控制器 实现标准化

【英文介绍】

Features and functions

Woodward's easYgen-3500XT series shunt generator set controllers offer exceptional versatility and value to OEM switchgear manufacturers, generator kits and system integrators. The easYgen-3500XT combines complete engine-generator control and protection with advanced point-to-point parallel functionality and innovative features in a rugged, attractive and user-friendly package. Its integrated LogicsManager™ programmable logic capabilities provide excellent application flexibility, usually without additional PLC control, but can be easily integrated with SCADA or PLC-based control systems as required.

The advantage of the easYgen-3500XT is that you can standardize on a single, affordable generator set controller for many different distributed generation applications - from independent emergency backup power to parallel load sharing of up to 32 generator sets in complex segment distribution systems with multiple utility feeds and interlocks.

Woodward's easYgen-3400XT/3500XT K51 is a versatile generator set control unit with complete engine-generator control and protection, generator circuit breaker synchronization, dead bus arbitration and synchronous/voltage drop load distribution. The easYgen-3500XT is available in P1 and P2 packages, both compatible with the GC-3400XT. Both packages come in a sturdy metal case without a display for rear panel mounting. The precision touch screen Remote Panel (RP-3000XT) complements them as the operator control panel.

Common applications of easYgen-3500XT:

Emergency backup: Data centers, hospitals, commercial and industrial facilities

Distributed generation (DG) : utility-dispatchable power for peak demand response

Island main electricity: oil and gas exploration, Marine, remote villages, leasing/mobile

Microgrids: Military, government, net zero communities, universities

Utility parallel: peak regulation, demand reduction

Combined heat and Power (CHP) : wastewater treatment, biogas production/sealing

Switchgear upgrade: Generator control modification to increase load sharing/parallel capability

easYgen-3500XT Features and benefits

All easYgen-3500XT series models include the following standard features:

True RMS voltage and current detection (generator, bus, and mains) to reduce sensitivity to harmonics

CAN network communication/control with engine ECUs (supports standard SAE-J1939 protocol and multiple proprietary engine OEM protocols)

Serial Modbus RTU (slave station) communication for SCADA alarm and external control

You can use the Woodward ToolKit to configure the oceanstor Toolkit on a PC or laptop

Connect to the RP-3500XT remote panel for complete notification, control and configuration of the easYgen-3500XT controller over a distance of up to 250 meters via the CANopen protocol

Compliance Body/Vessel * Certification: CE, UL/cUL, CSA, BDEW, ABS, Lloyd's Register (* For further certification, please refer to Vessel packaging)
