8440-1934 控制器型号 具有继电器输出端子

☆型号：8440-1934  控制器型号 具有继电器输出端子

【产品详情】

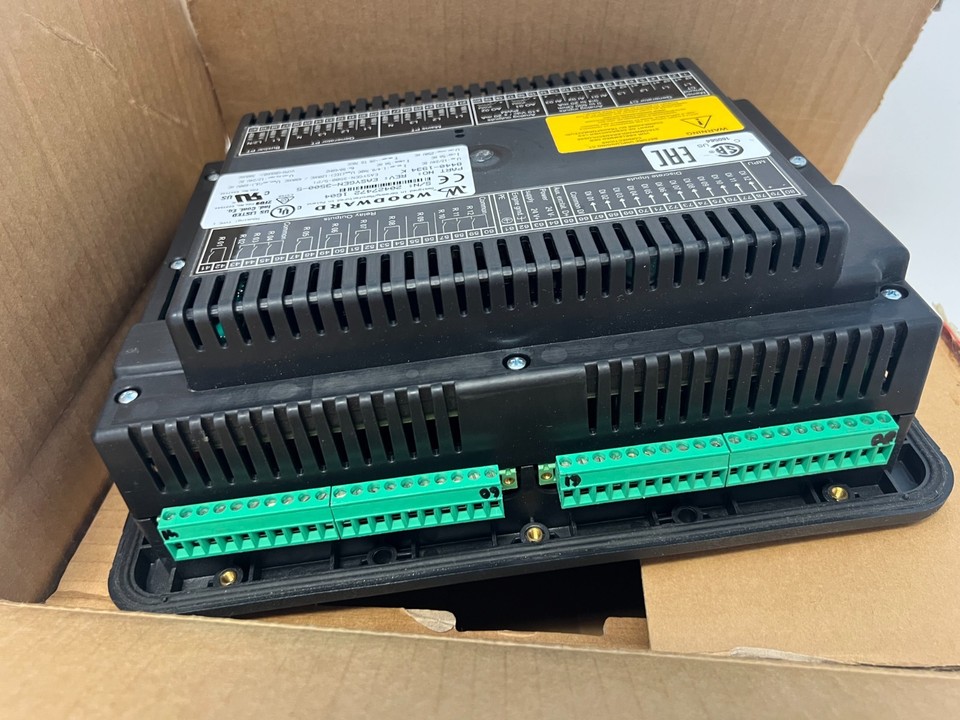

控制器型号 8440-1934 由伍德沃德生产，来自 easYgen-3000 系列，此特定型号标记为 easYgen-3500-1-P1 型号。P1系列型号由钣金框架组成，正面没有显示面板，因此需要远程连接才能正常操作，P1系列型号还具有继电器输出端子。

在为控制器接线时，您必须知道每根电线应该连接在哪里，如果您要接线发电机电压，则接线将连接到端子 29 到 36，在连接时交替使用 120 Vac 和 480 Vac。您应该注意，P2 型号的端子比 P1 型号多，因此有些东西是特定于型号的，例如，如果需要在 P2 型号上连接继电器输出，它们将通过端子 121 连接到端子 140。

easYgen-3500 型号具有一系列操作功能，其中一些是启动同步、AMF 操作以及调峰操作。您的控制器中还配备了广泛的功能，其中之一就是在一个简单易用的应用中与近 32 台发电机和多达 16 个 LS-5 断路器控制器完全连接。

☆型号：8440-1934  控制器型号 具有继电器输出端子

【英文介绍】

Controller models 8440-1934 were produced by Woodward from the easYgen-3000 series, and this particular model was labeled easYgen-3500-1-P1 model. The P1 series model consists of a sheet metal frame with no display panel on the front, so a remote connection is required for normal operation, and the P1 series model also has relay output terminals.

When wiring the controller, you must know where each wire should be connected, and if you are wiring the generator voltage, the wiring will be connected to terminals 29 to 36, alternating between 120 Vac and 480 Vac when connected. You should note that model P2 has more terminals than model P1, so some things are model specific, for example, if relay outputs need to be connected on model P2, they will be connected to terminal 140 via terminal 121.

The easYgen-3500 model has a range of operational features, some of which are startup synchronization, AMF operation, and peak load operation. Your controller is also packed with a wide range of features, one of which is full connectivity to nearly 32 generators and up to 16 LS-5 breaker controllers in a single, easy-to-use application.
