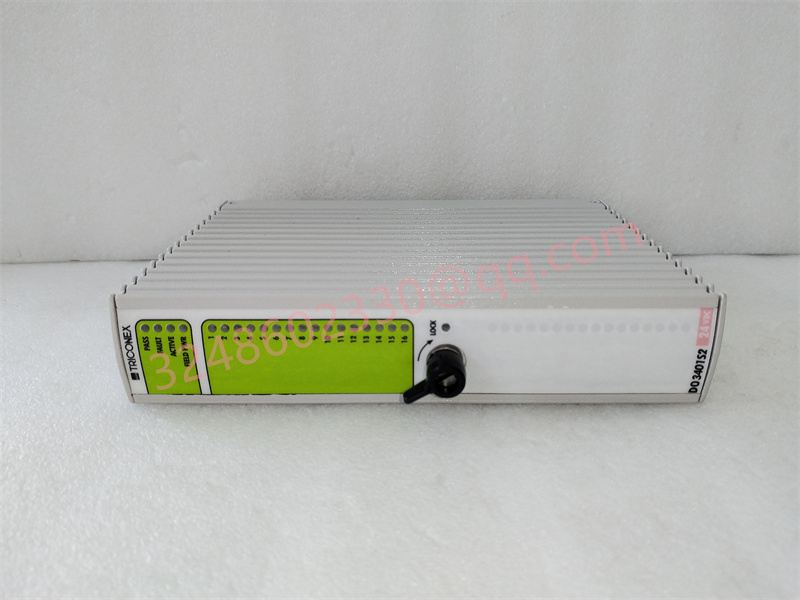

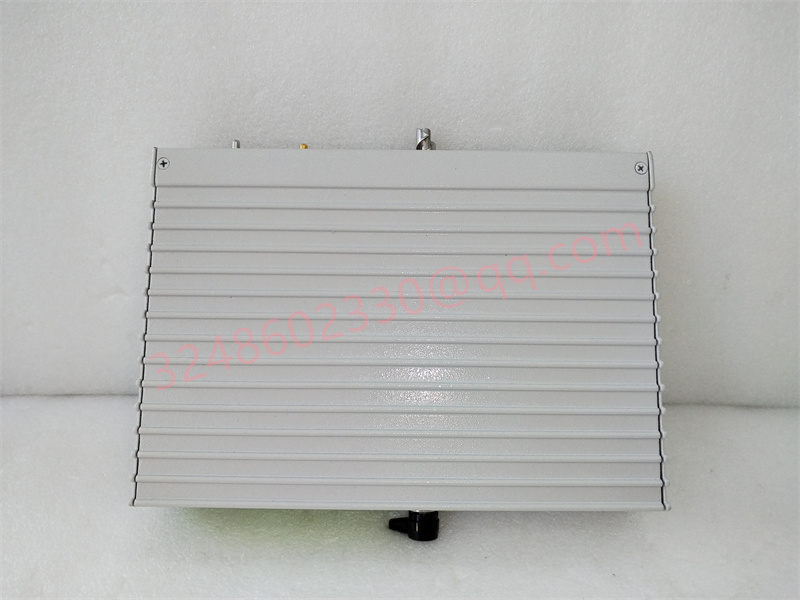

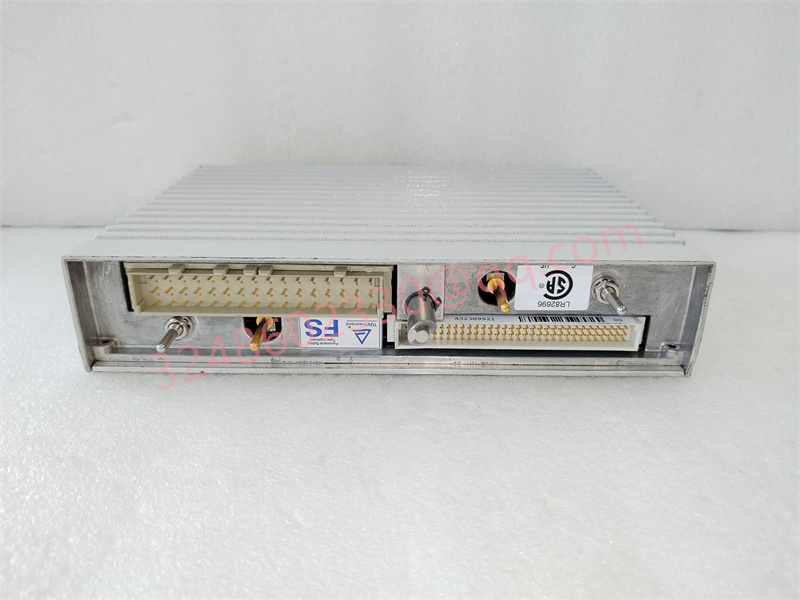

3401 TRICONEX DO 3401 数字量输出模块

【产品详情】

型号：

产品类型：DCS IO卡

类型：a：2：{i：0;s：17：“纺织机械”;我：1;s：19：“包装机械”;}

类别：首页/DCS系统/DCS模块

原产地：美国制造

保证：所有部件一年保修

说明书：3401 TRICONEX DO 3401 Digital Output Module、

数字输出模块 每个 TMR 数字输出模块都有三组隔离的电子设备，称为通道，它们独立接受来自与每个通道关联的 MP 的数据。这些通道使用获得专利的四投票器电路，在施加到负载时对单个输出信号进行投票。该投票器电路基于并联路径，如果三个开关（通道 A 和 B，或通道 B 和 C，或通道 A 和 C）中的两个命令它们闭合，则通过该路径。Quad Voter电路在所有关键信号路径上都具有多个冗余，保证了安全性和最大可用性。对于每个点，DO 模块会定期执行输出投票者诊断 （OVD） 例程。为了在各种多故障情况下实现不受限制的安全操作，OVD 可检测以下类型的故障并发出警报： • 点 — 在不到 500 毫秒的时间内检测到所有卡住和卡住。• 开关 — 检测所有卡住或卡住的开关或其相关的驱动电路。溶氧模块包括对每个通道的完整、持续的诊断。如果诊断检测到任何通道上的故障，故障指示灯将亮起并激活系统警报。故障指示器标识通道故障，而不是整个模块故障。DO 模块保证在出现单个故障时正常运行，并且可以在某些多个故障的情况下继续正常运行。DO 模块支持热备用模块。每个 DO 模块都采用机械键控，以防止在配置的底板中安装不当。

这些底板可与 3401 型 DO 模块一起使用： • 2401 型，用于典型应用。• 2401L 型，用于需要积分电流限制的低电流应用。每个输出都配有一个 180 欧姆串联电阻。• DO 外部终端底板，与高压应用中的继电器输出外部终端面板或 9671-610 型 DO 危险场所外部终端面板一起使用。

3401 TRICONEX DO 3401 数字量输出模块

【英文介绍】

Model:

Product type: DCS I/O card

Type: a: 2: {i: 0; s: 17: "Textile machinery"; Me: 1; s: 19: "Packaging machinery"; }

Category: Home /DCS System /DCS module

Country of origin: Made in USA

Guarantee: One year warranty on all parts

Instructions: 3401 TRICONEX DO 3401 Digital Output Module,

Each TMR digital output module has three isolated sets of electronics, called channels, that independently accept data from the MP associated with each channel. These channels use a patented four-voter circuit that votes on a single output signal when applied to a load. This voter circuit is based on A parallel path that passes through if two of the three switches (channels A and B, or B and C, or A and C) command them to close. The Quad Voter circuit has multiple redundances on all critical signal paths, guaranteeing security and maximum availability. For each point, the DO module periodically performs an Output voter Diagnostics (OVD) routine. For unrestricted safe operation in a variety of multi-failure scenarios, OVD detects the following types of failures and issues alerts: • Points - All jams and snags are detected in less than 500 milliseconds. • Switches - Detect all jammed or stuck switches or their associated drive circuits. The dissolved oxygen module includes complete, continuous diagnostics for each channel. If diagnostics detects a fault on any channel, the fault indicator lights up and activates the system alert. The fault indicator identifies the channel failure, not the entire module failure. The DO module is guaranteed to function in the event of a single failure, and can continue to function in some cases of multiple failures. The DO module supports hot standby modules. Each DO module is mechanically keyed to prevent improper installation in the configured baseboard.

These backboards can be used with type 3401 DO modules: • Type 2401 for typical applications. • Model 2401L for low current applications where integral current limitation is required. Each output is equipped with a 180 ohm series resistor. • DO external terminal baseplate, used with relay output external terminal panel in high voltage applications or type 9671-610 DO hazardous site external terminal panel.
