Triconex 3401  数字输出模块 并联串联路径

【产品详情】

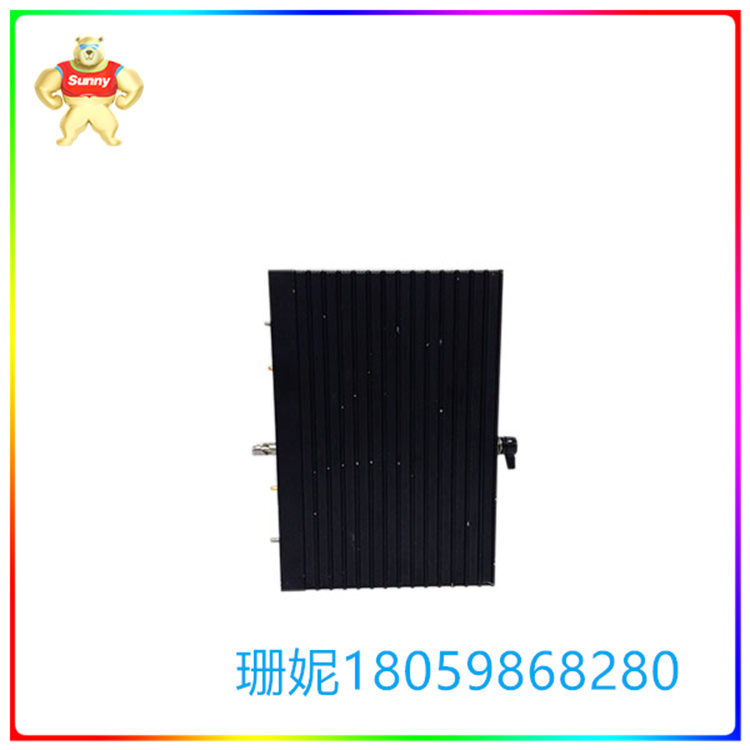

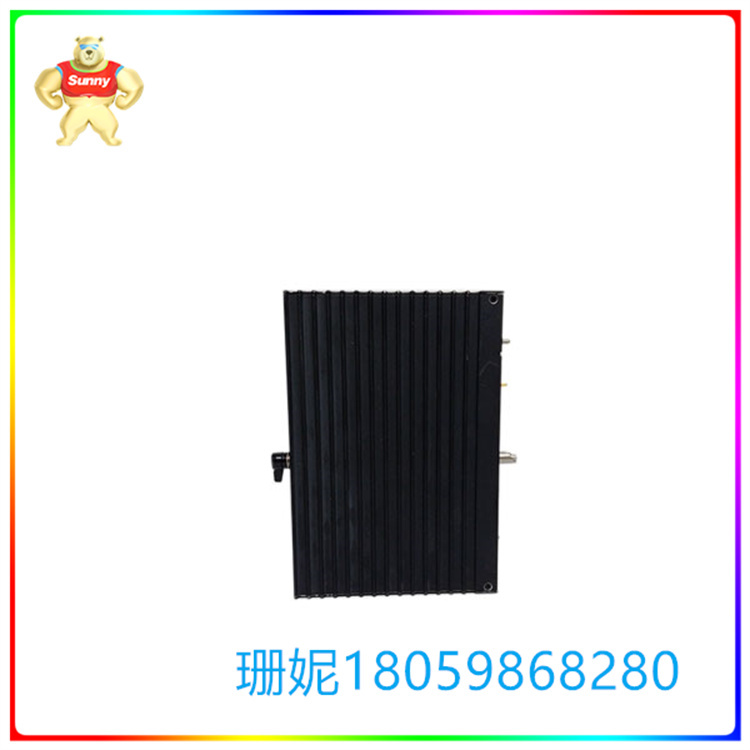

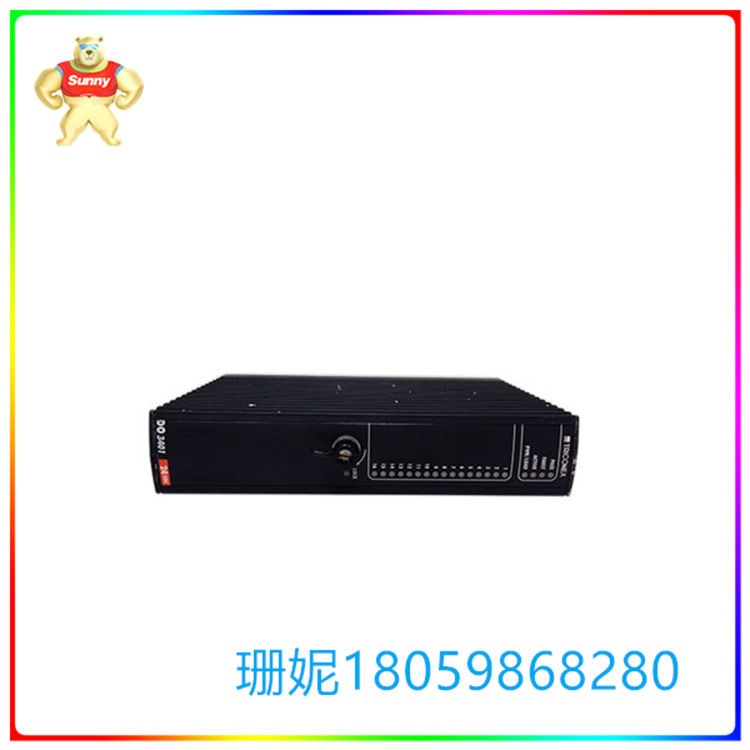

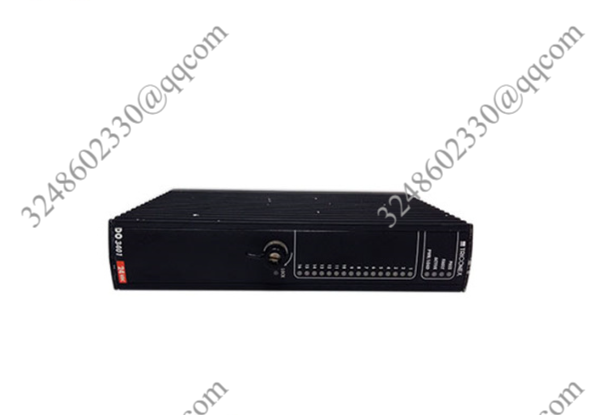

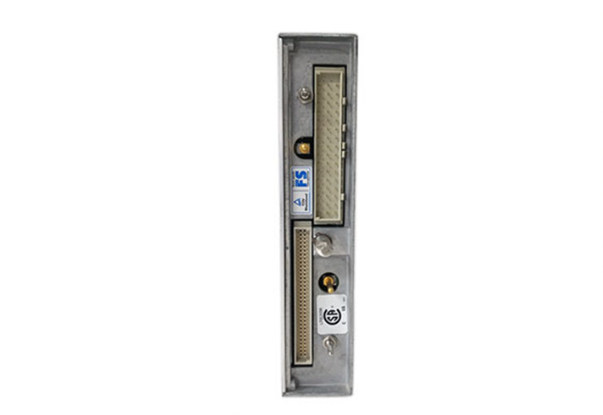

3401 TRICONEX DO 3401 数字输出模块

型号：

产品类型：DCS IO 卡

类型：a：2：{i：0;s：17：“纺织机械”;一：1;s：19：“包装机械”;}

类别：首页/DCS系统/DCS模块

原产地：美国制造

保证：所有零件一年保修

数字输出模块 每个TMR数字输出模块都有三组隔离的电子设备，称为通道，它们独立地接受来自与每个通道关联的MP的数据。这些通道使用获得专利的四通道投票电路对施加到负载的单个输出信号进行投票。该投票器电路基于并联串联路径，如果三个开关中的两个（通道A和B，或通道B和C，或通道A和C）命令它们闭合，则通过电源。四路投票电路在所有关键信号路径上具有多个冗余，保证了安全性和最大可用性。对于每个点，DO 模块会定期执行输出投票者诊断 （OVD） 例程。为了在各种多故障情况下实现不受限制的安全操作，OVD 会检测并报警以下类型的故障： • 点 - 在不到 500 毫秒的时间内检测到所有卡住和卡住。·开关—检测所有卡住或卡住的开关或其相关的驱动电路。溶氧模块包括针对每个通道的完整、持续的诊断。如果诊断程序检测到任何通道出现故障，故障指示灯将打开并激活系统警报。故障指示器标识通道故障，而不是整个模块故障。溶解氧模块保证在出现单个故障时正常运行，并可能在某些多个故障下继续正常运行。DO 模块支持热备盘模块。每个溶解氧模块都采用机械键控，以防止在配置的底板上安装不当。

这些底板可与 3401 型 DO 模块一起使用： • 2401 型，用于典型应用。• 2401L 型，用于需要积分电流限制的低电流应用。每个输出都配有一个 180 欧姆串联电阻器。• DO 外部端接底板，在高压应用中与继电器输出外部端接面板一起使用，或 9671-610 型 DO 危险场所外部端接面板。

Triconex 3401  数字输出模块 并联串联路径

【英文介绍】

3401 TRICONEX DO 3401 Digital output module

Model:

Product type: DCS I/O card

Type: a: 2: {i: 0; s: 17: "Textile machinery"; One: 1; s: 19: "Packaging machinery"; }

Category: Home /DCS System /DCS module

Country of origin: Made in USA

Guarantee: One year warranty on all parts

Each TMR digital output module has three isolated sets of electronics, called channels, that independently accept data from the MP associated with each channel. These channels use a patented four-channel voting circuit to vote on a single output signal applied to the load. This voter circuit is based on A parallel series path that passes through the power supply if two of the three switches (channels A and B, or B and C, or A and C) command them to close. The four-way voting circuit has multiple redundances on all critical signal paths, guaranteeing security and maximum availability. For each point, the DO module periodically performs an Output voter Diagnostics (OVD) routine. To enable unrestricted safe operation in a variety of multi-failure scenarios, OVD detects and alerts the following types of failures: • Points - All jams and snags are detected in less than 500 milliseconds. · Switches - Detect all jammed or stuck switches or their associated drive circuits. The dissolved oxygen module includes complete, continuous diagnostics for each channel. If the diagnostic detects any channel failure, the fault indicator will turn on and activate the system alert. The fault indicator identifies the channel failure, not the entire module failure. The dissolved oxygen module is guaranteed to function properly in the event of a single failure and may continue to function properly under certain multiple failures. The DO module supports the hot spare disk module. Each dissolved oxygen module is mechanically keyed to prevent improper installation on the configured baseplate.

These backboards can be used with type 3401 DO modules: • Type 2401 for typical applications. • Model 2401L for low current applications where integral current limitation is required. Each output is equipped with a 180 ohm series resistor. • DO external end plate for use in high voltage applications with relay output external end panel, or type 9671-610 DO hazardous site external end panel.
