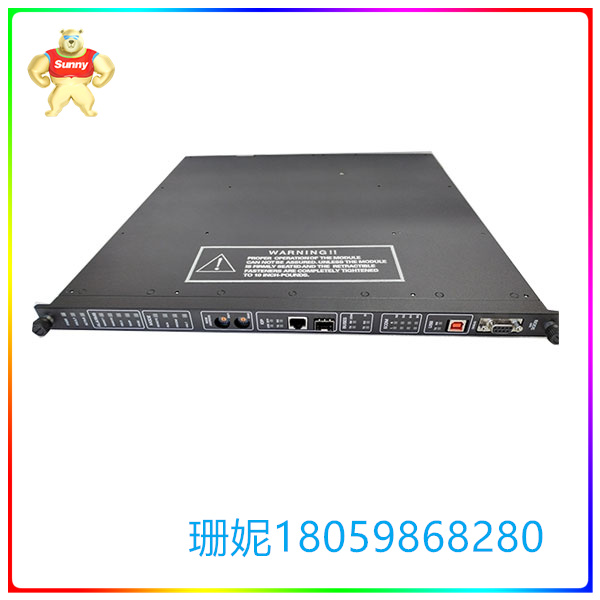

3009 增强型主处理器(UMP)模块 Triconex

【产品详情】

Triconex Tricon控制系统介绍:

Tricon控制系统的主要特点

Tricon是一种具 有高容错性的可编程和过程控制技术。

TRICONEX 3009增强型主处理器(UMP)模块

其特点如下:

A.提供三重模块化冗余结构(TMR) ，三个相同的子电路,每个子电路执行独立程度的控制。还有-个专用的硬件/软件架构,

用于对输入和输出进行"投票”。

能够耐受恶劣的工业环境。

C、可现场安装,可现场在线模块级安装维修，干扰现场接线。

D.支持多达118个I/O模块(模拟和数字)和可选的通信模块。通讯模块可以

连接到Modbus主机和附属设备，或Foxboro和霍尼韦尔分布式控制系统(DCS)、对等网络中的其他Tricon以及TCP/IP网络

上的外部主机。

E.可以支持距离主机最远12公里的远程I/O模块。

F.使用基于Windows NT系统的编程软件开发和调试控制程序。

G.输入和输出模块中的智能功能，以减少主处理器的工作量。每个I/O模块有三个微处理器。输入模块的微处理器过滤和修复

输入并诊断模块.上的硬件故障。输出模块微处理器为输出数据的投票提供信息，通过输出端的反馈回路电压检查输出状态的有效

性,并诃诊断场线问题。

H.提供全面的在线诊断和修复能力。

I.日常维护可以在Tricon启动并运行时进行，而不会中断控制过程。

J.为O模块提供“热备”支持，可以在某些不能及时提供服务的危急情况下使用。

3009 增强型主处理器(UMP)模块 Triconex

【英文介绍】

Triconex Tricon Control System Introduction:

Key features of the Tricon control system

Tricon is a highly fault-tolerant programmable and process control technology.

TRICONEX 3009 Enhanced Main Processor (UMP) module

Its characteristics are as follows:

A. Provide a triple modular redundancy structure (TMR) with three identical subcircuits, each performing an independent degree of control. There's also a dedicated hardware/software architecture,

Used to "vote" on inputs and outputs.

Able to withstand harsh industrial environments.

C, can be installed on site, can be on-site online module level installation and maintenance, interference with on-site wiring.

D. Supports up to 118 I/O modules (analog and digital) and optional communication modules. Communication module can

Connect to Modbus hosts and ancillary devices, or Foxboro and Honeywell Distributed Control Systems (DCS), other Tricons in peer-to-peer networks, and TCP/IP networks

On the external host.

E. Supports remote I/O modules up to 12 km away from the host.

F. Develop and debug control programs using programming software based on Windows NT systems.

G. Intelligent functions in the input and output modules to reduce the workload of the main processor. Each I/O module has three microprocessors. Input module for microprocessor filtering and repair

Enter and diagnose the module. The hardware on it is faulty. The output module microprocessor provides information for the voting of the output data, and checks the validity of the output status by the feedback loop voltage at the output end

Sex, and the diagnosis of field line problems.

H. Provide comprehensive online diagnostic and repair capabilities.

I. Routine maintenance can be carried out when Tricon is up and running without interrupting the control process.

J. Provide "hot backup" support for the O module, which can be used in some critical situations where service cannot be provided in time.

3009 增强型主处理器(UMP)模块 Triconex
