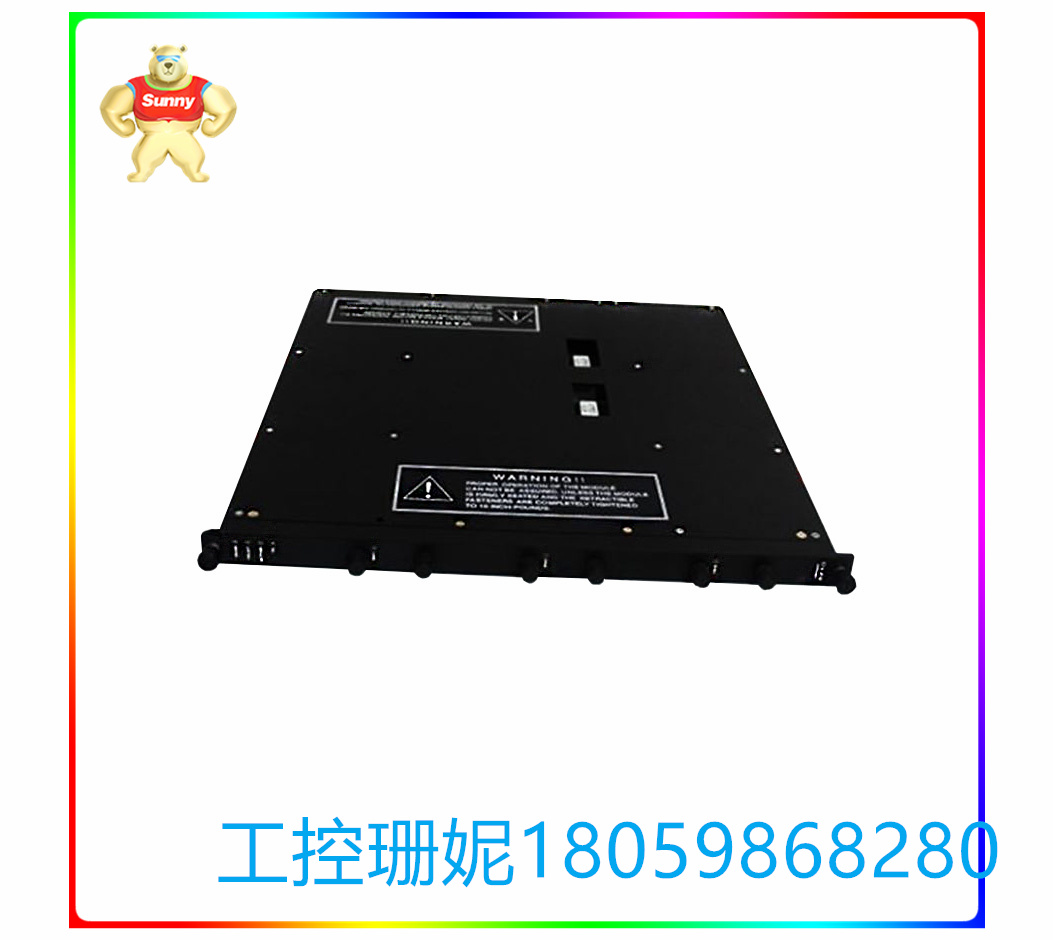

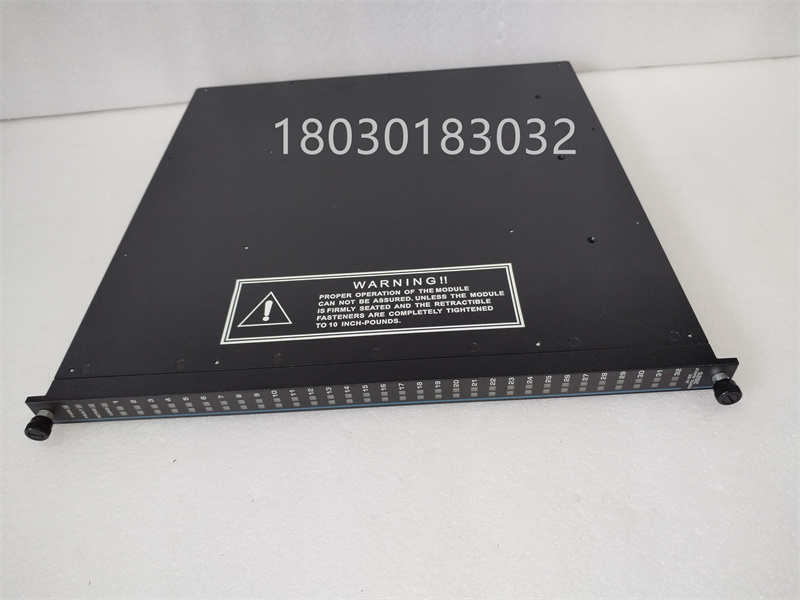

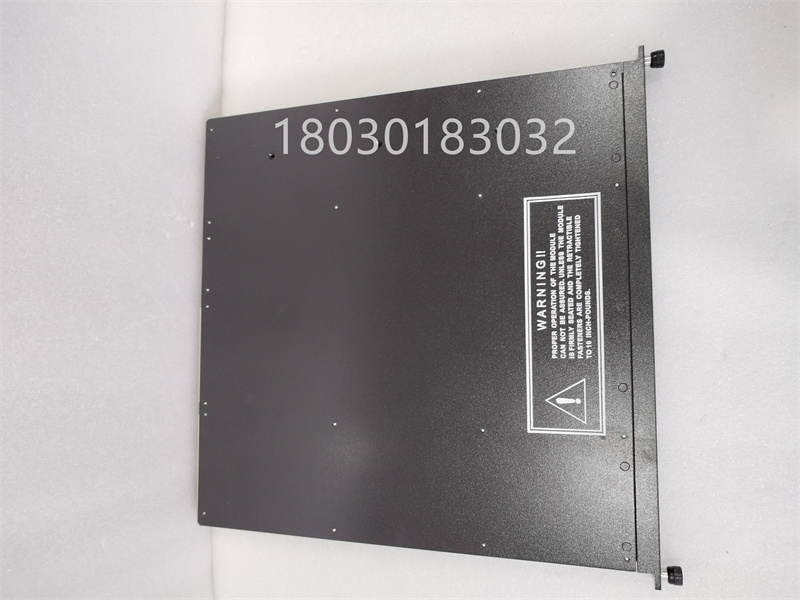

☆型号：TRICONEX 3703E 模拟输入模块 隔离模拟输入
【产品详情】
制造商:Triconex
产品编号:3703E
产品类型:隔离模拟输入
电压:0-5V或0-10V1，+ 6%
孤立点:是
输入更新速率:50毫秒
分辨率:12位
精确度:% 3C。FSR的15%，从0到60摄氏度
输入电阻(负载) :最小30兆欧(DC)。
断电电阻:最小30兆欧(DC)。
共模抑制:-90 dB @ 60Hz，最小值。-100分贝@ DC，最小。
共模范围:+200V峰值
引脚间隔离:20kω，典型值
正常模式抑制:8Hz -3 dB @ 60Hz -17 dB @ 120Hz -23 dB
输入超量程:150伏直流电/115伏交流电
保护:持续
电流范围:0-20毫安，5V时为250欧姆分流，10V时为500欧姆分流
运输重量:4公斤
☆型号：TRICONEX 3703E 模拟输入模块 隔离模拟输入
【英文介绍】
Manufacturer :Triconex
Product Number :3703E
Product Type: Isolated analog input
Voltage :0-5V or 0-10V1, + 6%
Isolated point: Yes
Input update rate :50 ms
Resolution :12 bits
Accuracy :% 3C. 15% of the FSR, from 0 to 60 degrees Celsius
Input resistance (load) : min. 30 megohm (DC).
Power off resistance: minimum 30 megohm (DC).
Common mode rejection :-90 dB@60Hz, minimum value. -100 dB @ DC, minimum.
Common model circumference :+200V peak
Isolation between pins :20kω, typical value
Normal mode suppression: 8Hz-3dB@60Hz-17dB@120Hz-23dB
Input overrange :150 volts DC /115 volts AC
Protection: Continuous
Current range :0-20 mA, 250 ohm shunt at 5V, 500 ohm shunt at 10V
Shipping weight :4 kg
