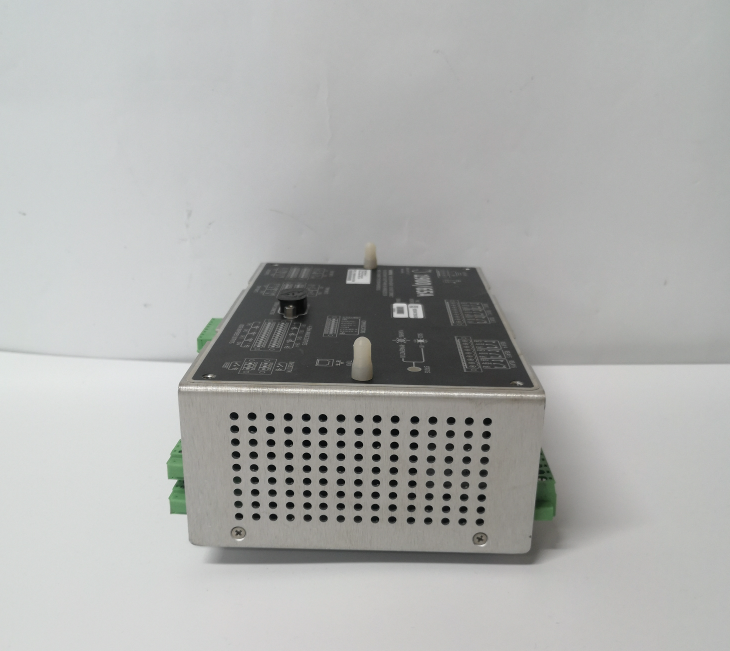

BENTLY 1900/65A-00-04-01-00-00提供四路传感器输入　

BENTLY 1900/65A-00-04-01-00-00提供四路传感器输入　

【产品详情】

　1）新

　2）保修期：12个月！

　3）包装：原包装与纸箱。

　4）交货时间：付款后3天内发货

　5）所有货物将在发货前进行测试。

1900/65A通用用途设备监测器是设计用于各种毛糙和领域中连续监测并保护机器设备的解决方案。

1900/65A提供四路传感器输入和四路温度输入。通过软件组态，每个传感器输入可支持两线或三线制加速度传感器、速度传感器或涡流传感器。每个温度输入支持E分度、J分度、K分度和T分度热电偶，及两线制或三线制热电阻。

描述

1900/65A通用设备监视器旨在连续监控和保护用于各种应用的设备，以及行业。显示器的低成本使其成为通用的理想解决方案可以从持续监控中受益的机器和流程保护。

输入

1900/65A提供四个传感器输入和四个温度输入。软件可以配置每个传感器输入以支持2线和3线加速度计、速度传感器或接近传感器。每个温度输入支持E、J、K和T型热电偶以及2线或3线RTD。

输出

1900/65A提供六个继电器输出、四个4-20 mA记录器输出和一个专用缓冲输出。用户可以使用1900配置软件来根据OK、Alert和任何通道或通道组合的危险状态，并提供数据来自任何记录器输出上任何通道的任何变量。敬业的缓冲输出可以为每个传感器输入提供信号。Modbus网关选项允许监视器提供静态变量，状态、事件列表、时间和日期信息直接发送到任何Modbus客户端，包括分布式控制系统(DCS)、监督控制和数据采集(SCADA)系统、可编程逻辑控制器(PLC)或系统1软件。监视器使用内部计数器和Modbus客户端/主站时间参考以生成时间和日期信息。用户可以升级通过订购1900/01不带Modbus网关的监视器通信升级（参见订购信息部分）。1900/65A支持通过以太网和软件可配置的Modbus通信RS232/485串口。

配置

用户定义监控操作和Modbus网关寄存器映射使用在笔记本电脑或PC上运行的软件来创建配置文件和通过内置的以太网连接将文件下载到显示器。这1900/65A将配置信息永久存储在非易失性存储器中，并可以将此信息上传到PC进行更改。显示模块1900/65A支持可选的显示屏/键盘以查看通道信息或进行小的配置更改。这使得1900/65A可以作为独立包。如果需要，用户可以将显示器安装到最远75米的地（250英尺）距离监视器模块

BENTLY 1900/65A-00-04-01-00-00提供四路传感器输入　

The 1900/65A General Purpose Equipment Monitor is a solution designed to continuously monitor and protect machine equipment in a variety of rough areas and fields.

The 1900/65A provides four sensor inputs and four temperature inputs. With software configuration, each sensor input can support a two-wire or three-wire acceleration sensor, speed sensor, or eddy current sensor. Each temperature input supports E-index, J-index, K-index, and T-index thermocouples, as well as two-wire or three-wire heating resistors.

Description

The 1900/65A Universal Device Monitor is designed to continuously monitor and protect equipment used in a variety of applications, as well as industries. The low cost of the display makes it an ideal solution for universal machine and process protection that can benefit from continuous monitoring.

input

The 1900/65A offers four sensor inputs and four temperature inputs. The software can configure each sensor input to support 2-wire and 3-wire accelerometers, speed sensors, or proximity sensors. Each temperature input supports E, J, K, and T thermocouples and 2 - or 3-wire RTDS.

exportation

The 1900/65A offers six relay outputs, four 4-20 mA recorder outputs, and a dedicated buffer output. Users can use the 1900 configuration software to determine the danger status of OK, Alert, and any channel or combination of channels, and to provide data from any variable on any channel on any logger output. The dedicated buffer output can provide a signal for each sensor input. The Modbus gateway option allows the monitor to provide static variables, status, event list, time and date information to be sent directly to any Modbus client, including Distributed control systems (DCS), Supervisory Control and Data Acquisition (SCADA) systems, Programmable logic controllers (PLCS), or System 1 software. The monitor uses internal counters and Modbus client/master time references to generate time and date information. Users can upgrade by ordering a 1900/01 monitor communication upgrade without the Modbus gateway (see Ordering Information section). The 1900/65A supports RS232/485 serial port communication over Ethernet and software-configurable Modbus.

disposition

User-defined monitoring operations and Modbus gateway register mapping use software running on a laptop or PC to create profiles and download files to the monitor via a built-in Ethernet connection. This 1900/65A stores configuration information permanently in non-volatile memory and can upload this information to a PC to make changes. The display module 1900/65A supports an optional display/keyboard to view channel information or make minor configuration changes. This allows the 1900/65A to be used as a standalone package. If desired, the user can mount the display up to 75 meters (250 feet) away from the monitor module

BENTLY 1900/65A-00-04-01-00-00提供四路传感器输入　
