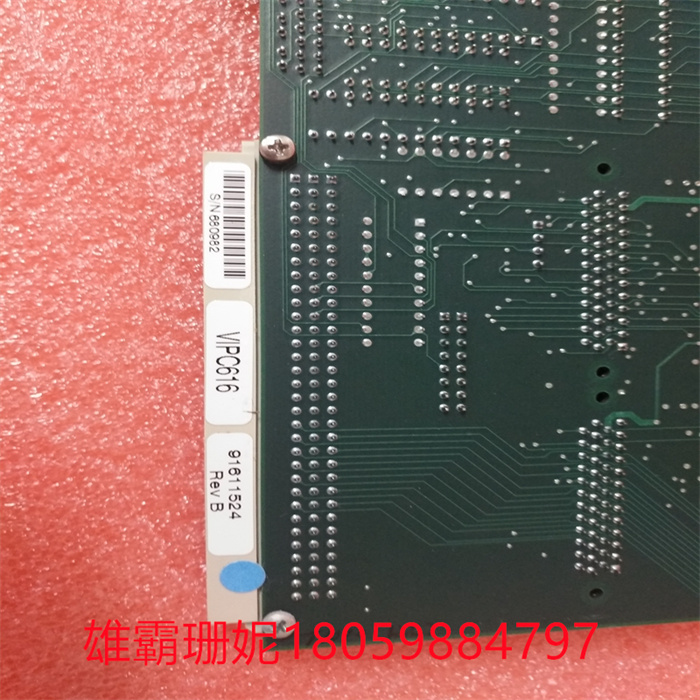

SBS SBS VME-IP-Carrier VIPC616 91611524 控制卡模块

SBS SBS VME-IP-Carrier VIPC616 91611524   控制卡模块

SBS SBS VME-IP-Carrier VIPC616 91611524   控制卡模块

6U VME 板上的四个行业包插槽

支持 I/O、ID、存储器和中断周期

通过非屏蔽直角带状连接器的前面板 I/O

每个行业包插槽的前面板活动 LED

前面板电源监视器指示灯

滤波和熔断电源轨

可通过 PLD 编程实现自定义 IRQ 映射

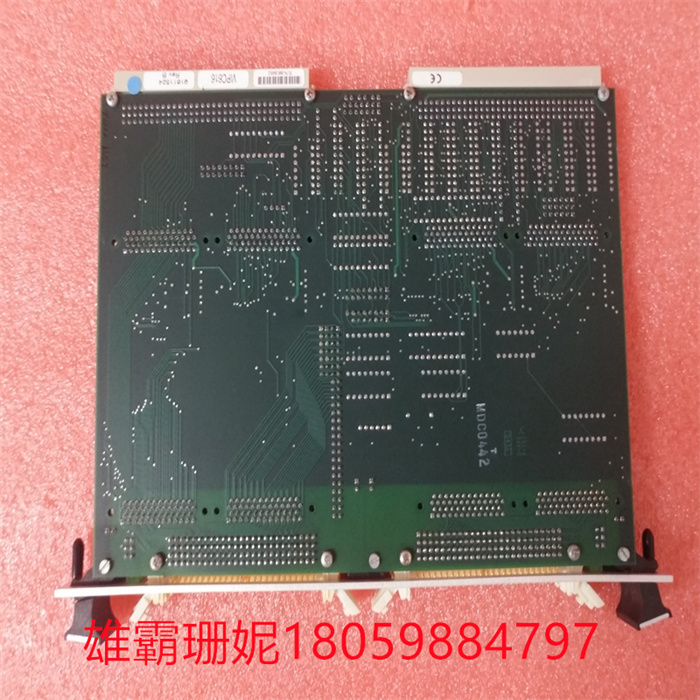

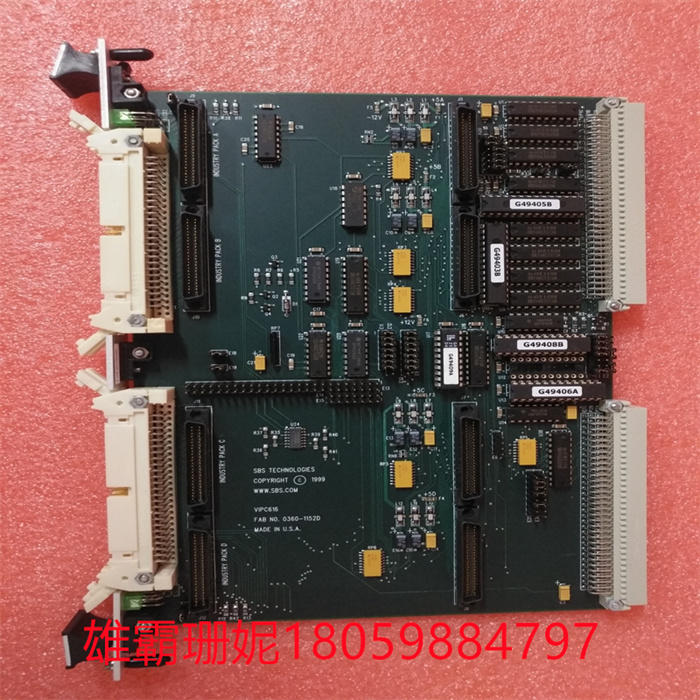

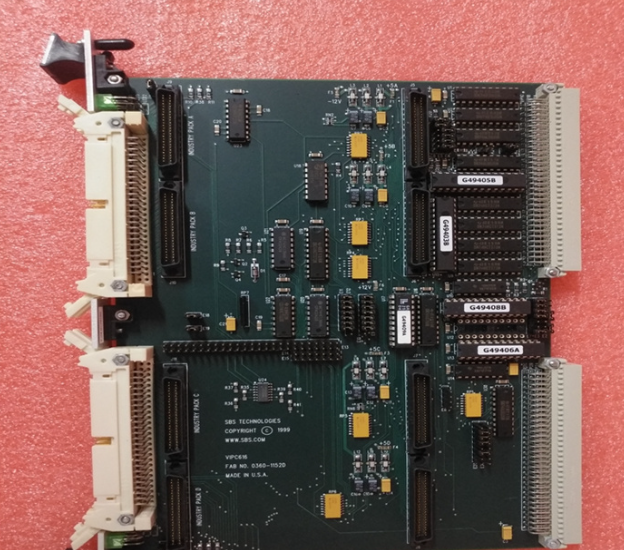

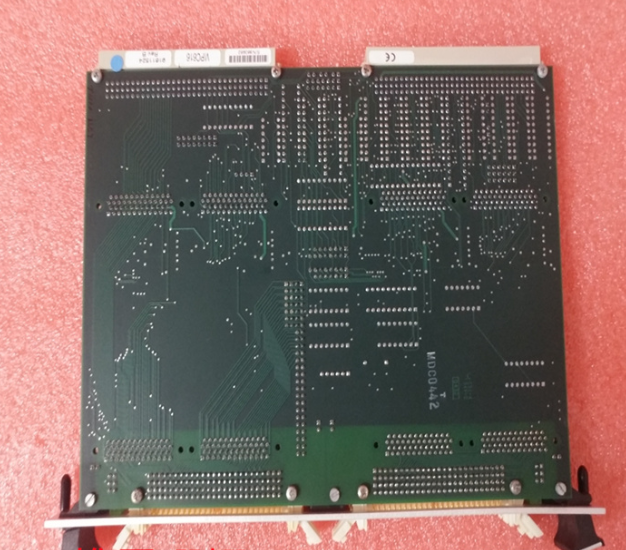

GE Fanuc / SBS VIPC616是一款4插槽6U VME工业包载波，支持I / O，ID，内存和中断功能。6U 托架提供从 VME 背板到 4 个单宽或 2 个双宽工业包的机械安装和电气接口。50 针带状电缆连接前面板上的 IndustryPack I/O。

SBS SBS VME-IP-Carrier VIPC616 91611524   控制卡模块

SBS SBS VME-IP-Carrier VIPC616 91611524 Control card module

Four industry package slots on the 6U VME board

Supports I/O, ID, memory, and interrupt cycles

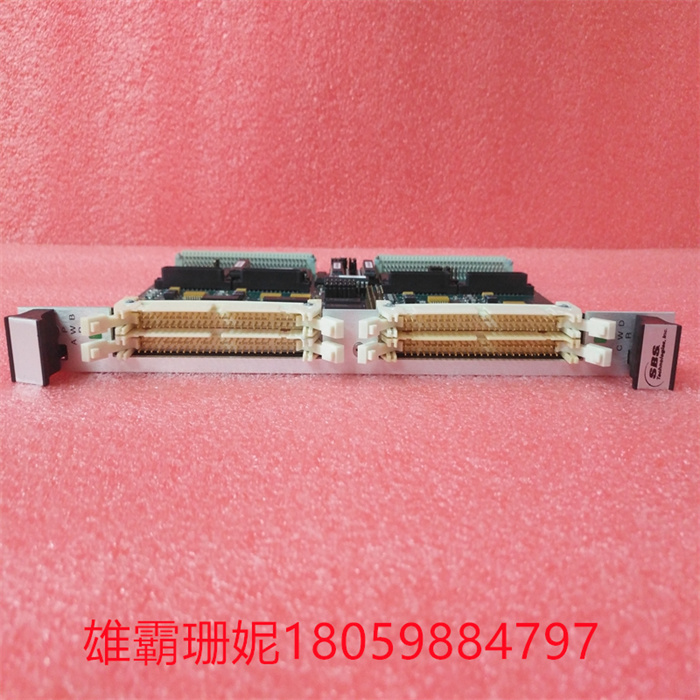

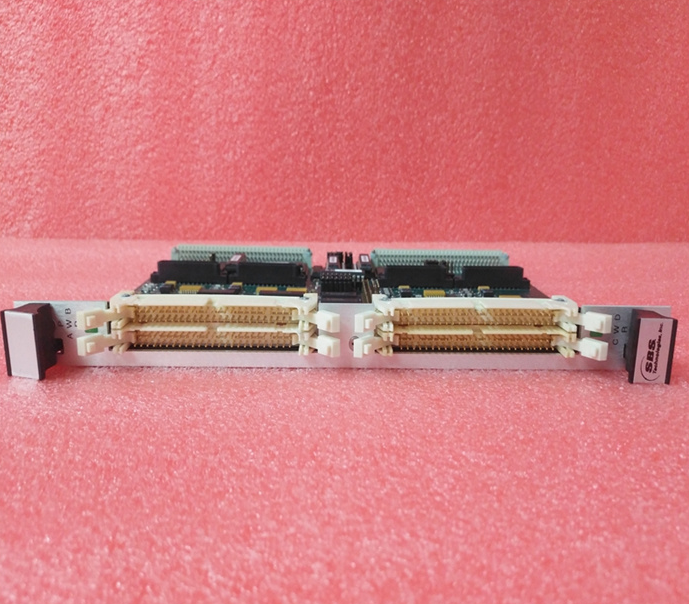

Front panel I/O through unshielded right Angle strip connectors

Each industry pack slots for active leds on the front panel

Front panel power monitor indicator

Filter and fuse the power rail

The IRQ mapping can be customized by PLD programming

The GE Fanuc/SBS VIPC616 is a 4-slot 6U VME industrial package carrier with support for I/O, ID, memory and interrupt functions. The 6U bracket provides mechanical mounting and electrical interfaces from the VME backplane to 4 single width or 2 double width industrial packages. The 50-pin ribbon cable connects the IndustryPack I/O on the front panel.
