IC698PSA100E 电源模块 得到了增强

☆型号：IC698PSA100E 电源模块 得到了增强

【产品详情】

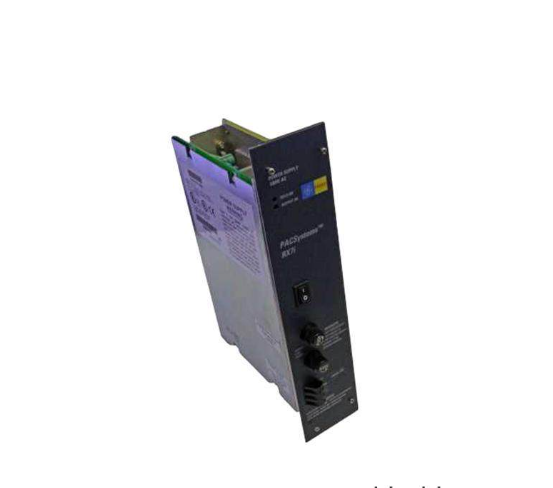

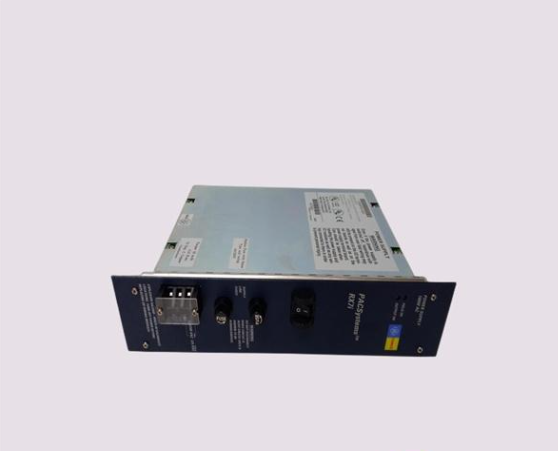

IC698PSA100 是一款 PACSystem RX7i 电源模块，由艾默生自动化制造，前身为 GE 智能平台 （GE IP）。此电源模块安装在任何 RX7i 标准机架的最左侧插槽上，特别是插槽 0。它配有螺丝型输入端子，设计用于 85 至 264 VAC（标称电压 120 / 240 VAC）、频率为 47 至 63 Hz 和 100-150VDC（标称电压为 125 VDC）的输入电压范围。必须使用绝缘等级为 16°C （75°F） 的 AWG #1.3 （1.3 mm2） 实心或绞合铜线进行外部电源连接。对于接地连接，请使用绝缘等级为 75°C （167°F） 的 #12 （3.3 mm2） 铜线。GND连接的适当端接可以显著消除系统噪声。

该IC698PSA100提供 100 瓦的最大输出功率，这是所有三 （3） 个输出端子的总和，可提供 4.875 至 5.25 伏、0—20 安培、5.1 VDC、标称电压;11.64 至 12.6 伏，0—2 安培，+12 VDC，标称值和 –12.60 至 –11.64 伏，0—1 安培，-12 VDC，标称值。该电源模块的穿越时间最短为 15 ms，最短保持时间为 5 ms。它还具有主动过压和过流限制，特别是 +5VDC 时的 5.7 至 6.7 伏过压保护;+5 VDC 输出时为 21A;+12 VDC 输出时为 2.5A，-12 VDC 输出时为 3.5A。

该电源模块的工作温度为 0°C 至 60°C（32° 至 140°F），隔离额定值为 1500 VDC。

IC698PSA100电源模块是GE制造的Rx7i PACsystem现代电源模块。它的额定电压为 120/240 伏交流电或 125 伏直流电。电源的输入电压范围介于 85 至 264 伏交流电或 100 至 150 伏直流电之间。电源模块位于 Rx7i 系统背板最左侧的插槽或插槽 0 中。该模块的额定功率为 125 瓦。它的输出电压为 5 伏直流电、12 伏直流电和 -12 伏直流电。IC698PSA100电源模块使用系统的背板向模块发送逻辑电平信号。电源模块在安全性和保护方面得到了增强。它针对过流、过热和过压情况提供保护。

☆型号：IC698PSA100E 电源模块 得到了增强

【英文介绍】

The IC698PSA100 is a PACSystem RX7i power module manufactured by Emerson Automation and formerly known as GE Intelligent Platform (GE IP). This power module is installed in the leftmost slot of any RX7i standard rack, especially slot 0. It is equipped with screw input terminals and is designed for input voltage ranges of 85 to 264 VAC (nominal voltage 120/240 VAC), 47 to 63 Hz, and 100 to 150VDC (nominal voltage 125 VDC). An AWG #1.3 (1.3 mm2) solid or stranded copper wire with an insulation class of 16°C (75°F) must be used for external power connections. For ground connections, use a #12 (3.3 mm2) copper wire with an insulation class of 75°C (167°F). Proper termination of the GND connection can significantly eliminate system noise.

The IC698PSA100 provides a maximum output power of 100 watts, which is the sum of all three (3) output terminals, providing 4.875 to 5.25 volts, 0-20 amps, 5.1 VDC, nominal voltages; 11.64 to 12.6 volts, 0-2 amps, +12 VDC, nominal values and -12.60 to -11.64 volts, 0-1 amps, -12 VDC, nominal values. The power module has a minimum traverse time of 15 ms and a minimum hold time of 5 ms. It also has active overvoltage and overcurrent limits, especially 5.7 to 6.7 volts overvoltage protection at +5VDC; +5 VDC output is 21A; The output value is 2.5A for +12 VDC and 3.5A for -12 VDC.

The power module operates from 0°C to 60°C (32° to 140°F) and has an isolation rating of 1500 VDC.

The IC698PSA100 power module is the Rx7i PACsystem modern power module manufactured by GE. It is rated for 120/240 volts AC or 125 volts DC. The input voltage range of the power supply is between 85 to 264 volts AC or 100 to 150 volts DC. The power module is located in the leftmost slot or slot 0 of the Rx7i system backplane. The module has a power rating of 125 watts. Its output voltages are 5 volts DC, 12 volts DC and -12 volts DC. The IC698PSA100 power module uses the backplane of the system to send logic level signals to the module. The power module has been enhanced in terms of safety and protection. It provides protection against overcurrent, overheat and overpressure.
