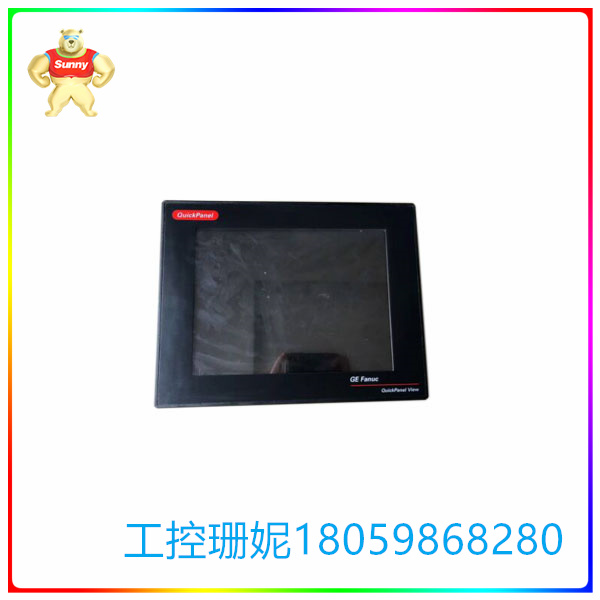

IC754VGF12CTD 快速面板控制和视图 具有平板显示器

☆型号：IC754VGF12CTD 快速面板控制和视图 具有平板显示器

【产品详情】

该IC754VSF12CTD是由GE Fanuc智能平台在其操作员界面产品线下制造和设计的快速面板控制和视图。GE Fanuc IC754VSF12CTD Quickpanel Control and View 具有平板显示器，每像素 16 位，总共 65,536 种颜色。它有一个12英寸的屏幕，并使用特殊的机制来提供明亮的界面屏幕。显示器支持 800 x 600 像素的分辨率;该触摸屏允许用户与他们的设备和机器进行交互，同时允许他们监控任何过程和进度。GE Fanuc IC754VSF12CTD Quickpanel Control and View 必须安装在具有与 NEMA 额定面板或外壳相当特性的平面上。建议允许至少 3 英寸的额外空间，以提供足够的通风;如果设备位于室外环境中，则必须避免直接暴露在阳光下。

重要的是，该模块的工作温度不要超过环境空气温度。GE Fanuc IC754VSF12CTD Quickpanel Control and View 具有触摸屏、键盘、通信端口、CF 端口、USB 端口、以太网、扩展总线、DIP 开关和闪存。此界面与 Windows 一起运行;CPU 具有 XScale 处理器，该模块具有 64 MB 的闪存。它还具有内存扩展插槽。GE Fanuc IC754VSF12CTD Quickpanel Control and View 的输入电压为 24 伏直流电，实际功率为 48 瓦，重量约为 5.2 磅（2.36 千克）。

☆型号：IC754VGF12CTD 快速面板控制和视图 具有平板显示器

【英文介绍】

The IC754VSF12CTD is a fast panel control and view manufactured and designed by GE Fanuc Intelligent Platform under its operator interface product line. GE Fanuc IC754VSF12CTD Quickpanel Control and View features a flat panel display with 16 bits per pixel for a total of 65,536 colors. It has a 12-inch screen and uses special mechanisms to provide a bright interface screen. The display supports 800 x 600 pixel resolution; The touch screen allows users to interact with their devices and machines while allowing them to monitor any process and progress. The GE Fanuc IC754VSF12CTD Quickpanel Control and View must be mounted on a flat surface with characteristics comparable to those of the NEMA rated panel or housing. It is recommended to allow at least 3 inches of additional space to provide adequate ventilation; If the device is located in an outdoor environment, direct exposure to sunlight must be avoided.

It is important that the operating temperature of the module does not exceed the ambient air temperature. GE Fanuc IC754VSF12CTD Quickpanel Control and View features touch screen, keyboard, communication port, CF port, USB port, Ethernet, expansion bus, DIP switch and flash memory. This interface works with Windows; The CPU has an XScale processor, and the module has 64 MB of flash memory. It also has a memory expansion slot. The GE Fanuc IC754VSF12CTD Quickpanel Control and View has an input voltage of 24 volts DC, an actual power of 48 watts, and a weight of approximately 5.2 pounds (2.36 kg).
