IS200EXHSG3AEC 励磁 HS 继电器驱动器

☆型号：IS200EXHSG3AEC 励磁 HS 继电器驱动器

【产品详情】

IS200EXHSG3AEC 技术规格

制造者 GE工业系统

系列 EX2100型

零件编号 IS200EXHSG3AEC

功能缩略语 EXHS的

功能描述 励磁 H.S. 继电器驱动器

该IS200EXHSG3AEC是GE工业系统公司的PCB（印刷电路板）组件，设计为EX2100励磁控制系列的一部分。EX2100 是通用电气最受欢迎的涡轮机管理系统之一。EX2100 系列是 GE 提供的 TMR（三重模块化冗余）涡轮机控制系统，可产生控制交流端电压和无功伏安所需的励磁电流。EX2100 系列是一种全静态励磁控制模式，适用于新建和改造蒸汽轮机上的发电机以及燃气轮机和水轮发电机。IS200EXHSG3AEC在 EX2100 系统中用作静态激励器高速终端板。

硬件提示和规格

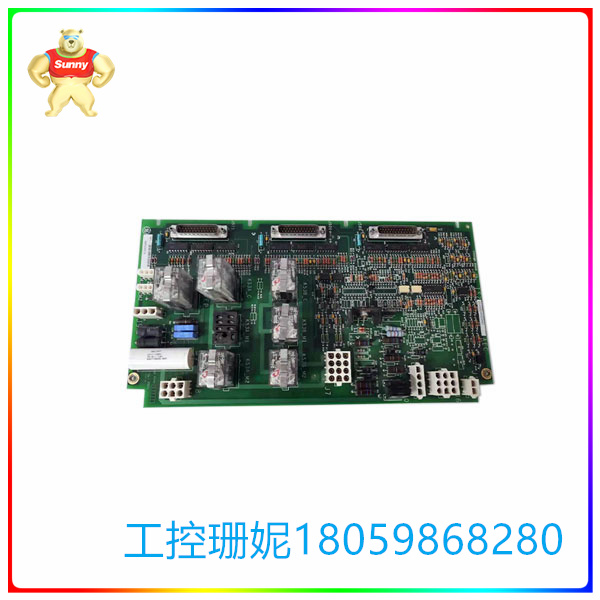

该IS200EXHSG3AEC设计为包括一个固态继电器驱动器，通常与高速接触器配对。IS200EXHSG3AEC上的其他电路板组件包括散热器组件、七个继电器、集成电路、晶体管、电容器和由金属膜和碳复合材料制成的电阻器。

该 EXHS 缩写板包括 3 个 d-shell 垂直插针连接器和 8 个不同尺寸的插头连接器。此外，该板还具有多个跳线。这些跳线虽然本质上是不可定制的，但由原始制造商工厂在考虑初始电压测试的情况下添加。

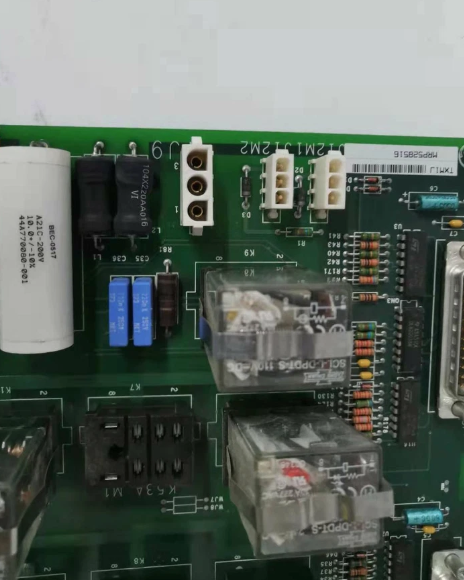

对IS200EXHSG3AEC板的目视检查显示，其所有PCB边缘都已钻孔，其中这些钻孔已用导电材料环绕。板的两个角被剪掉，板的前边缘在其表面切有四个小槽口。所有这些添加都可以归类为具有安装意识的，因为一系列槽口和钻孔用于安装在更大的驱动器组件中。

虽然在最初发布后被误解的部分笼罩在神秘之中，但这款 EXHS 印刷电路板配有一系列标签，这些标签应该会阐明其功能和兼容性。例如，该型号基板上的每个大型继电器都标有行业标准的“K”继电器命名法，后跟特定的继电器代码。考虑到这一点，K53B_C 和 K53A_M1 等继电器都存在于本产品的配置中。当然，继电器并不是IS200EXHSG3AEC唯一带有标签的组件。 这款励磁器 HS 继电器驱动器使用一系列电容器进行储能，总共超过 50 个，以及超过 100 个电阻器。

IS200EXHSG3AEC 励磁 HS 继电器驱动器是一款用于控制和驱动电磁继电器的电子设备。其主要功能是接收数字信号或逻辑电平信号，并将其转换为能够驱动继电器线圈的电流或电压信号。

该驱动器具有以下特点：

输入信号兼容性：能够接收低电平的数字信号或逻辑电平信号，如TTL、CMOS等。

输出驱动能力：能够提供足够的电流或电压来驱动继电器线圈，以确保继电器能够正确地切换状态。

隔离功能：通过光耦或磁耦等隔离技术，能够有效地减少外部干扰对系统的影响，提高系统的稳定性和可靠性。

保护功能：具有过流保护、过压保护等保护功能，以确保继电器驱动器的安全运行和延长使用寿命。

体积小巧：体积小巧，便于集成和安装。

总的来说，IS200EXHSG3AEC励磁HS继电器驱动器是一款功能全面、性能稳定的继电器驱动器，适用于各种需要精确控制和高速切换的应用场景。

☆型号：IS200EXHSG3AEC 励磁 HS 继电器驱动器

【英文介绍】

IS200EXHSG3AEC Technical specifications

Manufacturer GE Industrial Systems

Series EX2100

Part number IS200EXHSG3AEC

Functional acronym EXHS

Function Description Excitation H.S. relay driver

The IS200EXHSG3AEC is a PCB (printed circuit board) assembly from GE Industrial Systems and is designed as part of the EX2100 excitation control family. The EX2100 is one of GE's most popular turbine management systems. The EX2100 series is GE's TMR (Triple Modular Redundancy) turbine control system that generates the excitation current needed to control AC terminal voltage and reactive volt-ampere. The EX2100 series is a fully static excitation control mode for generators on new and modified steam turbines, as well as gas turbines and hydrogenerators. The IS200EXHSG3AEC is used as a static exciter high-speed terminal board in EX2100 systems.

Hardware tips and specifications

The IS200EXHSG3AEC is designed to include a solid-state relay driver, typically paired with a high-speed contactor. Other board components on the IS200EXHSG3AEC include a radiator assembly, seven relays, integrated circuits, transistors, capacitors, and resistors made of metal film and carbon composite materials.

The EXHS abbreviated board includes three d-shell vertical pin connectors and eight plug connectors of different sizes. In addition, the board has multiple jumpers. These jumpers, while not customizable in nature, are added by the original manufacturer factory with initial voltage testing in mind.

A visual inspection of the IS200EXHSG3AEC board revealed that all of its PCB edges had been drilled, where these holes had been encircled with conductive material. Two corners of the board are cut off, and the front edge of the board has four small notches cut into its surface. All of these additions can be classified as installation-conscious, as a series of notches and holes are used for installation in larger drive assemblies.

While the part that was misunderstood after the initial release is shrouded in mystery, this EXHS printed circuit board comes with a series of labels that should clarify its functionality and compatibility. For example, each large relay on this model's substrate is labeled with the industry-standard "K" relay nomenclature, followed by a specific relay code. With this in mind, relays such as K53B_C and K53A_M1 are present in the configuration of this product. Of course, the relay is not the only component of the IS200EXHSG3AEC with a label. This exciter HS relay driver uses a series of capacitors for energy storage, more than 50 in total, and more than 100 resistors.

The IS200EXHSG3AEC Field HS Relay driver is an electronic device for controlling and driving electromagnetic relays. Its main function is to receive a digital signal or a logic level signal and convert it into a current or voltage signal capable of driving the relay coil.

The drive has the following features:

Input signal compatibility: can receive low level digital signals or logic level signals, such as TTL, CMOS, etc.

Output drive capability: The ability to provide enough current or voltage to drive the relay coil to ensure that the relay can switch state correctly.

Isolation function: Isolation technology such as optical or magnetic coupling can effectively reduce the impact of external interference on the system and improve the stability and reliability of the system.

Protection function: With overcurrent protection, overvoltage protection and other protection functions to ensure the safe operation of the relay driver and extend the service life.

Small size: Small size, easy to integrate and install.

Overall, the IS200EXHSG3AEC excitation HS relay driver is a full-featured, stable relay driver for a variety of applications requiring precise control and high-speed switching.
