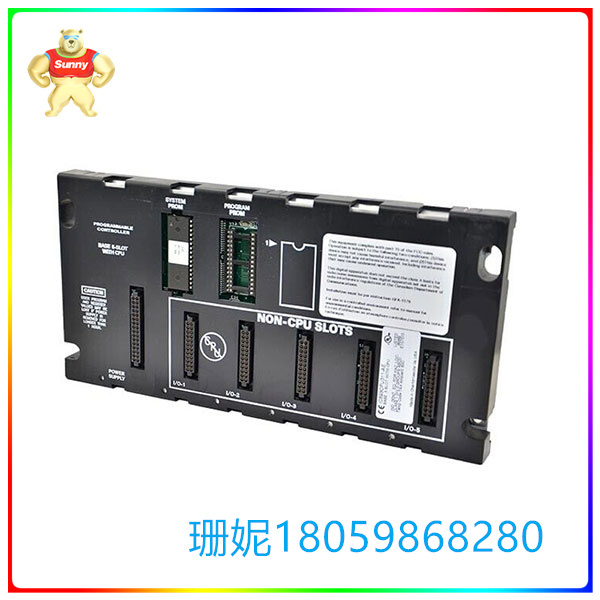

>>>>>型号:IC693CPU313 嵌入式 CPU,具有 5 槽底板
【功能描述】
GE Fanuc IC693CPU313 是一款嵌入式 CPU,具有 5 槽底板,每个系统包含一个底板。该模块使用处理器 80188 达到 10 MHz 的处理速度。执行其功能所需的功率为 5 VDC,该模块消耗的电流为 430 mA。该模块的此操作发生在 0°C 至 60°C 的温度范围内。
该IC693CPU313提供的最大用户内存为 12 KB,用于编程,该内存以各种内存类型分配。与模拟输入 (%AI) 和模拟输出 (%AO) 相关的用户存储器分别为 64 字和 32 字。该模块需要 128 位内存用于系统状态参考,其中每个子存储器类型需要 32 位。内存还分配给 16 字的系统寄存器 (%SR)。寄存器还具有存储多达 1024 字数据的最大空间。与内部线圈 (%M) 和临时输出线圈 (%T) 相关的存储器分别为 1024 位和 264 位。IC63CPU313中的主存储器是离散全局存储器(%G),为1280位。
与其他模块的通信是通过支持多点的LAN完成的。该IC693CPU313还支持可选模块,如 GCM、GCM+、以太网、Profibus、FIP、GBC 等,该模块中使用的存储器是 RAM 或 EPROM。 该模块可实现 0.6 毫秒/1K 的扫描速率,并提供单个内置端口,支持 SNP slave 和 SNP-X slave 等协议。
技术规格
处理器速度 : 10兆赫
I/O 点数 : 160
寄存器存储器: 2KB字节
浮点数学: 不
16位系统 是的
处理器: 80188

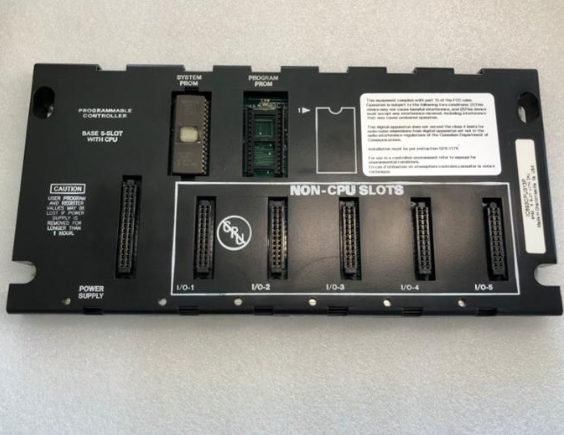

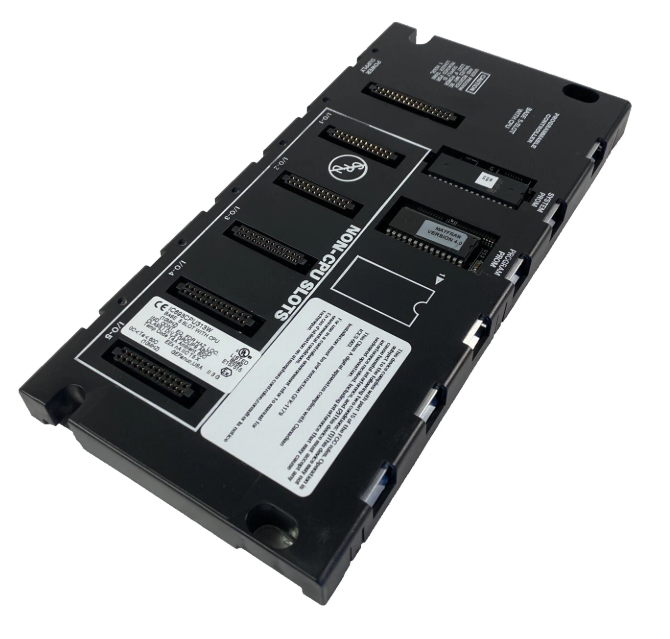

IC693CPU313 CPU 是 90-30 系列的 GE Fanuc 嵌入式 CPU。它是一个 CPU 背板,其中直接嵌入了 CPU 模块。IC693CPU313嵌入式 CPU 的处理器速度为 10 兆赫兹,其处理器是 80188 处理器。它是一个涡轮增压CPU。IC693CPU313嵌入式 CPU 的底板只有 5 个用于模块的插槽(加上最左侧的 1 个插槽,仅用于托管电源)。但是,它可以连接到其他类型的底板,例如 90-30 系列可编程逻辑控制器或 PLC 中的远程底板和扩展底板,这些底板将为模块提供额外的插槽。IC693CPU313嵌入式 CPU 无法连接到 PCM 和 CCM 设备,但它可以容纳大多数选件模块和 I/O 模块。
GE Fanuc 系列 90-30 IC693CPU313嵌入式 CPU 只有 1 个通信端口。该通信端口允许嵌入式 CPU 通过 SNP 从协议和 SNP-X 从协议与其他设备进行通信。IC693CPU313嵌入式 CPU 可以支持的存储器类型包括 RAM 和用于特殊应用的 EPROM 或 EEPROM。此嵌入式 CPU 背板的环境工作温度范围为 0 至 60 摄氏度或 32 至 140 华氏度。此 CPU 不支持浮点数学运算。90-30 系列IC693CPU313嵌入式 CPU 在 5 伏直流背板电压下消耗 430 毫安的电流。它可以通过支持多点设置的LAN与其他模块进行通信。
>>>>>型号:IC693CPU313 嵌入式 CPU,具有 5 槽底板
【英文介绍】
The GE Fanuc IC693CPU313 is an embedded CPU with a 5-slot backboard, one for each system. The module uses the processor 80188 to achieve a processing speed of 10 MHz. The power required to perform its functions is 5 VDC and the current consumed by the module is 430 mA. This operation of the module takes place in the temperature range from 0°C to 60°C.
The IC693CPU313 provides a maximum user memory of 12 KB for programming, which is allocated in various memory types. The user memory associated with analog input (%AI) and analog output (%AO) is 64 and 32 words, respectively. The module requires 128 bits of memory for system state reference, of which 32 bits are required for each sub-memory type. Memory is also allocated to the 16-word system register (%SR). The register also has a maximum space to store up to 1024 words of data. The memory associated with the internal coil (%M) and the temporary output coil (%T) is 1024 bits and 264 bits, respectively. The main memory in IC63CPU313 is discrete global memory (%G), which is 1280 bits.
Communication with other modules is done via a LAN that supports multiple points. The IC693CPU313 also supports optional modules such as GCM, GCM+, Ethernet, Profibus, FIP, GBC, etc. The memory used in the module is RAM or EPROM. The module can achieve a scan rate of 0.6 ms /1K, and provides a single built-in port to support protocols such as SNP slave and SNP-X slave.
Technical specification
Processor speed: 10 MHZ
I/O count: 160
Register memory: 2KB bytes
Floating point math: No
16-bit system Yes
Processor: 80188
The IC693CPU313 CPU is a 90-30 series GE Fanuc embedded CPU. It is a CPU backplane in which the CPU module is directly embedded. The IC693CPU313 embedded CPU has a processor speed of 10 MHZ, and its processor is the 80188 processor. It's a turbocharged CPU. The backboard of the IC693CPU313 embedded CPU has only five slots for modules (plus one slot on the far left for hosting power only). However, it can be connected to other types of baseboards, such as remote baseboards and expansion baseboards in series 90-30 programmable logic controllers or PLCS, which will provide additional slots for the module. The IC693CPU313 embedded CPU cannot connect to PCM and CCM devices, but it can accommodate most option modules and I/O modules.
GE Fanuc Series 90-30 IC693CPU313 Embedded CPU has only one communication port. This communication port allows the embedded CPU to communicate with other devices via the SNP slave protocol and SNP-X slave protocol. The types of memory that the IC693CPU313 embedded CPU can support include RAM and EPROM or EEPROM for special applications. The ambient operating temperature range for this embedded CPU backplane is 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit. This CPU does not support floating-point math. The 90-30 Series IC693CPU313 embedded CPU consumes 430 mA at 5 volts DC backplane voltage. It can communicate with other modules through a LAN that supports multipoint Settings.
