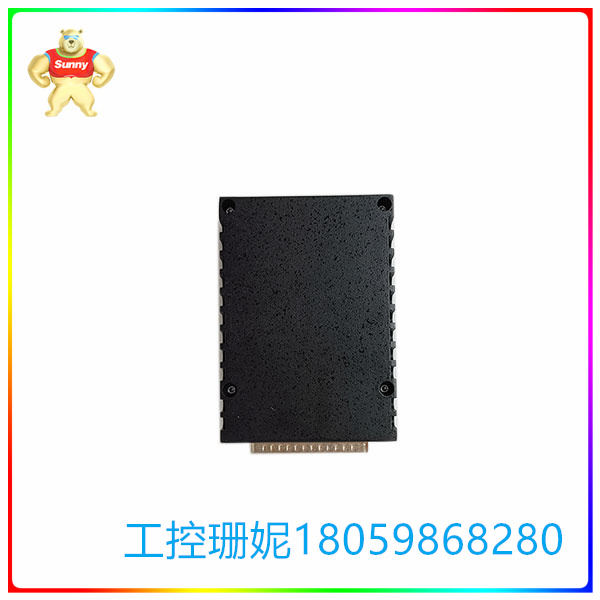

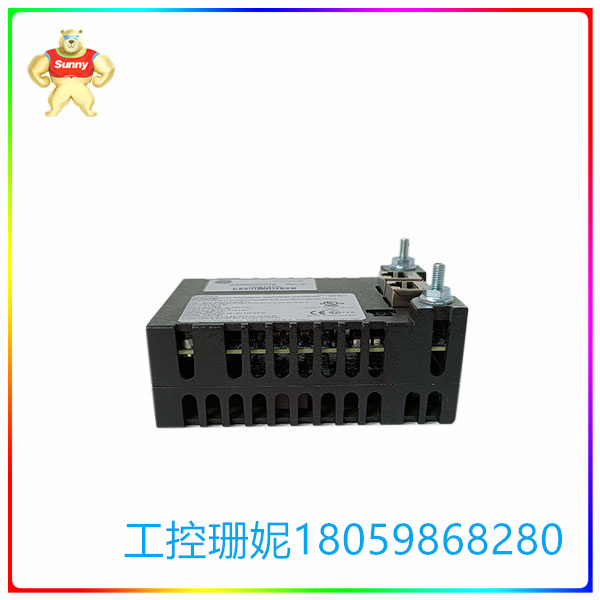

IS220PDIOH1B 离散输入/输出模块 扩展了PDIO包的功能

【产品详情】

什么是IS220PDIOH1B模型？

IS220PDIOH1B模型是离散输入/输出 （I/O） 模块或电池组。它与 ISx0yTDBS2A/TDBSH8A 或 ISx0yTDBTH2A/TDBTH8A一起使用。

与ISx0yTDBS_8A/TDBT_8A附件板相比，PDIOH1A上使用的标准 IS200TDBT/TDBS 板之间有什么区别？

两种模型之间没有极端差异。这些端子板都用于危险应用，并被标记为带有实体参数的本质安全设备。使用两个端子板的危险场所略有不同，但功能相同。

IS220PDIOH1B模型可以在哪些危险场所使用？

IS220PDIOH1B型号可用于 I 类 2 区 A/B/C/D 组、I 类 2 区 IIC 组和 ATEX 2 区 IIC 组。有关所有认证标准，请参阅完整的 GEH-6725 手册了解所有标准。

产品描述

IS220PDIOH1B单元是通用电气 Speedtronic Mark VI/VIe/VIeS 燃气轮机控制模块的离散 I/O 组的一部分，其附件组合经批准可用于危险场所。当IS220PDIOH1B型号在所选系统中运行时，它与多个端子板一起使用;使用的一些端子板标记如下：

ISx0yTDBSH2A

ISx0yTDBSH8A

ISx0yTDBTH2A

ISx0yTDBTH8A

这些端子板扩展了PDIO包的功能，因为以前的PDIO包只能与两个附件端子板一起使用。端子板标记为本质安全设备继电器触点端子板。

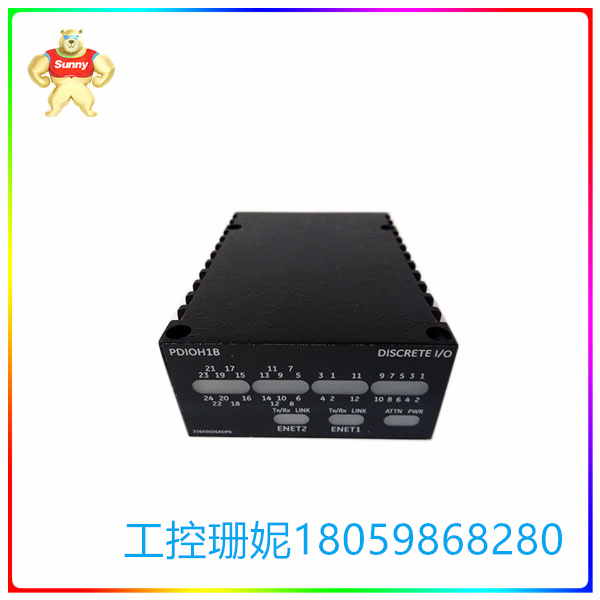

该装置包含两个以太网端口、一个本地处理器和一个数据采集板，用于GE Mark VI Speedtronic系列。2004 年推出的 Mark VIe I/O 包的电子技术已经过时。IS220PDIOH1B 的前面板包括用于设备电源的以太网端口和“attn”LED 的 LED 指示灯。其他 LED 与继电器连接有关。

IS220PDIOH1B 离散输入/输出模块 扩展了PDIO包的功能

【英文介绍】

What is the IS220p DioH1B model?

The IS220PDIOH1B model is a discrete input/output (I/O) module or battery pack. It is used with ISx0yTDBS2A/TDBSH8A or ISx0yTDBTH2A/TDBTH8A.

What is the difference between the standard IS200TDBT/TDBS board used on PDIOH1A compared to the ISx0yTDBS_8A/TDBT_8A attachment board?

There are no extreme differences between the two models. These terminal boards are used in hazardous applications and are marked as intrinsically safe devices with physical parameters. The danger places for using two terminal boards are slightly different, but the functions are the same.

IS220PDIOH1B model can be used in what hazardous sites?

The IS220PDIOH1B model is available for Class I Zone 2 A/B/C/D group, Class I Zone 2 IIC Group and ATEX Zone 2 IIC group. For all certification standards, please refer to the complete GEH-6725 manual for all standards.

Product description

The IS220PDIOH1B unit is part of the discrete I/O group of GE Speedtronic Mark VI/VIe/VIeS gas turbine control modules with a combination of accessories approved for use in hazardous sites. When the IS220P DioH1B model is running in the selected system, it is used with multiple terminal boards; Some of the terminal boards used are marked as follows:

ISx0yTDBSH2A

ISx0yTDBSH8A

ISx0yTDBTH2A

ISx0yTDBTH8A

These terminal boards extend the functionality of the PDIO package, as the previous PDIO package could only be used with two attachment terminal boards. The terminal plate is marked as the relay contact terminal plate of the intrinsic safety device.

The unit contains two Ethernet ports, a local processor and a data acquisition board for the GE Mark VI Speedtronic series. The electronics of the Mark VIe I/O bag, introduced in 2004, are outdated. The front panel of the IS220PDIOH1B includes an Ethernet port for device power and an LED indicator for the "attn" LED. Other leds are related to relay connections.
