IS220PDIAH1A 离散 I/O 包 具有位置标准

【产品详情】

标记为离散 I/O 包的 IS220PDIAH1A 型号也用于 Mark VI 系列和 YDIA 离散输入模块。PDIA 模型可以使用几种不同的相关端子板，其中包括：

IS200TBCIH4C

IS200STCIH1A

IS200STCIH8A

IS200TBCIH2C

IS200TCIH2A

这些型号都与PDIA配合使用，以批准在危险场所使用。在危险环境中使用时，需要特定的认证。认证ULE207685用于非危险、I 类 2 区 IIC 组和 I 类 2 类组 A、B、C 和 D 位置。在 ATEX Zone 2 Group IIC 场所使用时需要特定的认证，该认证为 UL DEMKO 12 ATEX 1114875X。

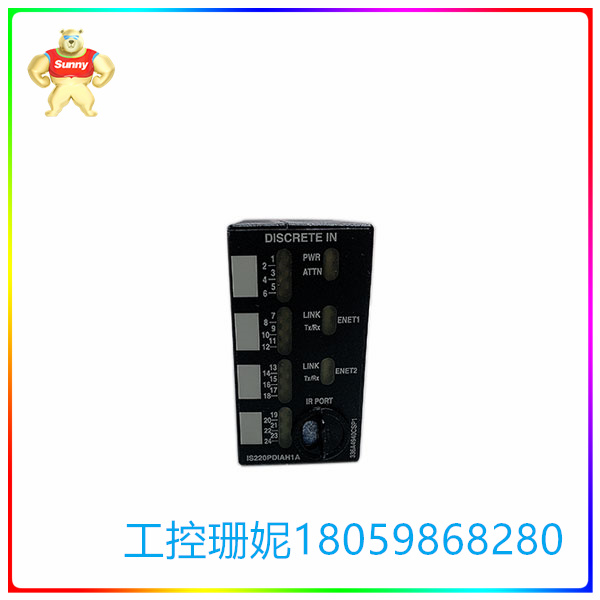

与 Mark VI 系列中的其他型号相比，IS220PDIAH1A 不一定具有特定的面板，因为它是一个 I/O 包。在设备的正面，有七个指示灯，在电池组的右侧，每组三个，电源指示灯和链路指示灯两个，一个指示ENet1，另一个表示ENet2。在这三个指示灯下方，有一个以太网端口，用于将模型连接到以太网，以便于以太网通信。

IS220PDIAH1A包具有位置标准，其中两个是 UL 600790 第 5 版和 UL 60079-15 第 3 版，用于 I 类 2 区 IIC 组。此信息可以在 GEH-6725 Mark VI 控制设备 Hazloc 手册中找到，该手册位于上面的手册选项卡下。

IS220PDIAH1A 离散 I/O 包 具有位置标准

【英文介绍】

The IS220PDIAH1A model, labeled as a discrete I/O package, is also used in the Mark VI series and YDIA discrete input modules. The PDIA model can use several different related terminal boards, including:

IS200TBCIH4C

IS200STCIH1A

IS200STCIH8A

IS200TBCIH2C

IS200TCIH2A

These models are used in conjunction with PDIA for approval for use in hazardous locations. Specific certification is required for use in hazardous environments. Certified ULE207685 for use in non-hazardous, Class I 2 Zone IIC Group and Class I 2 Group A, B, C and D locations. A specific certification is required for use in ATEX Zone 2 Group IIC premises, which is UL DEMKO 12 ATEX 1114875X.

Compared to other models in the Mark VI series, the IS220PDIAH1A does not necessarily have a specific panel, as it is an I/O package. On the front of the device, there are seven indicators, on the right side of the battery pack, three in each group, two power indicators and link indicators, one indicating ENet1 and the other indicating ENet2. Below these three indicators, there is an Ethernet port for connecting the model to Ethernet for easy Ethernet communication.

The IS220PDIAH1A package has location standards, two of which are UL 600790 Version 5 and UL 60079-15 Version 3 for Class I Region 2 IIC groups. This information can be found in the GEH-6725 Mark VI Control Device Hazloc manual, which is located under the Manual TAB above.
