IS215UCVEH2AE 用作VME控制卡 垂直引脚连接器

【产品详情】

该IS215UCVEH2AE是通用电气 Mark VI Speedtronic 控制系统的一个组件。该板用作VME控制卡。VME卡架是Mark VI的标准机架，可作为13槽或21槽机架使用。

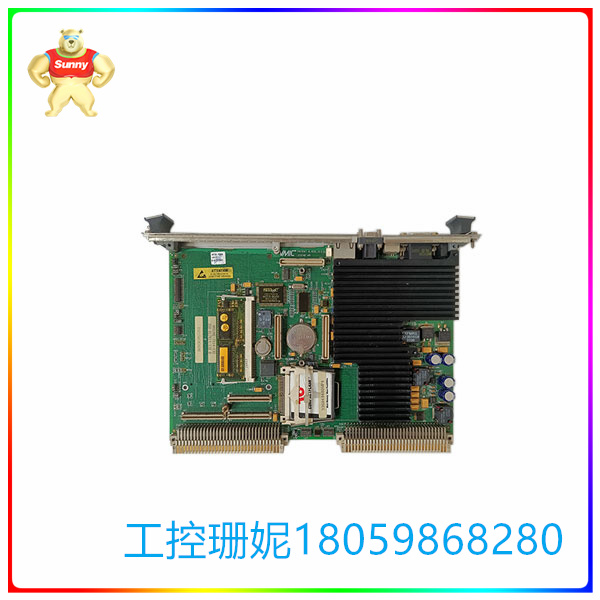

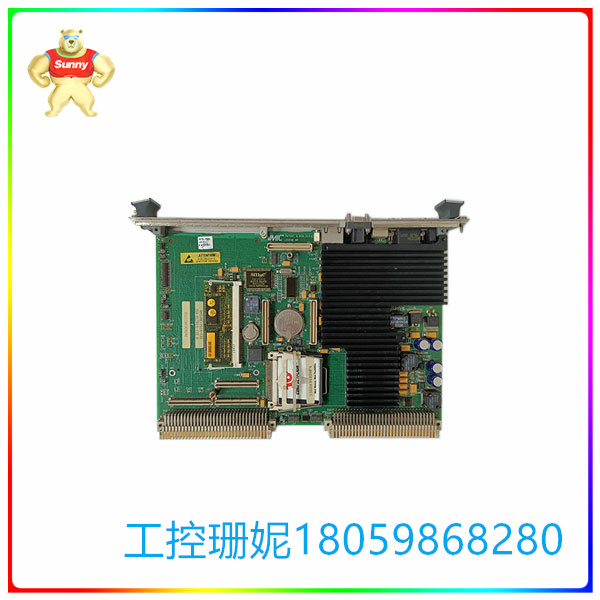

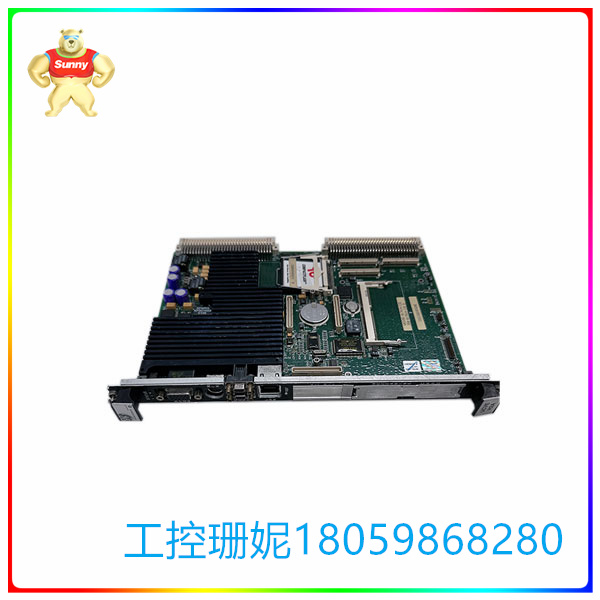

IS215UCVEH2AE是一个带有前面板的矩形板。面板的顶部和底部都有一个固定螺钉，用于在将电路板安装到机架系统后帮助将电路板固定到位。前面板包括一个以太网端口、两个 COM 端口和一个 LAN 端口。它还有一个夹层卡的开口。

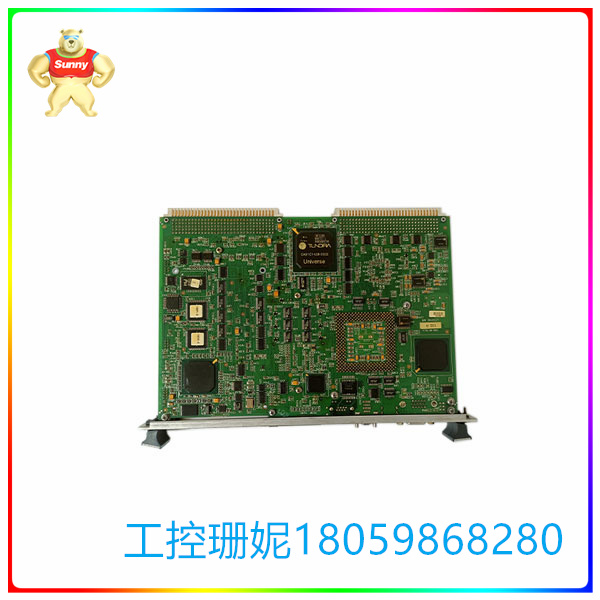

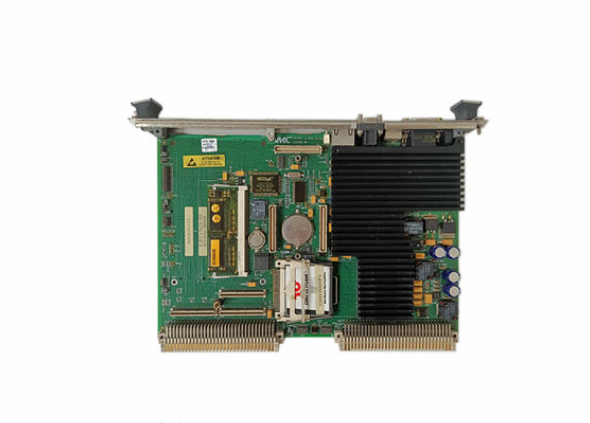

电路板本身包括电路板主体内的垂直引脚连接器和沿电路板边缘的直角引脚连接器。此外，该板还具有多个集成电路、电阻器、电容器、扼流圈和其他组件。此外，在电路板的中心有一个以一定角度安装的小电路板，散热器盖位于电路板的一半以上。

IS215UCVEH2AE 用作VME控制卡 垂直引脚连接器

【英文介绍】

The IS215UCVEH2AE is a component of the General Electric Mark VI Speedtronic control system. The board is used as a VME control card. The VME bracket is the standard Mark VI bracket and can be used as a 13 - or 21-slot rack.

IS215UCVEH2AE is a rectangular board with a front panel. Both the top and bottom of the panel have a set screw to help hold the board in place after mounting it into the rack system. The front panel includes one Ethernet port, two COM ports, and one LAN port. It also has an opening for a sandwich card.

The board itself consists of a vertical pin connector within the board body and a right Angle pin connector along the edge of the board. In addition, the board has multiple integrated circuits, resistors, capacitors, chokes, and other components. In addition, there is a small circuit board mounted at an Angle in the center of the circuit board, and the radiator cap is located more than half of the circuit board.
