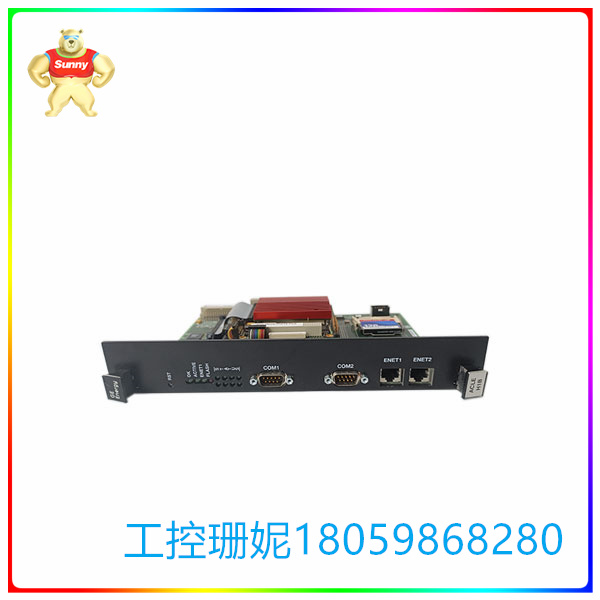

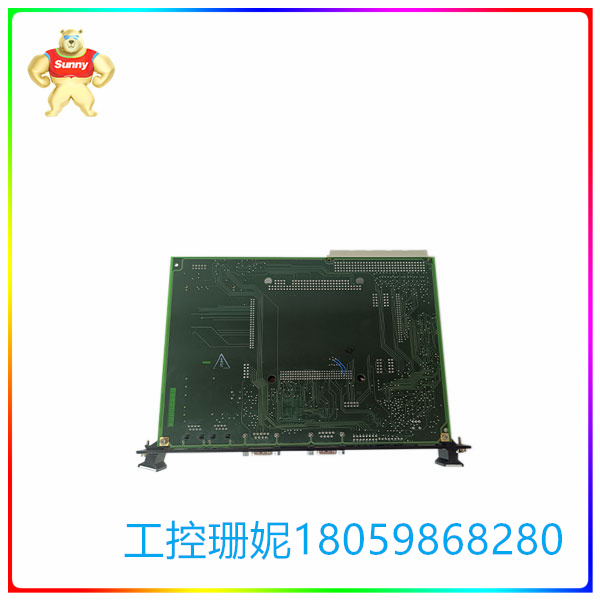

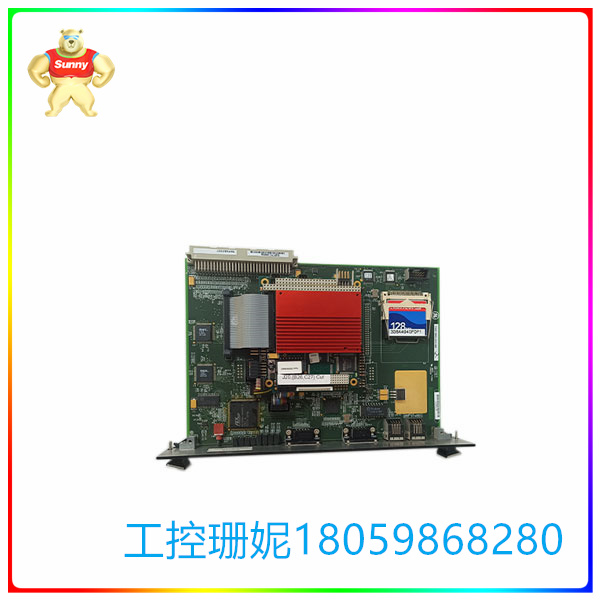

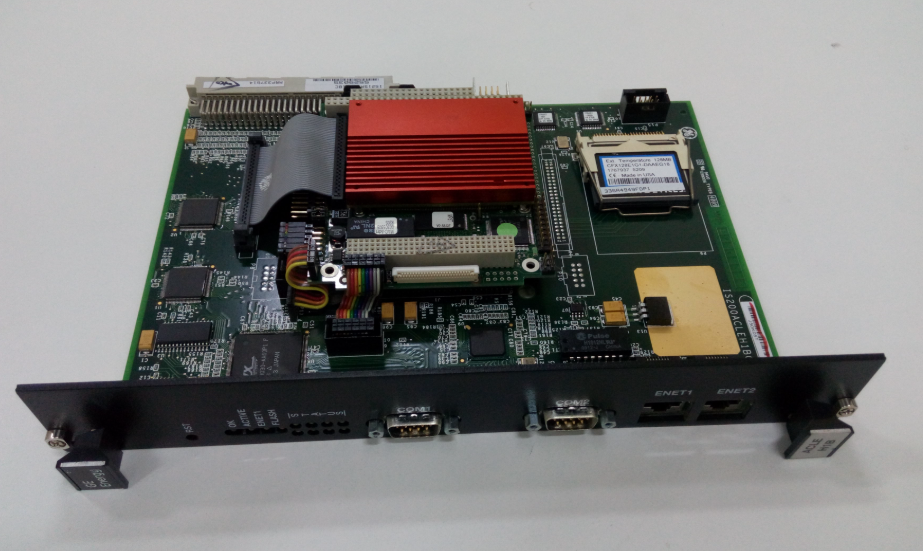

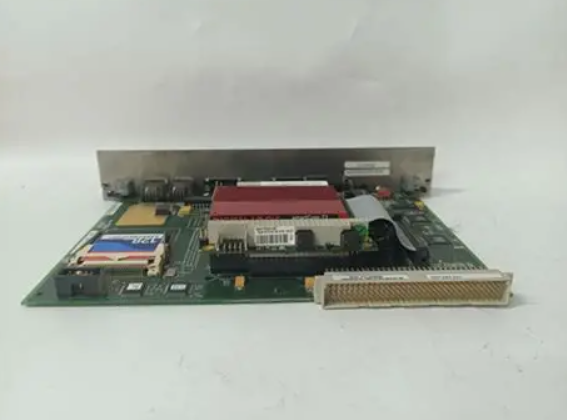

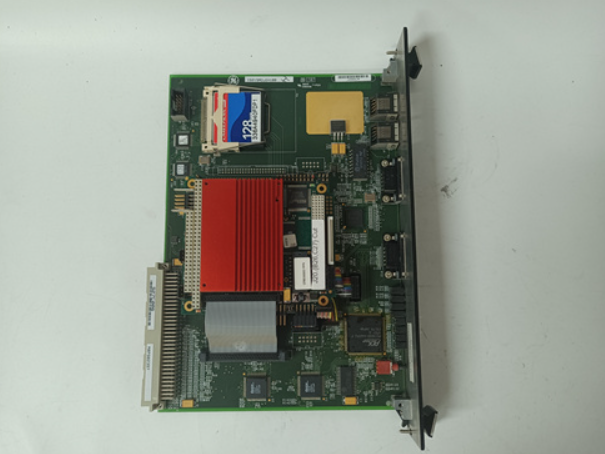

IS215ACLEH1B 应用控制层模块 基于微处理器的控制器

【产品详情】

IS215ACLEH1B型号是 EX2100e 系列的一部分，作为应用控制层模块，通常是基于微处理器的控制器。该板的主要用途是通过通信网络（如 ISBus 和以太网）执行多种不同的任务。安装电路板后，它将占据 EX2100 励磁板机架或创新系列驱动器中的两个半插槽。ACLE板也将位于控制柜内。有许多不同的软件功能，包括但不限于以下内容：

I/O 点和内部布尔强制

创新系列变频器的应用控制

非易失性闪存

在线应用程序配置加载

控制块

IS215ACLEH1B板使用以太网连接，该连接使用由主板上的 BIOS 功能初始化的 IRQ 5。ACLE 板上的以太网连接是位于 ACL 板前面板的 10baseT 或 RJ45 插孔。作为基于微处理器的控制，该板具有外围组件互连 （PCI） 控制器，该控制器将管理不同的输入和输出、与 PCI 总线之间的配置传输以及管理各种存储器功能。

IS215ACLEH1B型号还具有一个 128 KB 的 L2 缓存，该缓存与 PCI 控制器一起使用并由其控制，该缓存设置为 152 NC 缓存行，该行将填充 L1 和 L2 缓存之间的行。ACLE板的另一个特点是闪存设备，该存储设备位于目标接口的本地总线侧，称为设备1，该设备只能以字节模式访问。

IS215ACLEH1B 应用控制层模块 基于微处理器的控制器

【英文介绍】

The IS215ACLEH1B model is part of the EX2100e family as an application control layer module, usually a microprocessor-based controller. The main purpose of the board is to perform a variety of different tasks over communication networks such as ISBus and Ethernet. When the board is installed, it will occupy two and a half slots in the EX2100 exciter frame or Innovation series driver. ACLE board will also be located in the control cabinet. There are many different software features, including but not limited to the following:

I/O points and internal Boolean coercion

Application control of innovative series inverter

Non-volatile flash memory

Online application configuration loading

Control block

The IS215ACLEH1B board uses an Ethernet connection that uses IRQ 5 initialized by the BIOS function on the motherboard. The Ethernet connection on the ACLE board is a 10baseT or RJ45 jack located on the front panel of the ACL board. As a microprocessor-based control, the board has a Peripheral Component Interconnection (PCI) controller that will manage different inputs and outputs, configuration transfers to and from the PCI bus, and manage various memory functions.

The IS215ACLEH1B model also has a 128 KB L2 cache that is used with and controlled by the PCI controller, which is set to 152 NC cache rows that will fill the rows between the L1 and L2 caches. Another feature of the ACLE board is a flash device, a storage device located on the local bus side of the target interface called Device 1, which can only be accessed in byte mode.
