IS200TDBTH6A 分立单工板的器件 涡轮机系统

【产品详情】

IS200TDBTH6A是一种称为分立单工板的器件。这是通用电气或通用电气制造的印刷电路板或 PCB 的一种形式。该IS200TDBTH6A是通用电气用于蒸汽和燃气轮机控制的Mark VI系列的组件设备。该系列是构成 Mark 系列的几个系列之一。这些系统用于控制全球各行各业的涡轮机系统。

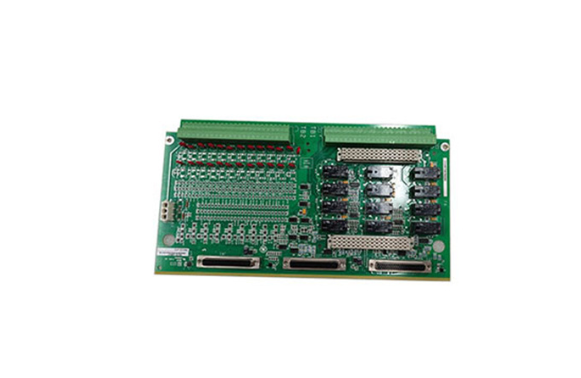

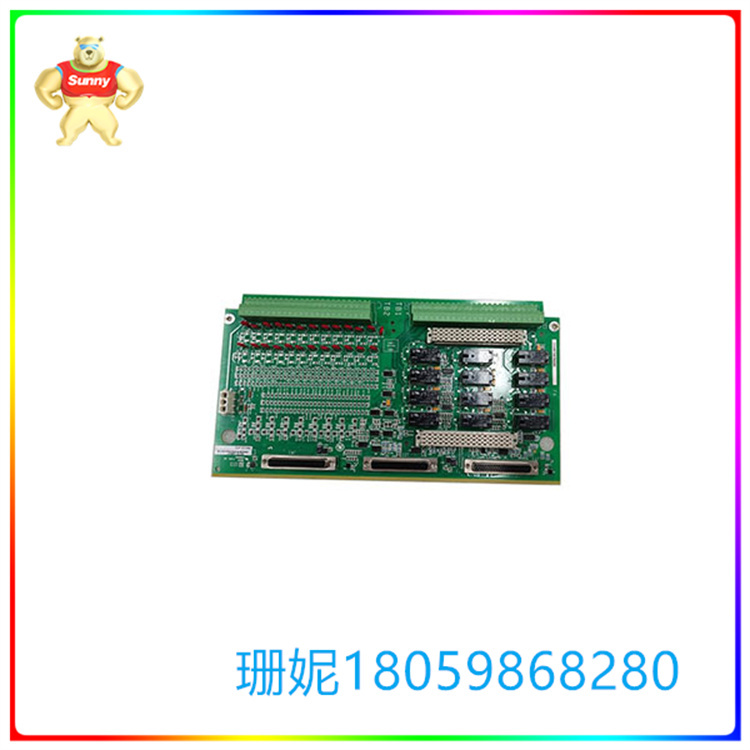

该IS200TDBTH6A突出地具有 12 个大型黑色电位器的集合，这些电位器也称为可变电阻器。电位计排列成三 （3） 个水平行，每个行四个组件。电位计的两侧放置着一个长方形的灰色元件。IS200TDBTH6A的下半部分被几排非常小的组件占据。两 （2） 排长长的圆形红色元件，称为 MOV 或金属氧化物压敏电阻，排列在IS200TDBTH6A的左侧。在靠近中心的IS200TDBTH6A的最底部是一个带有三 （3） 个端口的白色小连接器。此连接可用于将其他设备连接到IS200TDBTH6A。几个小的集成电路可以放置在IS200TDBTH6A的上半部分。其中一些在中心水平排列，其他在右上角垂直对齐。在集成电路的IS200TDBTH6A中心有一 （1） 个黄色小电容器。两 （2） 个黄色小电阻器位于IS200TDBTH6A底部，中间有一 （1） 条黑色条纹。

IS200TDBTH6A 分立单工板的器件 涡轮机系统

【英文介绍】

The IS200TDBTH6A is a device called a discrete simplex board. This is a form of printed circuit board or PCB manufactured by General Electric or GE. The IS200TDBTH6A is a component of GE's Mark VI series for steam and gas turbine control. The series is one of several that make up the Mark series. These systems are used to control turbine systems in a wide range of industries worldwide.

The IS200TDBTH6A features a collection of 12 large black potentiometers, which are also known as variable resistors. The potentiometers are arranged in three (3) horizontal rows of four components each. A rectangular gray element is placed on either side of the potentiometer. The bottom half of the IS200TDBTH6A is occupied by several rows of very small components. Two (2) rows of long round red elements, called MOV or metal oxide varistors, are arranged on the left side of the IS200TDBTH6A. At the very bottom of the IS200TDBTH6A near the center is a small white connector with three (3) ports. This connection can be used to connect other devices to the IS200TDBTH6A. Several small integrated circuits can be placed in the top half of the IS200TDBTH6A. Some of them are aligned horizontally in the center and others are aligned vertically in the upper right corner. There is one (1) small yellow capacitor in the center of the IS200TDBTH6A of the integrated circuit. Two (2) small yellow resistors are located at the bottom of the IS200TDBTH6A with one (1) black stripe in the middle.
